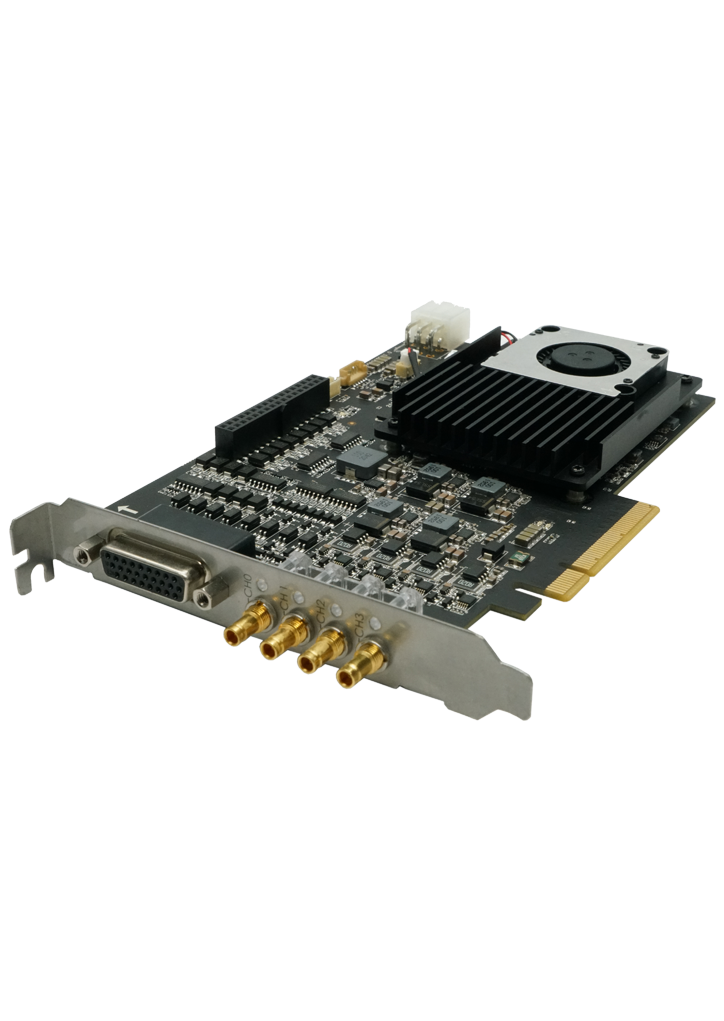

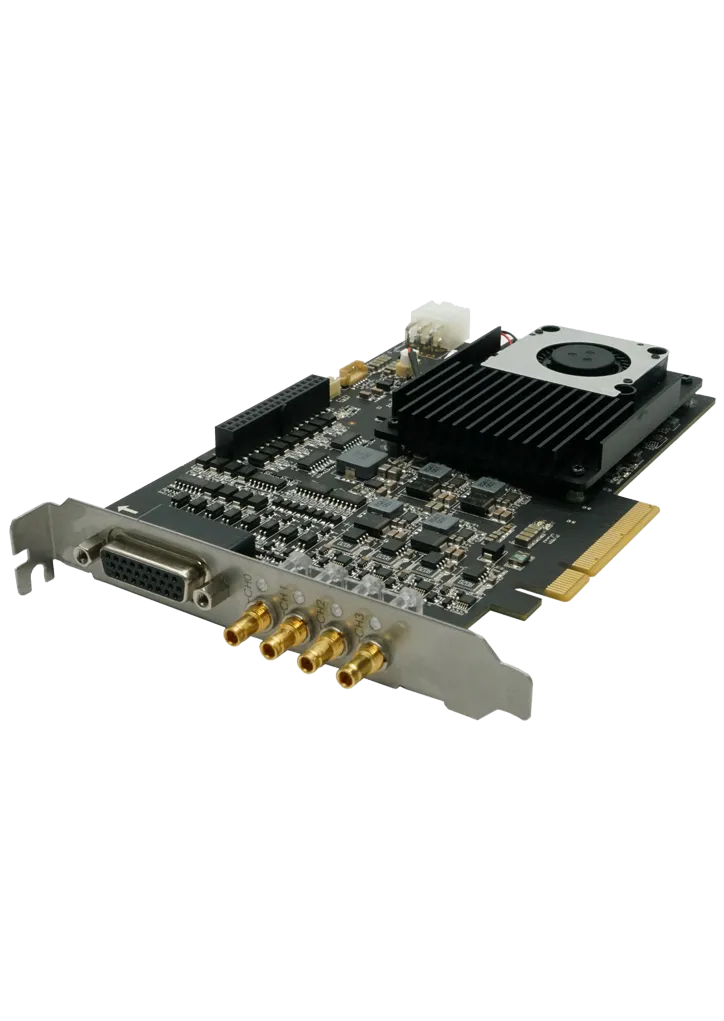

Dual CXP-6 Frame Grabber

Name: Dual CXP-6 Frame Grabber
Brand: HIKROBOT
SKU: MV-GX1002

Supports CXP-6 protocol with each DIN connector accessing up to 6.25 Gbps data transfer speed.

Send inquiry

Download datasheet (PDF)

Highlights

Supports CXP-6 protocol with each DIN connector accessing up to 6.25 Gbps.
PoCXP supported, with up to 13 W per channel.
Indicators show frame-grabber status in real time.
Multiple I/O connectors handle input and output.
Includes an SDK for custom development.
Complies with the GenICam standard.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-GX1002 Category: Vision Components

Dual CXP-6 Frame Grabber is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-GX1002. Key data: certification RoHS, CE, KC. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

PoCXP supported, with up to 13 W per channel. Indicators show frame-grabber status in real time. Multiple I/O connectors handle input and output. Includes an SDK for custom development. Complies with the GenICam standard.

Product Highlights

Supports CXP-6 protocol with each DIN connector accessing up to 6.25 Gbps. — PoCXP supported, with up to 13 W per channel. — Indicators show frame-grabber status in real time. — Multiple I/O connectors handle input and output. — Includes an SDK for custom development. — Complies with the GenICam standard.

Specifications

Product Model	MV-GX1002
Type	Dual CXP-6 Frame Grabber
Certification	RoHS, CE, KC
Interface	DIN 1.0/2.3 × 2
On Board Memory	2 GB DDR3-RAM
Interconnect	PCI-E gen2 × 8
Delivery Bandwidth	3900 MB/s (max. transmission bandwidth) 3350 MB/s (sustained transmission bandwidth)
Standard	CoaXPress 1.0/1.1
Power Output	PoCXP, each channel provides 13 W @ 24 VDC at most
Camera Type Supported	CXP-6 connector industrial camera
Camera Quantity Supported	2 at most
Camera Connection Speed	1.25/2.5/3.125/5/6.25 Gbps (CXP-1/2/3/5/6)
Stream	2
Stream Indicator	2
Pixel Format	Mono 8/10/12/16 Bayer 8/10/12/16 RGB 8
I/O Type	Provides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4
Connector	HD26 female header
Power Consumption	Typ. 13.7 W (without PoCXP)
Dimension	181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
Temperature	Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
Humidity	10% RH to 95% RH (no condensation)
Client Software	MVS
Operating System	Windows 7/10/11, Ubuntu16.04 to 20.04 on Linux
Bus Indicator	1
