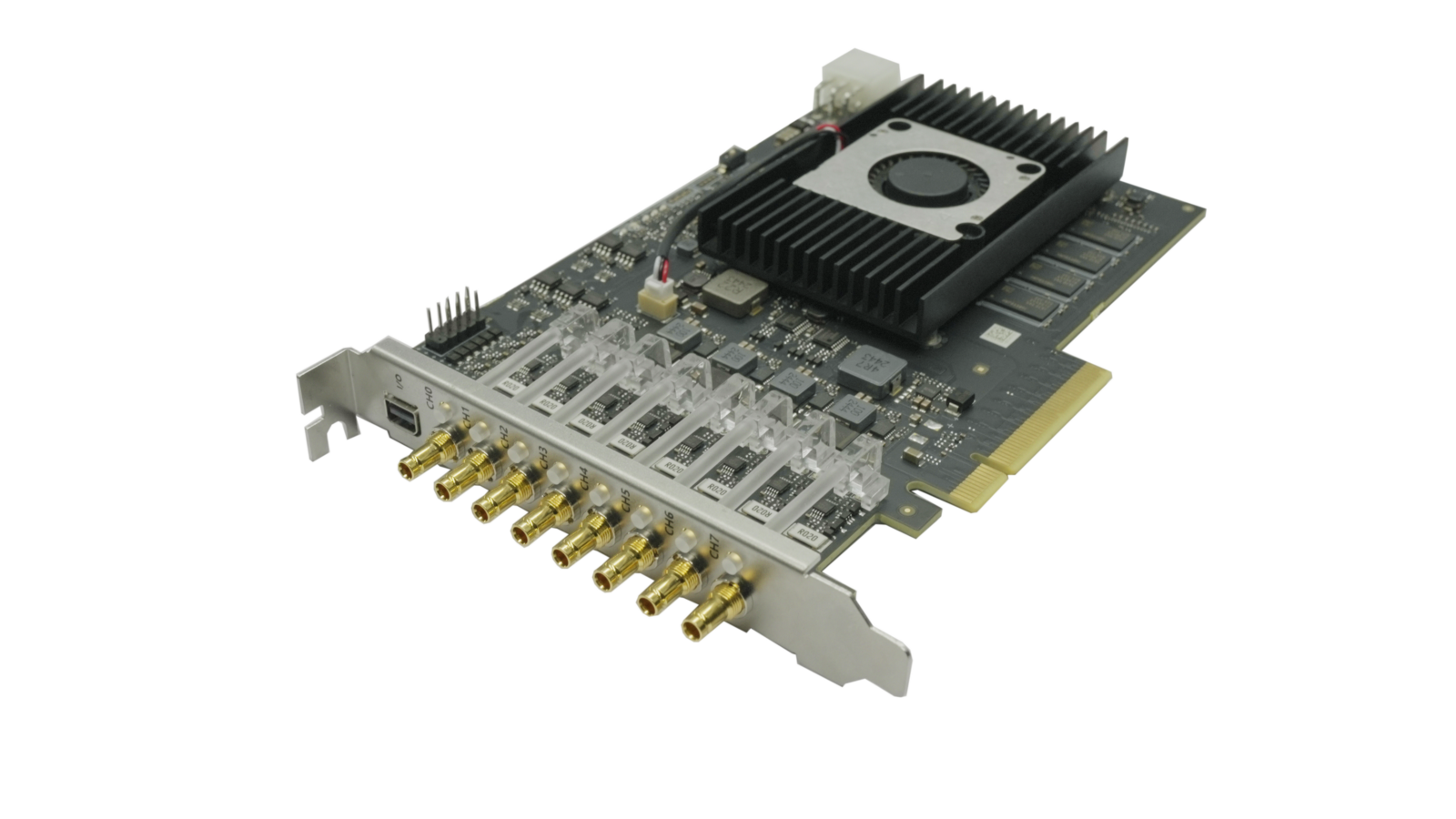

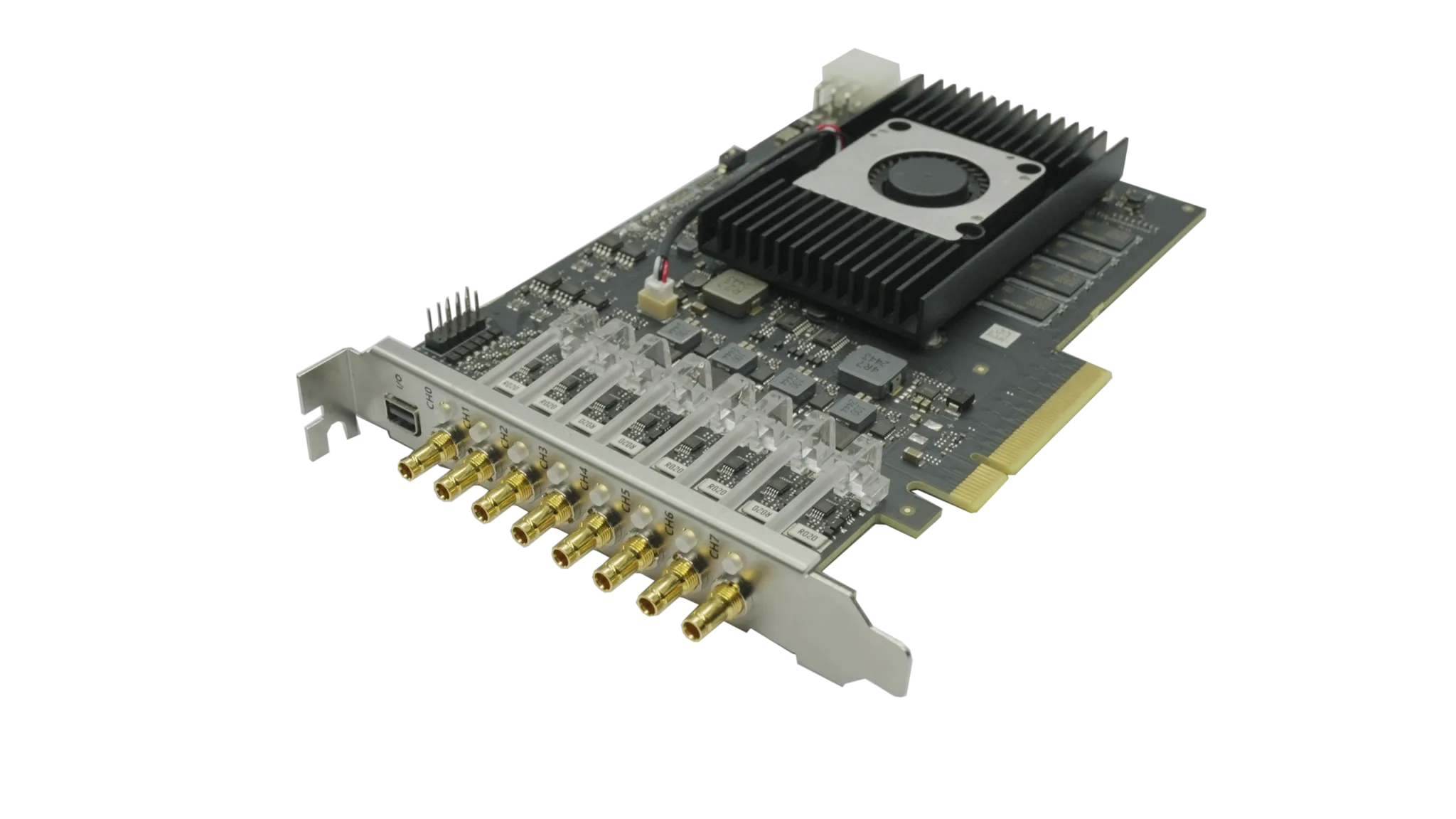

Octo CXP-6 Frame Grabber
Supports CXP-6 protocol with each DIN connector accessing up to 6.25 Gbps data transfer speed.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
PoCXP supported, with up to 13 W per channel. Indicators show frame-grabber status in real time. Multiple I/O connectors handle input and output. Includes an SDK for custom development. Complies with the GenICam standard.
Product Highlights
Supports CXP-6 protocol with each DIN connector accessing up to 6.25 Gbps. — PoCXP supported, with up to 13 W per channel. — Indicators show frame-grabber status in real time. — Multiple I/O connectors handle input and output. — Includes an SDK for custom development. — Complies with the GenICam standard.
Specifications
| Product Model | MV-GX1008 |
|---|---|
| Type | Octo CXP-6 Frame Grabber |
| Certification | RoHS, CE, KC |
| Interface | DIN 1.0/2.3 × 2 |
| On Board Memory | 2 GB DDR3-RAM |
| Interconnect | PCI-E gen2 × 8 |
| Delivery Bandwidth | 3900 MB/s (max. transmission bandwidth) 3350 MB/s (sustained transmission bandwidth) |
| Standard | CoaXPress 1.0/1.1 |
| Power Output | PoCXP, each channel provides 13 W @ 24 VDC at most |
| Camera Type Supported | CXP-6 connector industrial camera |
| Camera Quantity Supported | 2 at most |
| Camera Connection Speed | 1.25/2.5/3.125/5/6.25 Gbps (CXP-1/2/3/5/6) |
| Stream | 2 |
| Stream Indicator | 2 |
| Pixel Format | Mono 8/10/12/16 Bayer 8/10/12/16 RGB 8 |
| I/O Type | Provides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4 |
| Connector | HD26 female header |
| Power Consumption | Typ. 13.7 W (without PoCXP) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client Software | MVS |
| Operating System | Windows 7/10/11, Ubuntu16.04 to 20.04 on Linux |
| Bus Indicator | 1 |
