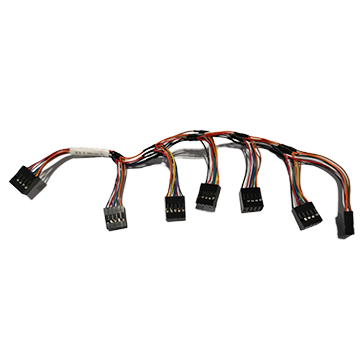

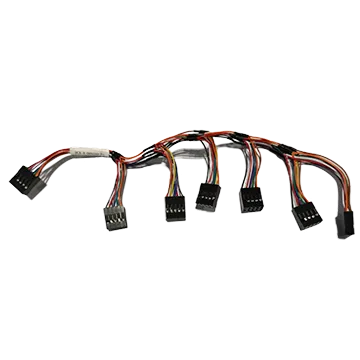

FG I/O expansion cable
The Frame Grabber Internal I/O Casecade Cable (Flexible) can be used for I/O signal wiring of multiple frame grabbers, and can support up to seven interfaces.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
FG I/O expansion cable is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ACP-TJC8x7-FL-0.6m. Key data: certification RoHS. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Power & I/O Cable, P7 6-pin, Female to Open, 60 m (MV-ACP-H6p-open-ST-60m)
- Power & I/O Cable, P7 6-pin, Female to Open, 7 m (MV-ACP-H6p-open-ST-7m)
- Power & I/O Cable, P7 6-pin, Female, Left side to Open, 15 m, High-Flex (MV-ACP-H6p(left)-open-HF-15m)
- Power & I/O Cable, P7 6-pin, Female, Left side to Open, 3 m, High-Flex (MV-ACP-H6p(left)-open-HF-3m)
- Power & I/O Cable, P7 6-pin, Female, Left side to Open, 5 m, High-Flex (MV-ACP-H6p(left)-open-HF-5m)
- Power & I/O Cable, P7 6-pin, Female, Left side to Open, 15 m (MV-ACP-H6p(left)-open-ST-15m)
- Power & I/O Cable, P7 6-pin, Female, Left side to Open, 3 m (MV-ACP-H6p(left)-open-ST-3m)
- Power & I/O Cable, P7 6-pin, Female, Left side to Open, 5 m (MV-ACP-H6p(left)-open-ST-5m)
Product Highlights
Frame Grabber Internal I/O Cascade Cables (Flexible) wire I/O signals across up to seven frame grabbers.
Specifications
| Product Model | MV-ACP-TJC8x7-FL-0.6m |
|---|---|
| Type | FG I/O expansion cable |
| Cable Diameter | 8.5 mm |
| Length | 0.6 m |
| Cable Mechanical | UL1571+28AWG+PVC(70-80P) |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | >100 cycles |
| Applicable Scenario | Static scene |
| Max Voltage | 30 VDC |
| Working Temperature | -20°C ~ 80°C |
| Certification | RoHS |
| Packaging | Individual package |
| Interface | 9-pin Female Header*7 |
