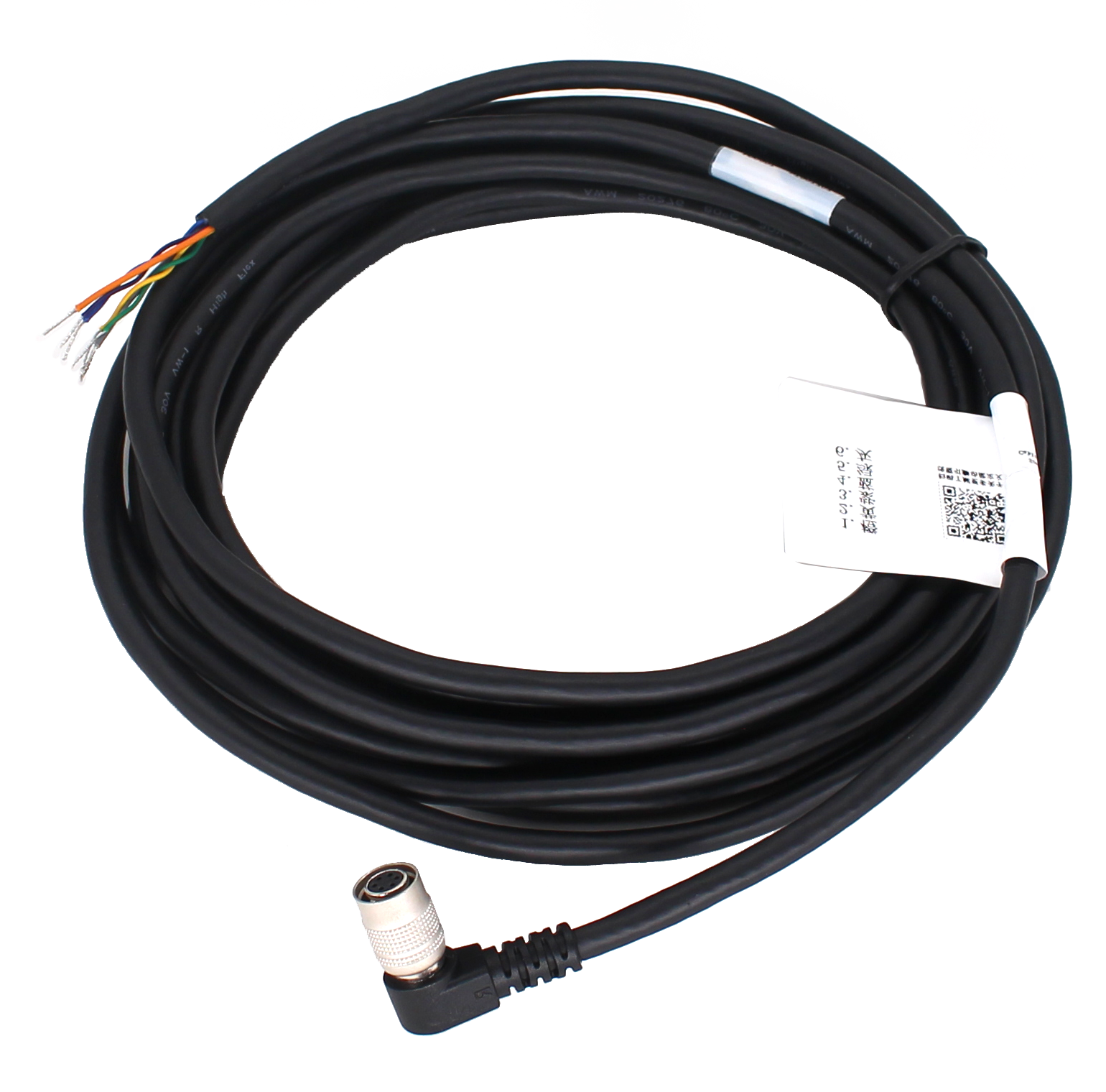

Power & I/O Cable, P7 6-pin, Female, Left side to Open, 5 m, High-Flex
The 6-pin P7 High Flex (Left side) Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Product Highlights
6-pin P7 High Flex Left-Side Power & I/O Cables power the camera and carry I/O signals; available in multiple lengths.
Specifications
| Product Model | MV-ACP-H6p(left)-open-HF-5m |
|---|---|
| Type | Power & I/O Cable, P7 6-pin, Female, Left side to Open, 5 m, High-Flex |
| End A Connector | P7 6-pin,Femal,Left side |
| End B Connector | Open |
| Cable Diameter | 5.5 mm |
| Length | 5 m |
| Cable Mechanical | 2P*28AWG+2C*23AWG+AB |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | ≥ 750 cycles |
| Min Bending Radius | 66 mm |
| Applicable Scenario | Tank chain |
| Max Voltage | 30 VDC |
| Working Temperature | -20°C~80°C |
| Certification | RoHS2.0 |
| Packaging | Individual package |
| Max U Type Bending Cycles | ≥ 5 million times |
| Connector Model | made in China |
