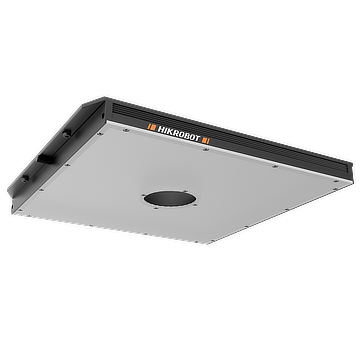

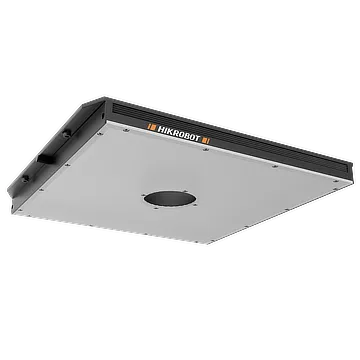

Flat lighting with holeV2.0，50*50，white
Adopts high-density array LED design.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Centre opening (round or square) enables front lighting. Side mounting lugs allow flexible installation.
Product Highlights
Uses a high-density LED array. — Centre opening (round or square) enables front lighting. — Side mounting lugs allow flexible installation.
Specifications
| Product Model | MV-LBES-H-50-50-W2 |
|---|---|
| Type | Flat lighting with holeV2.0，50*50，white |
| Color | White |
| Wavelength | / |
| Color Temperature | 6000 ~ 7000K |
| Power | 2.2 W |
| Connector Type | SMR-03V-B |
| Dimension | 82 mm × 63.2 mm × 19 mm |
| Bore Dimension | 20 mm × 20 mm |
| Weight | 0.2 kg |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | Included |
| Emitting Area Dimension | 50 mm × 50 mm |
| Center Illuminance Irradiance | ≥ 1500 lux@200 mm |
| Input Voltage | 24 VDC |
