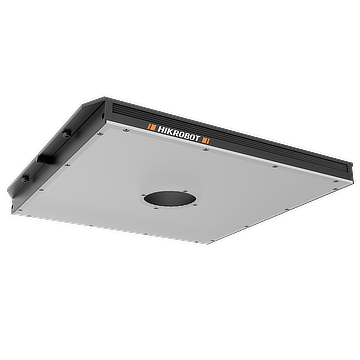

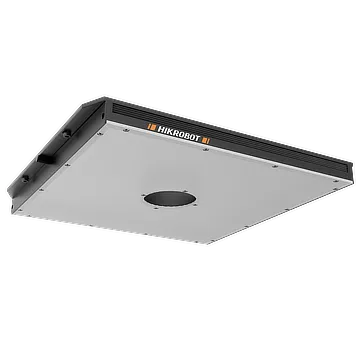

Flat lighting with holeV2.0，600*400，white
Adopts high-density array LED design.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Centre opening (round or square) enables front lighting. Side mounting lugs allow flexible installation.
Product Highlights
Uses a high-density LED array. — Centre opening (round or square) enables front lighting. — Side mounting lugs allow flexible installation.
Specifications
| Product Model | MV-LBES-H-600-400-W2 |
|---|---|
| Type | Flat lighting with holeV2.0，600*400，white |
| Color | White |
| Wavelength | / |
| Color Temperature | 6000 ~ 7000K |
| Power | 194 W |
| Connector Type | Dual-channel 19M-2A |
| Dimension | 676 mm × 430 mm × 25 mm |
| Bore Dimension | Ø 50 mm |
| Weight | 7.2 kg |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | Included |
| Emitting Area Dimension | 600 mm × 400 mm |
| Center Illuminance Irradiance | ≥ 13000 lux@600 mm |
| Input Voltage | 24 VDC |
