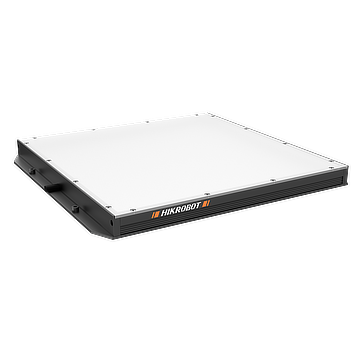

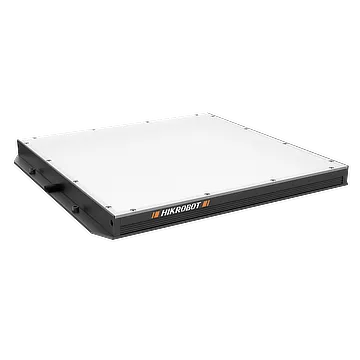

Flat-type lightingV2.0，120×120，blue
Adopts high-density array LED design, and provides excellent lighting uniformity.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Side mounting lugs allow flexible installation.
Product Highlights
A high-density LED array delivers excellent lighting uniformity. — Side mounting lugs allow flexible installation.
Specifications
| Product Model | MV-LBSS-H-120-120-B2 |
|---|---|
| Type | Flat-type lightingV2.0，120x120，blue |
| Color | Blue |
| Wavelength | 470 nm |
| Color Temperature | / |
| Power | 19.5 W |
| Connector Type | SMR-03V-B |
| Dimension | 152 mm × 133 mm × 18 mm |
| Weight | 0.4 kg |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | Included |
| Emitting Area Dimension | 120 mm × 120 mm |
| Center Illuminance Irradiance | ≥ 6000 lux@100 mm |
| Input Voltage | 24 VDC |
| Cooling Mode | Natural cooling |
