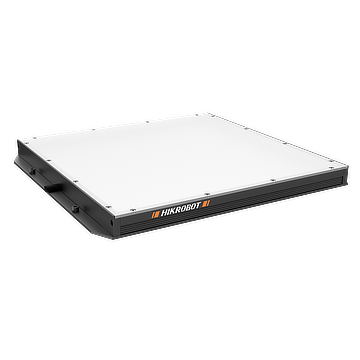

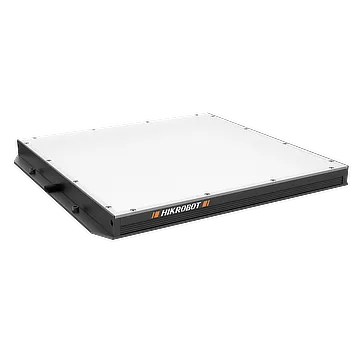

Flat-type lightingV2.0，150×100，blue
Adopts high-density array LED design, and provides excellent lighting uniformity.
Highlights
- A high-density LED array delivers excellent lighting uniformity.
- Side mounting lugs allow flexible installation.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Flat-type lightingV2.0, 150×100, blue is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LBSS-H-150-100-B2. Key data: emitting area dimension 150 mm × 100 mm, color Blue, power 19 W, input voltage 24 VDC. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Flat-type lightingV2.0, 120x120, blue (MV-LBSS-H-120-120-B2)
- Flat-type lightingV2.0, 120x120, red (MV-LBSS-H-120-120-R2)
- Flat lighting, 120x120, white (MV-LBSS-H-120-120-W)
- Flat-type lightingV2.0, 120x120, white (MV-LBSS-H-120-120-W2)
- Flat-type lightingV2.0, 150x100, red (MV-LBSS-H-150-100-R2)
- Flat lighting, 150x100, white (MV-LBSS-H-150-100-W)
- Flat-type lightingV2.0, 150x100, white (MV-LBSS-H-150-100-W2)
- Flat-type lightingV2.0, 150x150, blue (MV-LBSS-H-150-150-B2)
Description
Side mounting lugs allow flexible installation.
Flat-type lightingV2.0，150×100，blue (MV-LBSS-H-150-100-B2) at a glance: Blue light, 470 nm wavelength, 19 W power, 150 mm × 100 mm emitting area, 182 mm × 113 mm × 18 mm outer dimensions, SMR-03V-B connector, 1 m cable and weighs 0.45 kg. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.
Product Highlights
A high-density LED array delivers excellent lighting uniformity. — Side mounting lugs allow flexible installation.
Specifications
| Product Model | MV-LBSS-H-150-100-B2 |
|---|---|
| Type | Flat-type lightingV2.0，150x100，blue |
| Color | Blue |
| Wavelength | 470 nm |
| Color Temperature | / |
| Power | 19 W |
| Connector Type | SMR-03V-B |
| Dimension | 182 mm × 113 mm × 18 mm |
| Weight | 0.45 kg |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | Included |
| Emitting Area Dimension | 150 mm × 100 mm |
| Center Illuminance Irradiance | ≥ 8000 lux@100 mm |
| Input Voltage | 24 VDC |
| Cooling Mode | Natural cooling |
