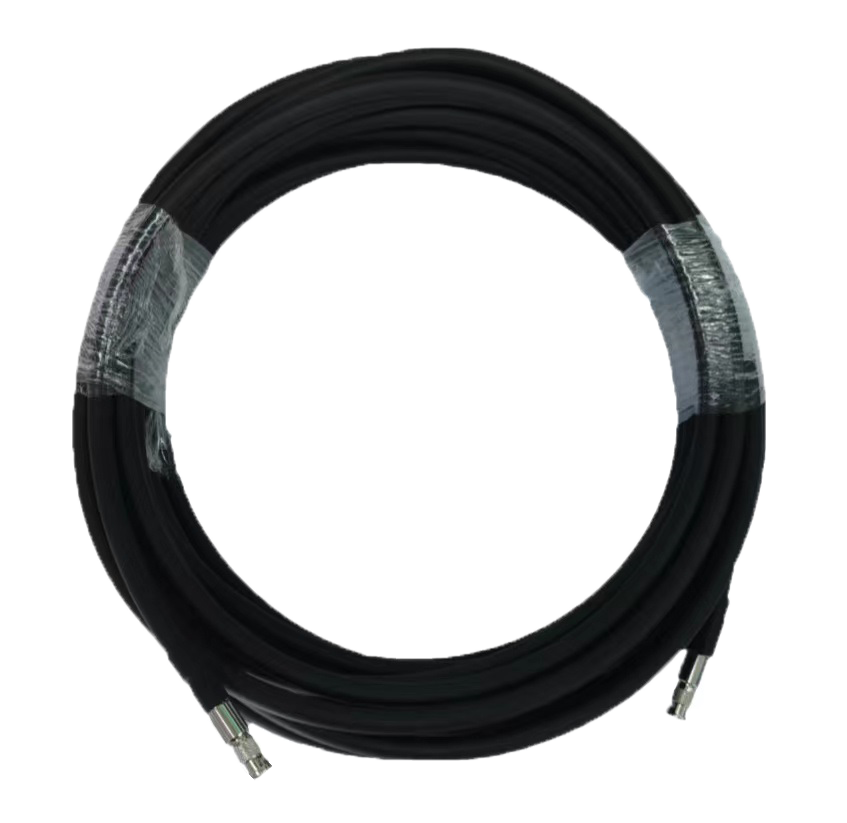

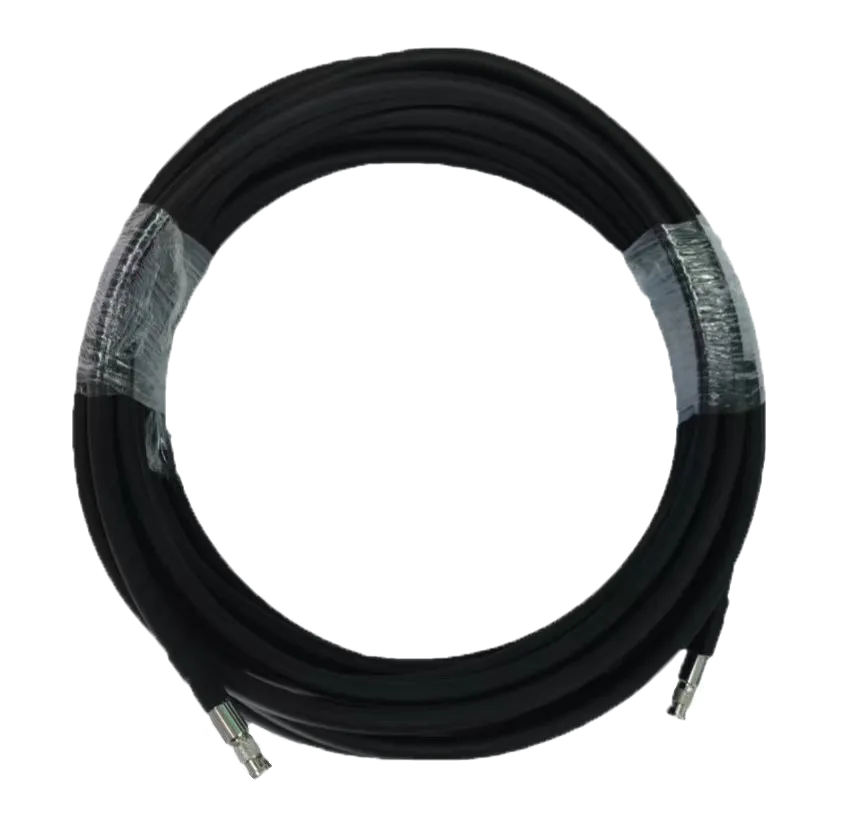

High-flex CXP-12 cable，3m
The CXP-12 high-flex data cable can be used for data transmission of cameras with CoaXPress interface, and is available in a variety of lengths.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
High-flex CXP-12 cable, 3m is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ACXP12-HDBNC-HDBNC-HF-3m. Key data: certification RoHS, UL. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- High-flex CXP-12 cable, 10m (MV-ACXP12-HDBNC-HDBNC-HF-10m)
- High-flex CXP-12 cable, 5m (MV-ACXP12-HDBNC-HDBNC-HF-5m)
- CoaXPress Cable, HD-BNC to HD-BNC, 10 m (MV-ACXP12-HDBNC-HDBNC-ST-10m)
- CoaXPress Cable, HD-BNC to HD-BNC, 3 m (MV-ACXP12-HDBNC-HDBNC-ST-3m)
- CoaXPress Cable, HD-BNC to HD-BNC, 5 m (MV-ACXP12-HDBNC-HDBNC-ST-5m)
Product Highlights
CXP-12 High Flex Data Cables carry CoaXPress data; available in multiple lengths.
Specifications
| Product Model | MV-ACXP12-HDBNC-HDBNC-HF-3m |
|---|---|
| Type | High-flex CXP-12 cable，3m |
| End A Connector | HD-BNC |
| End B Connector | HD-BNC |
| Cable Diameter | 5 mm |
| Length | 3 m |
| Cable Mechanical | Coaxial |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | 500 mating cycles |
| Min Bending Radius | 60 mm |
| Applicable Scenario | Drag chain |
| Max Voltage | 300 VDC |
| Working Temperature | –30 °C to 80 °C (–22 °F to 176 °F) |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Max U Type Bending Cycles | 2 million times |
