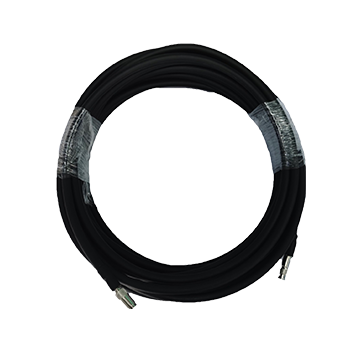

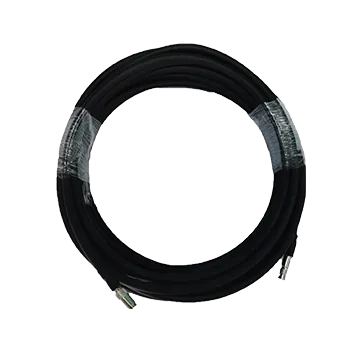

High-flex CXP-6 cable(Din-HDBNC), 5m

Name: High-flex CXP-6 cable(Din-HDBNC), 5m
Brand: HIKROBOT
SKU: MV-ACXP6-DIN-HDBNC-HF-5m

The CXP-6 High Flex Data Cable can be used for data transmission of CoaxPress interface cameras, and is available in a variety of lengths.

Send inquiry

Download datasheet (PDF)

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-ACXP6-DIN-HDBNC-HF-5m Category: Vision Components

High-flex CXP-6 cable(Din-HDBNC), 5m is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ACXP6-DIN-HDBNC-HF-5m. Key data: certification RoHS、UL. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Product Highlights

CXP-6 High Flex Data Cables carry CoaXPress data and are available in multiple lengths.

Specifications

Product Model	MV-ACXP6-DIN-HDBNC-HF-5m
Type	High-flex CXP-6 cable(Din-HDBNC), 5m
End A Connector	DIN 1.0/2.3
End B Connector	HD-BNC
Cable Diameter	5 mm
Length	5 m
Cable Mechanical	Coaxial
Jacket	PVC
Cable Color	Black
Connector Durability	500 cycles
Min Bending Radius	60 mm
Applicable Scenario	Tank chain
Max Voltage	300 VDC
Working Temperature	-30°C-80°C
Certification	RoHS、UL
Packaging	Individual package
Max U Type Bending Cycles	2 million times
