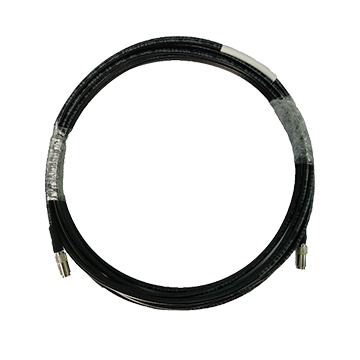

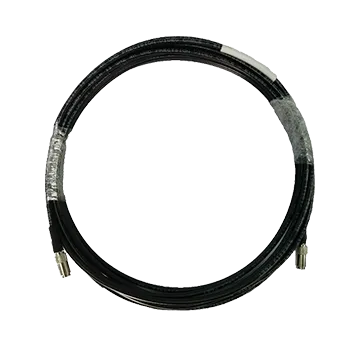

CoaXPress Cable, DIN 1.0/2.3 to DIN 1.0/2.3, 3 m
The CXP-6 Standard Data Cable can be used for data transmission of CoaxPress interface cameras, and is available in a variety of lengths.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Product Highlights
CXP-6 Standard Data Cables carry CoaXPress data and are available in multiple lengths.
Specifications
| Product Model | MV-ACXP6-DIN-DIN-ST-3m |
|---|---|
| Type | CoaXPress Cable, DIN 1.0/2.3 to DIN 1.0/2.3, 3 m |
| End A Connector | DIN 1.0/2.3 |
| End B Connector | DIN 1.0/2.3 |
| Cable Diameter | 4 mm |
| Length | 3 m |
| Cable Mechanical | Coaxial |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | 500 cycles |
| Min Bending Radius | 60 mm |
| Applicable Scenario | Static scenes |
| Max Voltage | 300 VDC |
| Working Temperature | -30°C-75°C |
| Certification | UL,CMR |
| Packaging | Individual package |
