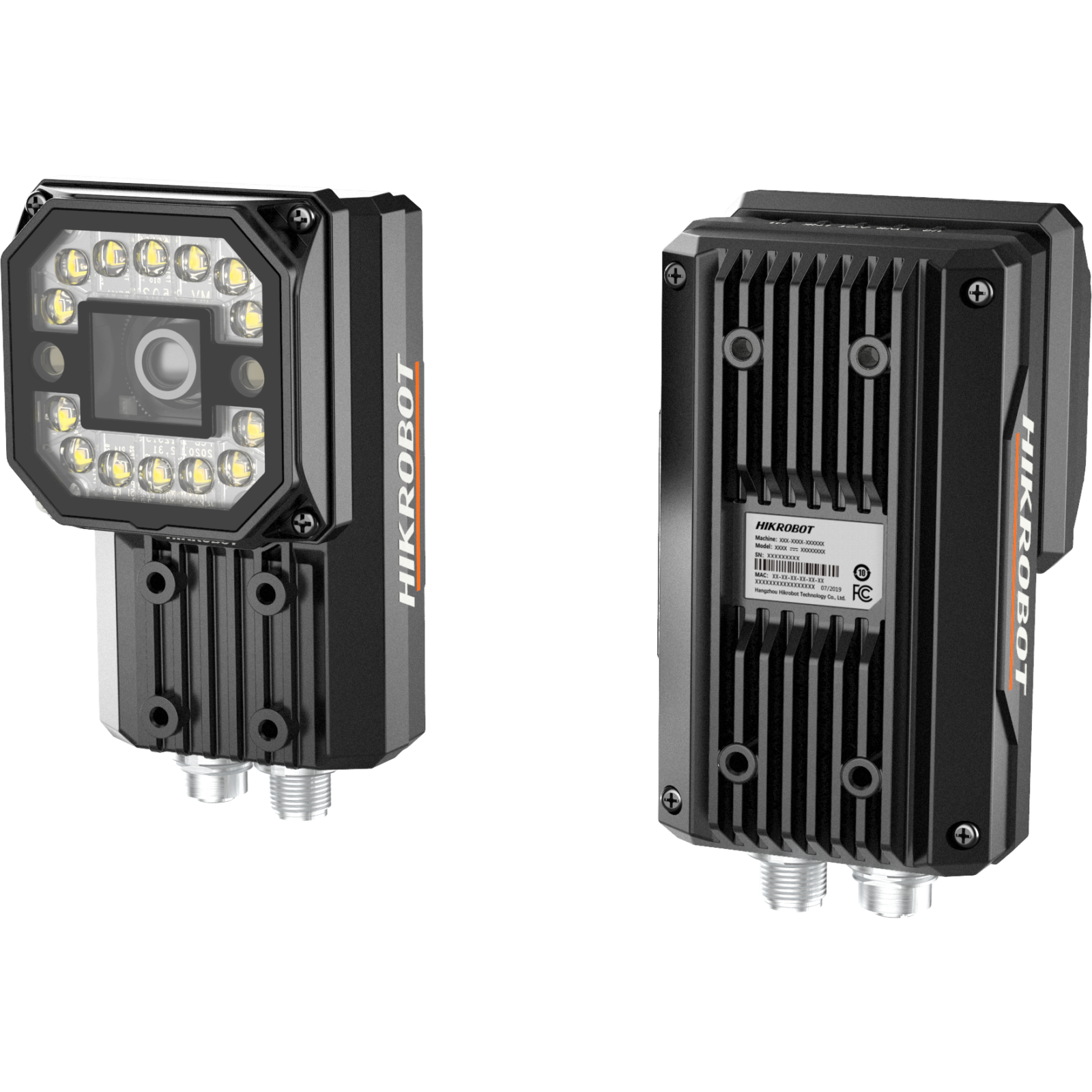

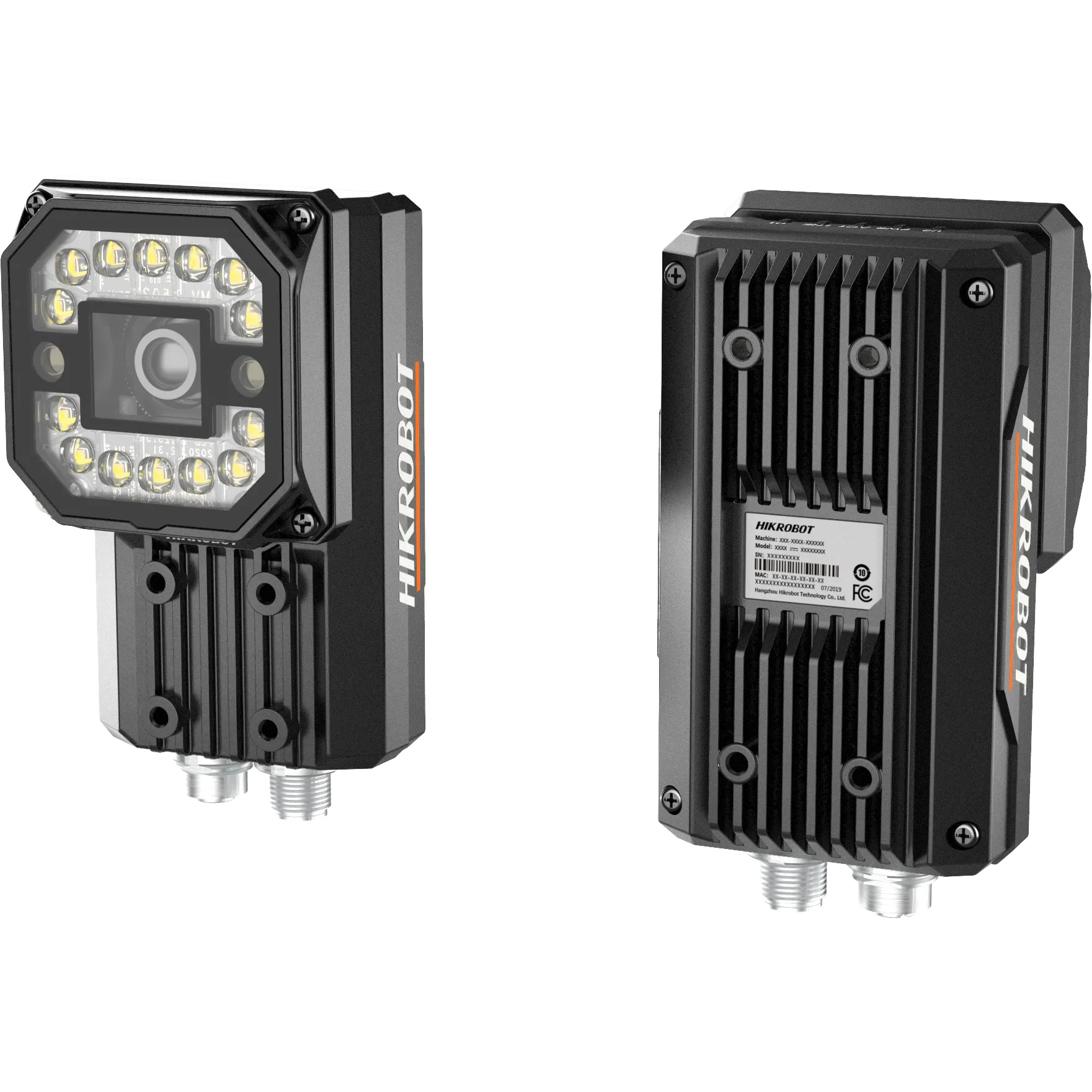

Industrial Code Reader, ID5000 Series 4.2MP, 25mm, white lighting
Adopts built-in deep learning algorithm to read codes with good robustness.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
A global-shutter CMOS sensor delivers high-quality images. A mechanical autofocus lens focuses automatically. Scores and grades print quality for codes. Controllable light source provides varied lighting. Rated IP67 against dust and water.
Product Highlights
A built-in deep-learning algorithm reads codes robustly. — A global-shutter CMOS sensor delivers high-quality images. — A mechanical autofocus lens focuses automatically. — Scores and grades print quality for codes. — Controllable light source provides varied lighting. — Rated IP67 against dust and water.
Specifications
| Product Model | MV-ID5050M-25S-WBN |
|---|---|
| Type | Industrial Code Reader, ID5000 Series 4.2MP, 25mm, white lighting |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, and Industrial 25 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417 |
| Max Frame Rate | 40 fps |
| Max Reading Speed | 90 codes/sec |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 3.2 μm × 3.2 μm |
| Sensor Size | 1/1.7" |
| Resolution | 2560 × 2048 |
| Exposure Time | 60 μs to 1 sec |
| Gain | 0 dB to 18 dB |
| Mono Color | Mono |
| Communication Protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP |
| Data Interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. |
| Power Supply | 24 VDC |
| Max Power Consumption | 60 W @ 24 VDC (light source enabled) |
| Focal Length | 25 mm |
| Lens Mount | M12-mount, mechanical autofocus supported. |
| Light Source | White light by default. Red/blue/IR light is optional. |
| Indicator | Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2). |
| Dimension | 112.5 mm × 65.5 mm × 63.3 mm (4.4" × 2.6" × 2.5") |
| Weight | Approx. 450 g (1.0 lb.) |
| Ingress Protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | IDMVS |
| Certification | CE, RoHS, KC |
| Lens Cap | Half polarization lens cap by default. Transparent and full polarization lens cap are optional. |
