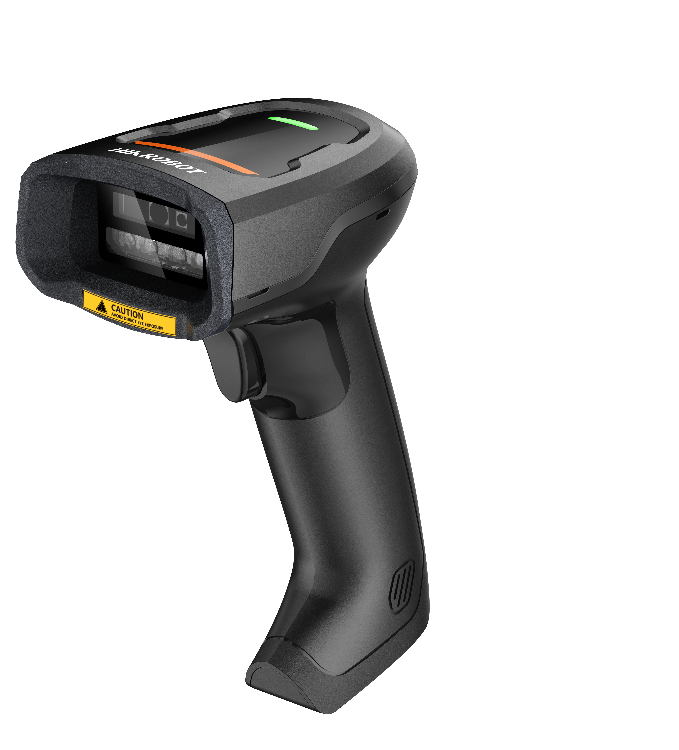

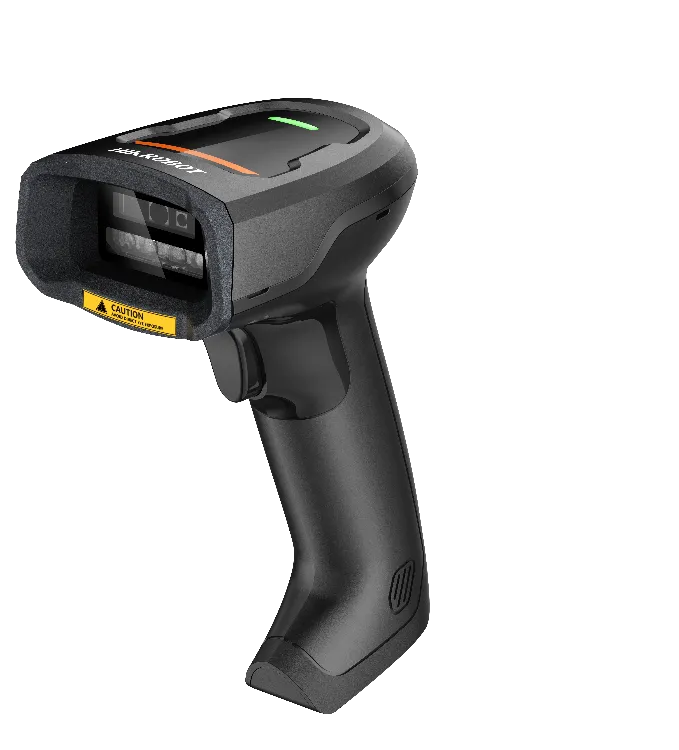

Industial Wired Handheld Code Reader
Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.
Camera Solutions
Beschreibung
Reads reliably even with spots, defects, or low contrast. Switchable white, red, and blue light with three-colour polling for greater scene adaptability and better code-reading performance. Multiple output modes including USB-HID, USB-CDC, and RS-232. Components are easy to replace. Rated IP42 and survives a 1.8 m drop. Buzzer and indicator display device status.
Product Highlights
A built-in algorithm decodes a range of 1D and 2D codes. — Reads reliably even with spots, defects, or low contrast. — Switchable white, red, and blue light with three-colour polling for greater scene adaptability and better code-reading performance. — Multiple output modes including USB-HID, USB-CDC, and RS-232. — Components are easy to replace. — Rated IP42 and survives a 1.8 m drop. — Buzzer and indicator display device status.
Specifications
| Product Model | MV-IDH2000P/13NR/05RN/U |
|---|---|
| Type | Industial Wired Handheld Code Reader |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
| Min Accuracy | 1D codes: 3 mil 2D codes: 4 mil |
| Sensor Type | CMOS |
| Resolution | 1280 × 1024 |
| Depth Of Field | Code 128 (3 mil): 30 mm to 105 mm Code 128 (10 mil): 20 mm to 200 mm Data Matrix (5 mil): 40 mm to 80 mm QR Code (10 mil): 20 mm to 135 mm QR Code (20 mil): 20 mm to 195 mm |
| Field Of View | Horizontal 39°, vertical 29° |
| Detection Angle | Tilt angle ± 65°, skew angle ± 65°, rotation angle 360° |
| Symbol Contrast | 20% |
| Communication Protocol | SmartSDK, Serial, USB (HID/CDC) |
| Data Interface | USB 2.0 |
| Power Supply | 5 VDC |
| Current Consumption | 0.9 A (max.), 0.5 A (typical) |
| Ambient Illumination | 0 lux to 100000 lux |
| Light Source | White LED, red LED, blue LED |
| Aiming System | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress Protection | IP42 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Laser Safety Class | Laser 2 |
| Wavelength | 650 nm |
| Pulse Width | 15 ms |
| Maximum Power | 1 mW |
| Client Software | IDMVS |
| Certification | CE, KC |
