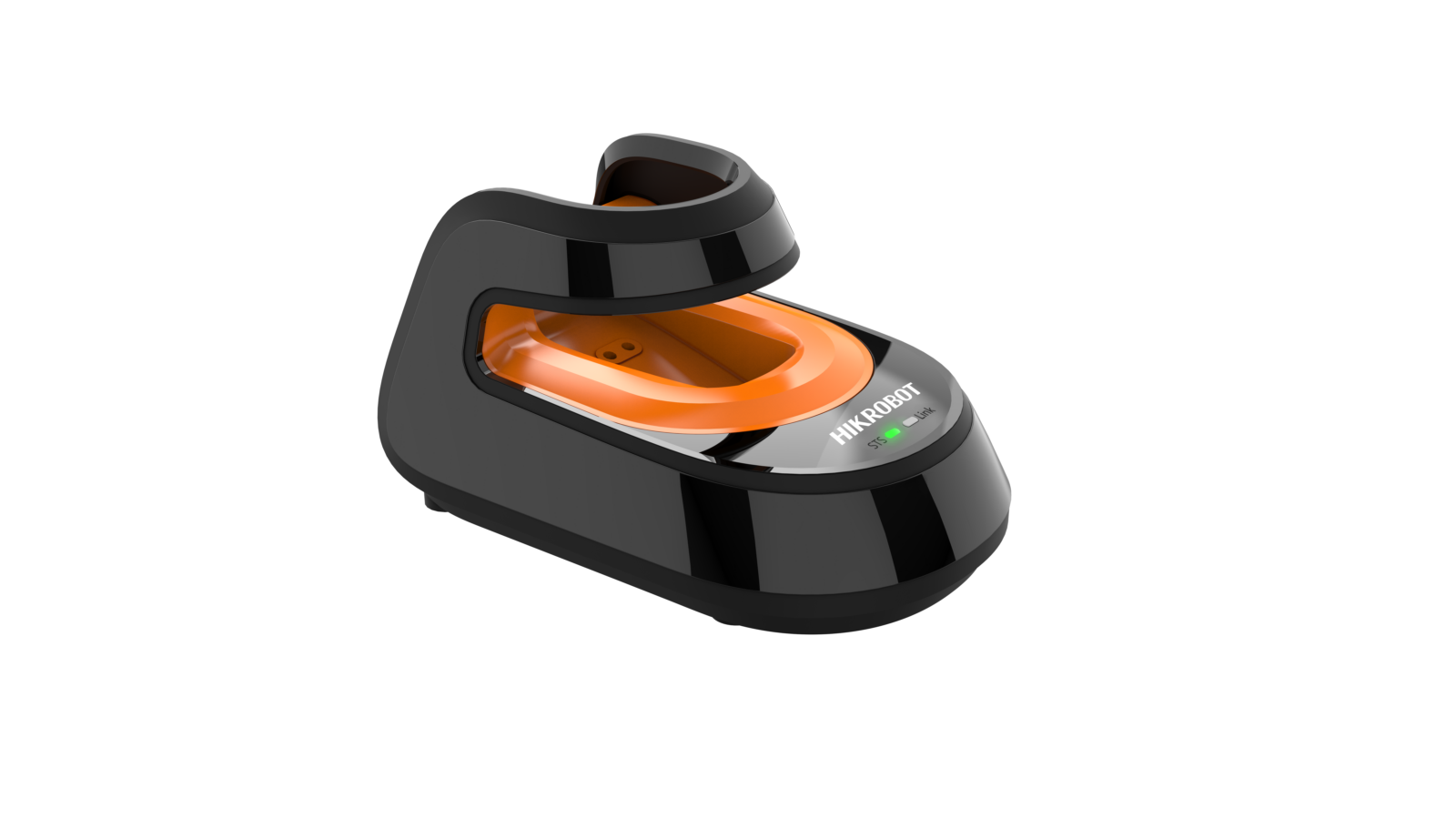

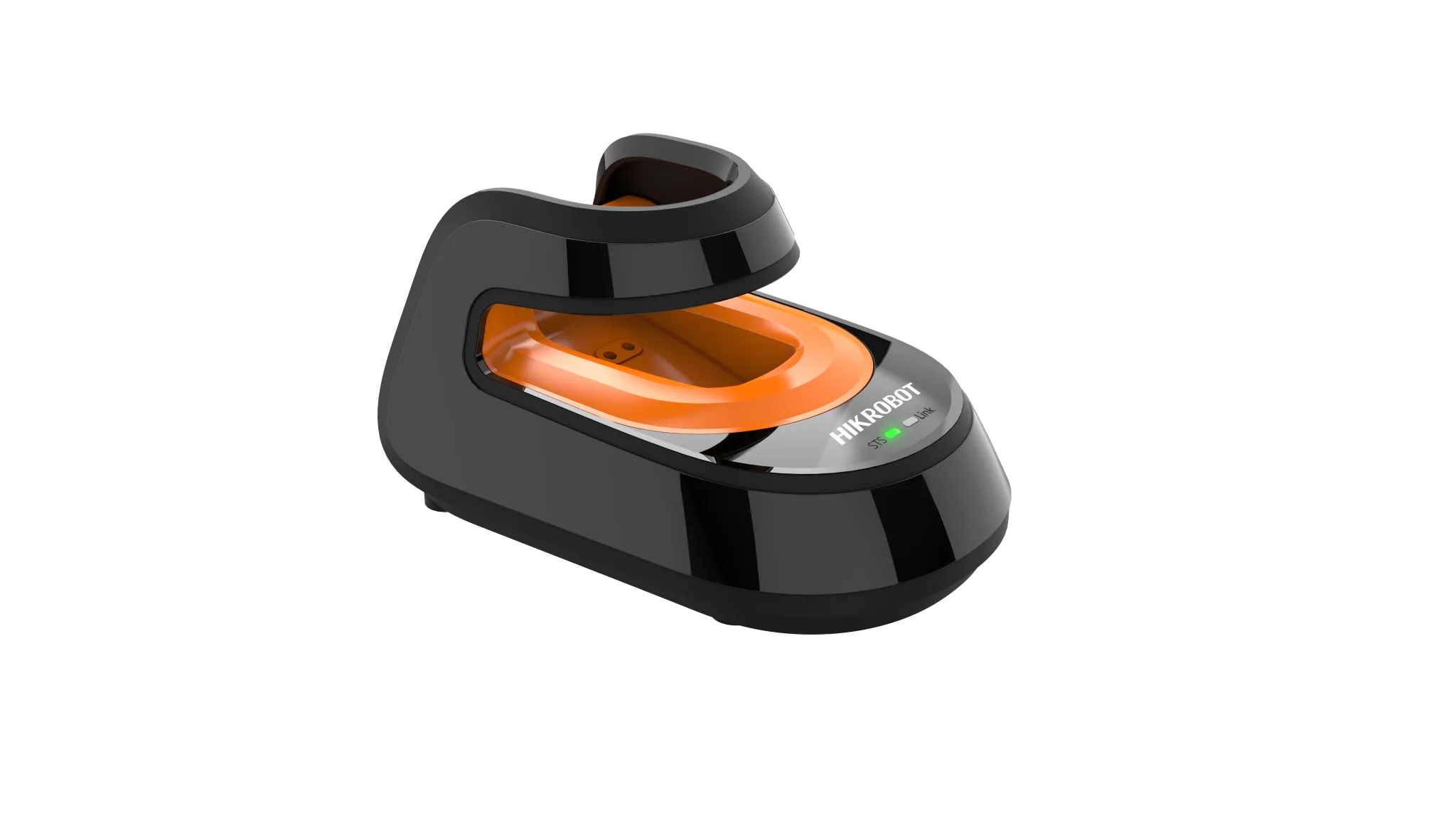

IDH2000 series Wireless Handheld Code Reader Charge Base

Name: IDH2000 series Wireless Handheld Code Reader Charge Base
Brand: HIKROBOT
SKU: MV-IDH2000B/CBASE/U

Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.

Send inquiry

Download datasheet (PDF)

Highlights

A built-in algorithm decodes a range of 1D and 2D codes.
Reads reliably even with spots, defects, or low contrast.
Continuous and batch reading modes raise throughput.
Wireless communication via Bluetooth.
A 2700 mAh battery gives long standby time.
Rated IP40 and survives a 1.8 m drop.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-IDH2000B/CBASE/U Category: Handheld Code Reader

IDH2000 series Wireless Handheld Code Reader Charge Base is a handheld code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-IDH2000B/CBASE/U. Key data: ingress protection IP40. Typical use is manual scanning in production, warehouse and service. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Reads reliably even with spots, defects, or low contrast. Continuous and batch reading modes raise throughput. Wireless communication via Bluetooth. A 2700 mAh battery gives long standby time. Rated IP40 and survives a 1.8 m drop.

Product Highlights

A built-in algorithm decodes a range of 1D and 2D codes. — Reads reliably even with spots, defects, or low contrast. — Continuous and batch reading modes raise throughput. — Wireless communication via Bluetooth. — A 2700 mAh battery gives long standby time. — Rated IP40 and survives a 1.8 m drop.

Specifications

Product Model	MV-IDH2000B/CBASE/U
Type	IDH2000 series Wireless Handheld Code Reader Charge Base
Data Interface	USB 2.0 (Type B), USB 2.0 (Type A)
Power Supply	5 VDC
Current Consumption	1.5 A (max.), 0.01 A (during standby)
Dimension	82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0")
Weight	Approx. 120 g (0.3 lb.)
Ingress Protection	IP40
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	5% RH to 95% RH (no condensation)
