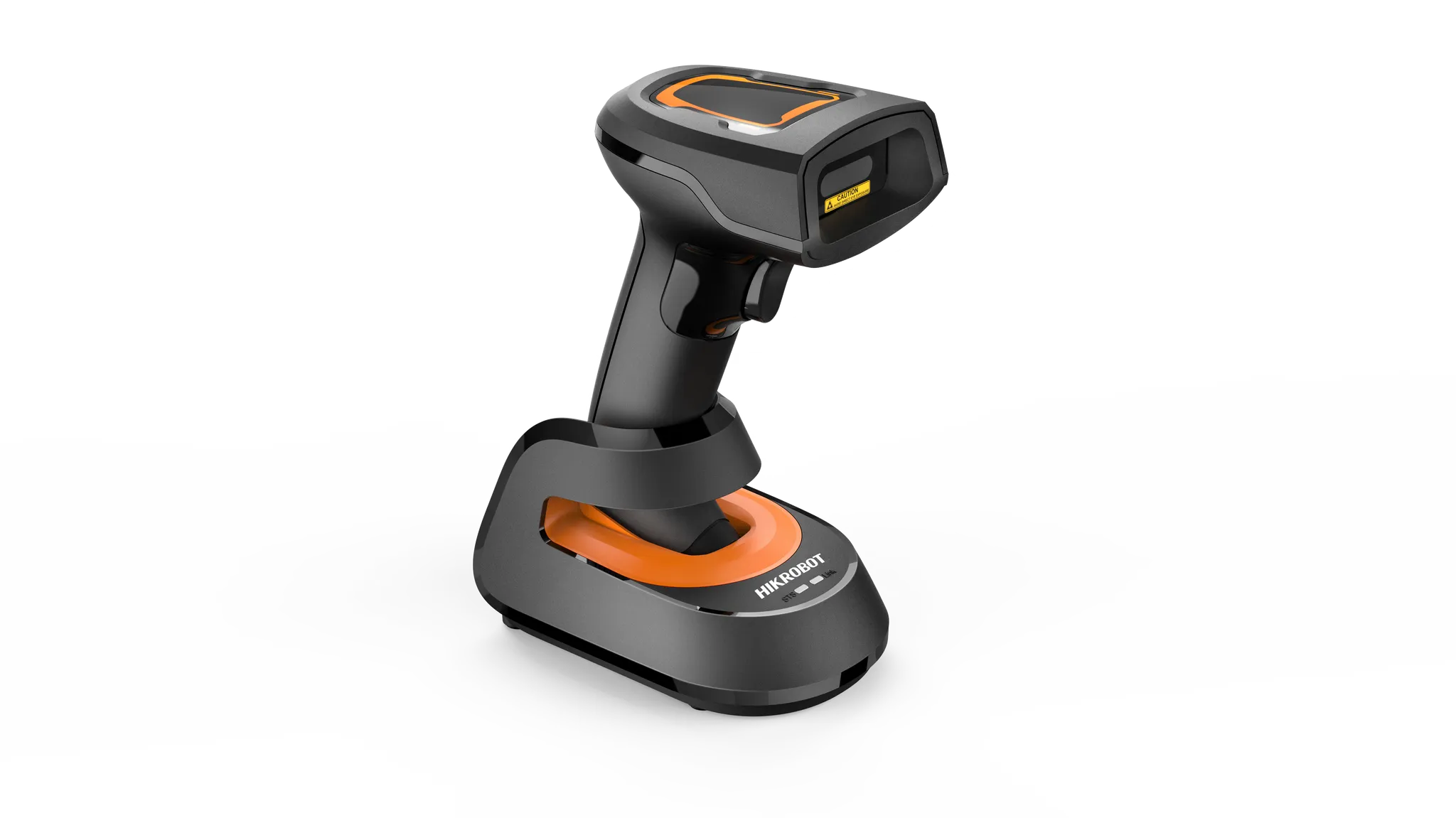

Industrial wireless handheld code reader package

Name: Industrial wireless handheld code reader package
Brand: HIKROBOT
SKU: MV-IDH2000B/03SR/03WN/UC

Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.

Send inquiry

Download datasheet (PDF)

Highlights

A built-in algorithm decodes a range of 1D and 2D codes.
Reads reliably even with spots, defects, or low contrast.
Continuous and batch reading modes raise throughput.
Wireless communication via Bluetooth.
A 2700 mAh battery gives long standby time.
Rated IP42 and survives a 1.8 m drop.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-IDH2000B/03SR/03WN/UC Category: Handheld Code Reader

Industrial wireless handheld code reader package is a handheld code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-IDH2000B/03SR/03WN/UC. Key data: min accuracy 4 mil, communication mode Bluetooth BT 5.1, BLE, ingress protection IP40, battery 2700 mAh. Typical use is manual scanning in production, warehouse and service. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Reads reliably even with spots, defects, or low contrast. Continuous and batch reading modes raise throughput. Wireless communication via Bluetooth. A 2700 mAh battery gives long standby time. Rated IP42 and survives a 1.8 m drop.

Industrial wireless handheld code reader package (MV-IDH2000B/03SR/03WN/UC) at a glance: 640 × 480 resolution, IP40 protection and weighs 120 g (0.3 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

A built-in algorithm decodes a range of 1D and 2D codes. — Reads reliably even with spots, defects, or low contrast. — Continuous and batch reading modes raise throughput. — Wireless communication via Bluetooth. — A 2700 mAh battery gives long standby time. — Rated IP42 and survives a 1.8 m drop.

Specifications

Product Model	MV-IDH2000B/03SR/03WN/UC
Type	Industrial wireless handheld code reader package
Symbologies	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417
Min Accuracy	4 mil
Sensor Type	CMOS
Resolution	640 × 480
Depth Of Field	EAN 13 (13 mil): 30 mm to 240 mm Code 39 (5 mil): 50 mm to 100 mm Code 128 (10 mil): 30 mm to 240 mm Data Matrix (10 mil): 40 mm to 130 mm QR Code (15 mil): 15 mm to 205 mm
Field Of View	Horizontal 42°, vertical 32°
Detection Angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol Contrast	20%
Communication Protocol	SmartSDK, Bluetooth, USB
Data Interface	USB 2.0 (Type B), USB 2.0 (Type A)
Power Supply	5 VDC
Current Consumption	1.5 A (max.), 0.01 A (during standby)
Focal Length	3.1 mm
Ambient Illumination	0 lux to 100000 lux
Light Source	White LED
Aiming System	Orange LED
Prompt	LED indicator, buzzer, vibrator
Dimension	82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0")
Weight	Approx. 120 g (0.3 lb.)
Ingress Protection	IP40
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	5% RH to 95% RH (no condensation)
Laser Safety Class	Laser 2
Wavelength	650 nm
Pulse Width	8 ms
Maximum Power	1 mW
Client Software	IDMVS
Certification	CE, KC
Communication Mode	Bluetooth BT 5.1, BLE
Wireless Range	80 m (open range)
Battery	2700 mAh
Charging Time	6 h
Endurance	12 h (interval scanning, once in 2 seconds)
