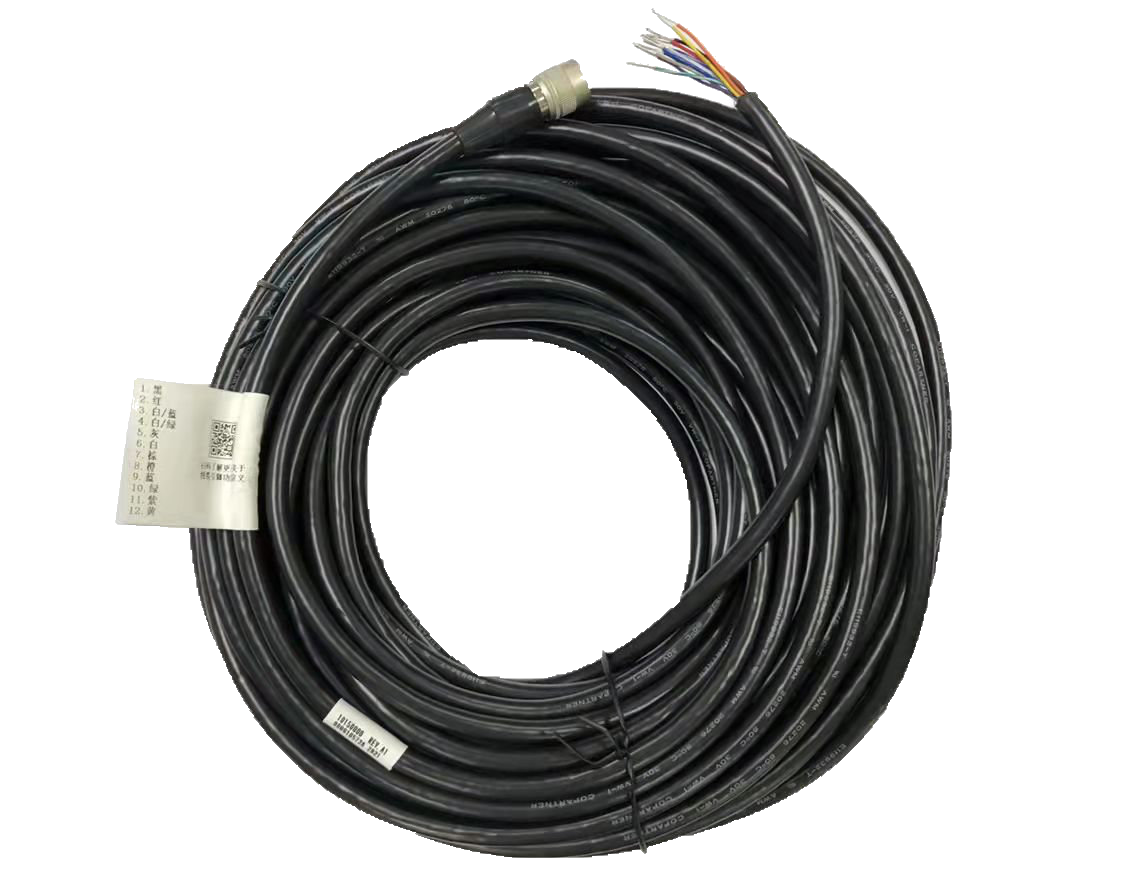

Power & I/O Cable, P10 12-pin, Female to Open, 3 m
The 12-pin P10 Standard Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Product Highlights
12-pin P10 Standard Power & I/O Cables power the camera and carry I/O signals; available in multiple lengths.
Specifications
| Product Model | MV-ACP-H12p-open-ST-3m |
|---|---|
| Type | Power & I/O Cable, P10 12-pin, Female to Open, 3 m |
| End A Connector | P10 12-pin,Female |
| End B Connector | Open |
| Cable Diameter | 7.0 mm |
| Length | 3 m |
| Cable Mechanical | 5P*26AWG+1P*24AWG+B |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | ≥ 750 cycles |
| Min Bending Radius | 84 mm |
| Applicable Scenario | Static scene |
| Max Voltage | 30 VDC |
| Working Temperature | -20°C~75°C |
| Certification | RoHS2.0,UL |
| Packaging | Individual package |
| Connector Model | made in China |
