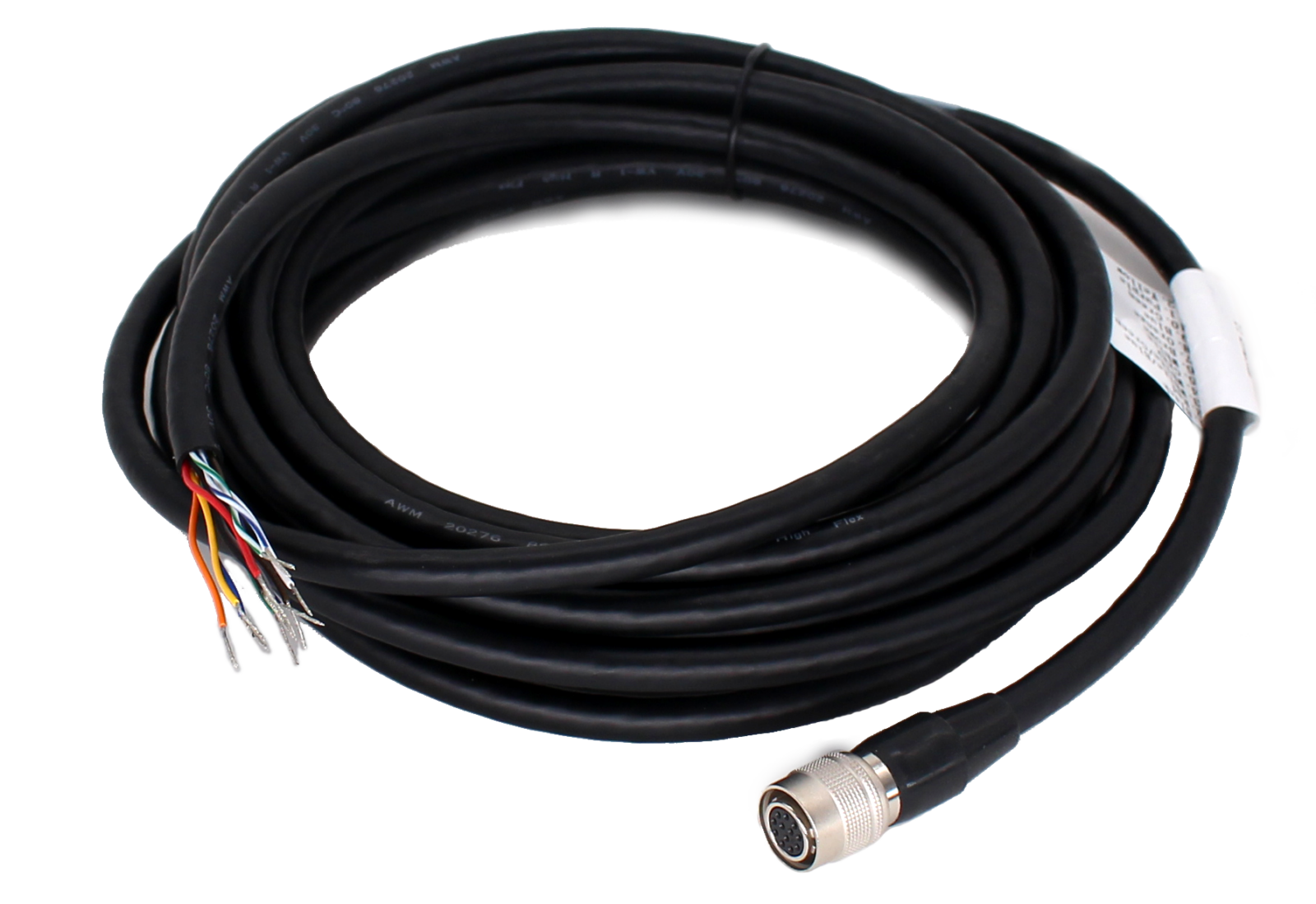

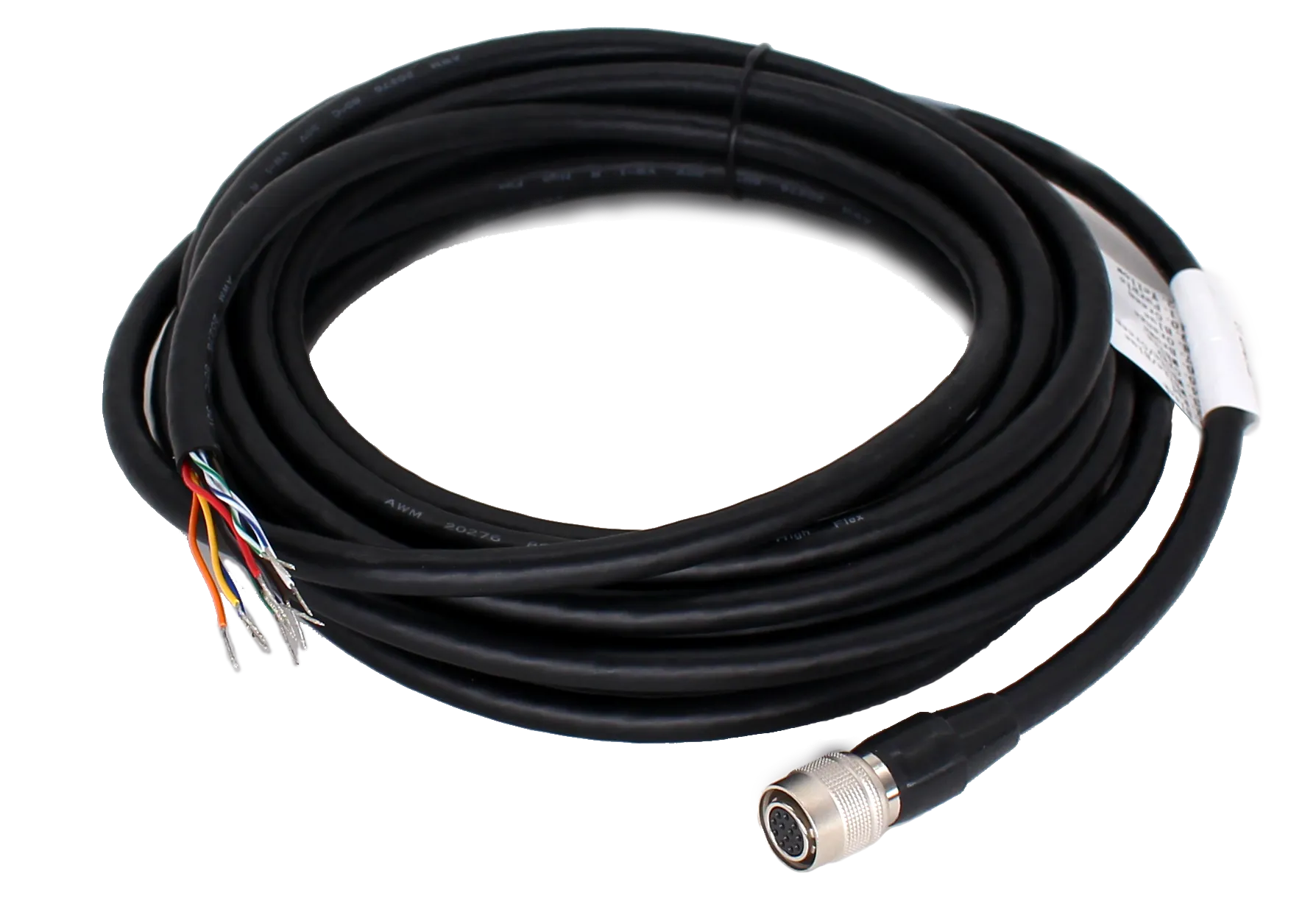

High-flex 12pin power & I/O cables，5 meters
The 12-pin P10 high-flex I/O & power cable can be used for camera power supply and I/O signal wiring, and it is available in various lengths.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
High-flex 12pin power & I/O cables, 5 meters is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ACP-H12p-open-HF-5m. Key data: certification RoHS2.0,UL. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- DB9 I/O cables (MV-ACP-DB9F-open-ST(EMC)-5m)
- DB9 I/O cables (MV-ACP-DB9F-open-ST(EMC)-7m)
- High-flex 12pin power & I/O cables, 10 meters (MV-ACP-H12p-open-HF-10m)
- High-flex 12pin power & I/O cables, 3 meters (MV-ACP-H12p-open-HF-3m)
- High-flex 12pin power & I/O cables, 7 meters (MV-ACP-H12p-open-HF-7m)
- Power & I/O Cable, P10 12-pin, Female to Open, 10 m (MV-ACP-H12p-open-ST-10m)
- Power & I/O Cable, P10 12-pin, Female to Open, 20 m (MV-ACP-H12p-open-ST-20m)
- Power & I/O Cable, P10 12-pin, Female to Open, 3 m (MV-ACP-H12p-open-ST-3m)
Product Highlights
12-pin P10 High Flex Power & I/O Cables power the camera and carry I/O signals; available in multiple lengths.
Specifications
| Product Model | MV-ACP-H12p-open-HF-5m |
|---|---|
| Type | High-flex 12pin power & I/O cables，5 meters |
| End A Connector | P10 12-pin aerospace connector, female |
| End B Connector | Open |
| Cable Diameter | 7.0 mm |
| Length | 5 m |
| Cable Mechanical | 5P*26AWG+1P*24AWG+F+B |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | ≥ 750 mating cycles |
| Min Bending Radius | 84 mm |
| Applicable Scenario | Drag chains |
| Max Voltage | 30 VDC |
| Working Temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
| Certification | RoHS2.0,UL |
| Packaging | Individual package |
| Max U Type Bending Cycles | ≥ 5 million times |
| Connector Model | 12-Pin P10 |
