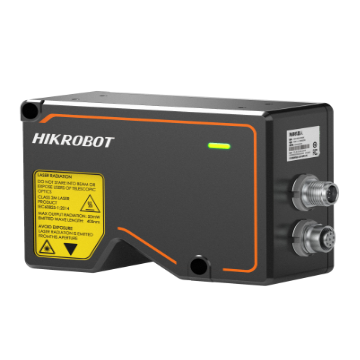

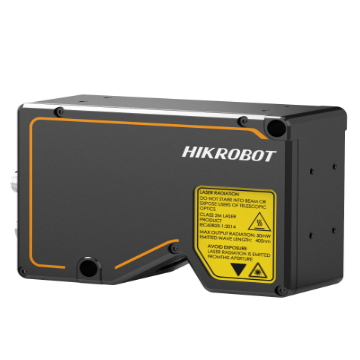

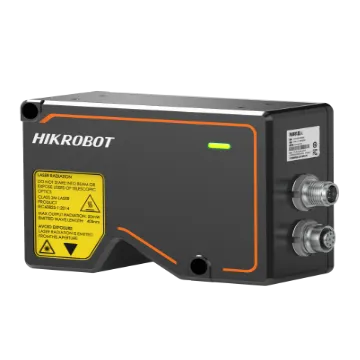

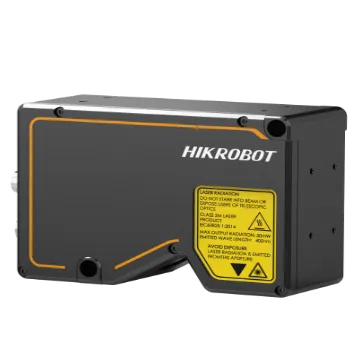

3D Camera DP2060-01P V2.0, ref. distance 64 mm, Z-range 26 mm
Built-in high-accuracy algorithm and accuracy is up to submicron level.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
High-frame-rate sensor scans at up to 23.9 kHz. Offers multiple exposure modes for robust imaging. Multi-frame integration builds complete profiles. Multiple filter modes deliver stable data. ROI selection and auto-setup ease operation.
Product Highlights
Built-in high-accuracy algorithm reaches submicron precision. — High-frame-rate sensor scans at up to 23.9 kHz. — Offers multiple exposure modes for robust imaging. — Multi-frame integration builds complete profiles. — Multiple filter modes deliver stable data. — ROI selection and auto-setup ease operation.
Specifications
| Product Model | MV-DP2060-01P V2.0 |
|---|---|
| Type | 3D Camera DP2060-01P V2.0, ref. distance 64 mm, Z-range 26 mm |
| Data Points Profile | 3200 |
| Reference Distance | 64 mm |
| Measurement Range Z Axis | 26 mm |
| Measurement Range X Axis | 27 mm @ near field of view 31.5 mm @ reference distance 36 mm @ far field of view |
| Resolution Z Axis | 1.45 μm to 2.83 μm |
| Repeatability Z Axis | 0.49 μm @ data that sensor tests gauge block on optical platform* |
| Linearity Z Axis Of Mr | 0.01 |
| Profile Data Interval | 8.5 μm to 11.8 μm |
| Scan Frame Rate | 1.7 kHz to 23.9 kHz (high frame rate mode) |
| Data Output | Original image, profile data, depth image, brightness image |
| Trigger Mode | Software trigger, hardware trigger (differential encoder) |
| Laser Safety Class | Class 3R |
| Wavelength | 405 nm |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1) |
| Power Consumption | Typ. 15.2 W @ 24 VDC |
| Power Supply | 24 VDC |
| Dimension | 128.5 mm × 93 mm × 62 mm (5.1" × 3.7" × 2.4") |
| Weight | Approx. 850 g (1.9 lb.) |
| Ingress Protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client Software | 3DMVS, VM3D, or third-party software |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
