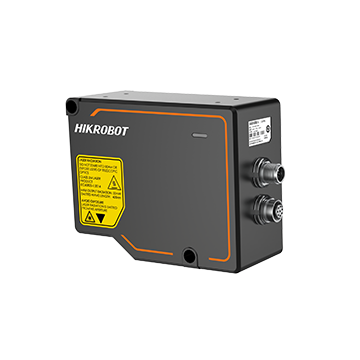

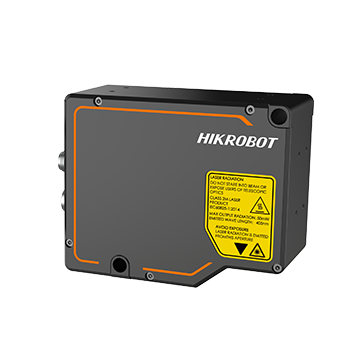

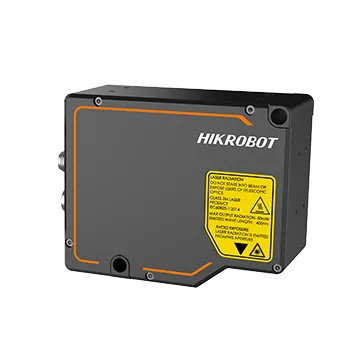

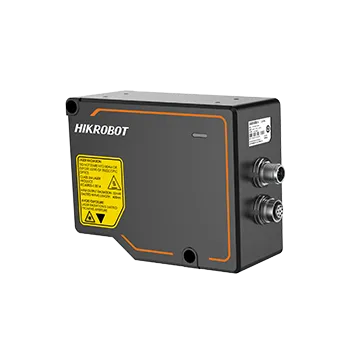

3D Camera DP3020-01P, ref. distance 20 mm, Z-range 6 mm
Built-in high-accuracy algorithm and accuracy is up to submicron level.
- Built-in high-accuracy algorithm reaches submicron precision.
- High-frame-rate sensor scans at up to 46.7 kHz.
- Single-frame HDR for broader material compatibility.
- Multiple filter modes for stable contour data.
- ROI selection with auto settings for simpler operation.
Camera Solutions
3D Camera DP3020-01P, ref. distance 20 mm, Z-range 6 mm is a 3D sensor from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-DP3020-01P. Key data: reference distance 20 mm, measurement range z axis 6 mm. Typical use is height, volume and profile measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
High-frame-rate sensor scans at up to 46.7 kHz. Single-frame HDR for broader material compatibility. Multiple filter modes for stable contour data. ROI selection with auto settings for simpler operation.
Product Highlights
Built-in high-accuracy algorithm reaches submicron precision. — High-frame-rate sensor scans at up to 46.7 kHz. — Single-frame HDR for broader material compatibility. — Multiple filter modes for stable contour data. — ROI selection with auto settings for simpler operation.
Specifications
| Product Model | MV-DP3020-01P |
|---|---|
| Type | 3D Camera DP3020-01P, ref. distance 20 mm, Z-range 6 mm |
| Data Points Profile | 3200 |
| Reference Distance | 20 mm |
| Measurement Range Z Axis | 6 mm |
| Measurement Range X Axis | 11.5 mm @ near field of view 12.7 mm @ reference distance 14 mm @ far field of view |
| Resolution Z Axis | 0.65 μm to 0.72 μm |
| Repeatability Z Axis | 0.20 μm @ data that sensor tests gauge block on optical platform |
| Linearity Z Axis Of Mr | 0.01 |
| Profile Data Interval | 4.0 μm to 4.2 μm |
| Scan Frame Rate | 1.3 kHz (within max. measurement range), max. 19 kHz (in ROI mode) |
| Data Output | Profile data, depth image, brightness image |
| Trigger Mode | Software trigger, hardware trigger (differential encoder) |
| Laser Safety Class | Class 3R |
| Wavelength | 405 nm |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1 |
| Power Consumption | Typ. 13.8 W @ 24 VDC |
| Power Supply | 24 VDC |
| Dimension | 139.5 mm × 111.5 mm × 60.5 mm (5.5" × 4.4" × 2.4") |
| Weight | Approx. 1075 g (2.4 lb.) |
| Ingress Protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client Software | 3DMVS, VM3D, or third-party 3D software |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
