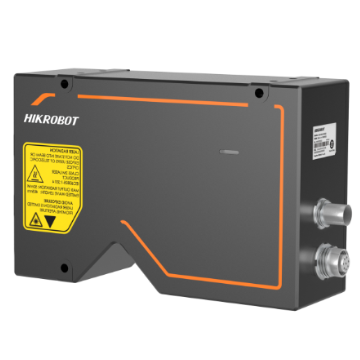

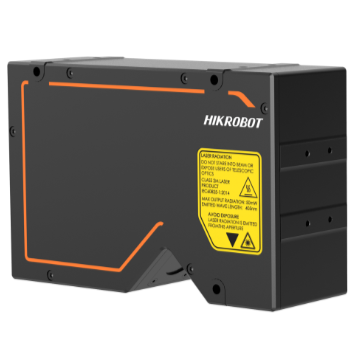

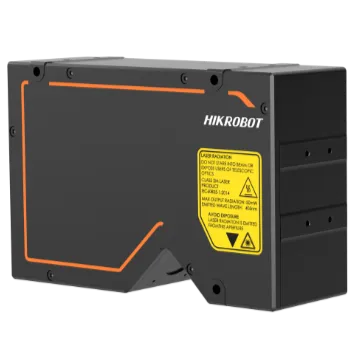

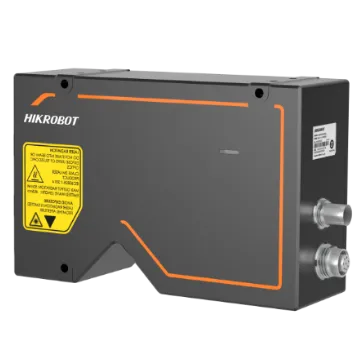

3D Camera DP2061-01P V2.0, ref. distance 60.2 mm, Z-range 10.4 mm
Built-in high-accuracy algorithm and accuracy is up to submicron level.
- Built-in high-accuracy algorithm reaches submicron precision.
- High-frame-rate sensor scans at up to 23.9 kHz.
- Offers multiple exposure modes for robust imaging.
- Multi-frame integration builds complete profiles.
- Multiple filter modes deliver stable data.
- ROI selection and auto-setup ease operation.
Camera Solutions
3D Camera DP2061-01P V2.0, ref. distance 60.2 mm, Z-range 10.4 mm is a 3D sensor from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-DP2061-01P V2.0. Key data: reference distance 60.2 mm, measurement range z axis 10.4 mm. Typical use is height, volume and profile measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- 3D Camera DP2050-01P V2.0, ref. distance 47 mm, Z-range 6 mm (MV-DP2050-01P V2.0)
- 3D Camera DP2060-01P, ref. distance 64 mm, Z-range 26 mm (MV-DP2060-01P)
- 3D Camera DP2060-01P V2.0, ref. distance 64 mm, Z-range 26 mm (MV-DP2060-01P V2.0)
- 3D Camera DP2080-01P V2.0, ref. distance 80.2 mm, Z-range 15.2 mm (MV-DP2080-01P V2.0)
Description
High-frame-rate sensor scans at up to 23.9 kHz. Offers multiple exposure modes for robust imaging. Multi-frame integration builds complete profiles. Multiple filter modes deliver stable data. ROI selection and auto-setup ease operation.
Product Highlights
Built-in high-accuracy algorithm reaches submicron precision. — High-frame-rate sensor scans at up to 23.9 kHz. — Offers multiple exposure modes for robust imaging. — Multi-frame integration builds complete profiles. — Multiple filter modes deliver stable data. — ROI selection and auto-setup ease operation.
Specifications
| Product Model | MV-DP2061-01P V2.0 |
|---|---|
| Type | 3D Camera DP2061-01P V2.0, ref. distance 60.2 mm, Z-range 10.4 mm |
| Data Points Profile | 3200 |
| Reference Distance | 60.2 mm |
| Measurement Range Z Axis | 10.4 mm |
| Measurement Range X Axis | 46.6 mm @ reference distance 44.4 mm @ near field of view 48.8 mm @ far field of view |
| Resolution Z Axis | 2.71 μm to 3.26 μm |
| Repeatability Z Axis | 0.74 μm @ data that sensor tests gauge block on optical platform |
| Linearity Z Axis Of Mr | 0.01 |
| Profile Data Interval | 14.1 μm to 15.4 μm |
| Scan Frame Rate | 3.3 kHz to 23.9 kHz (high frame rate mode) |
| Data Output | Original image, profile data, depth image, brightness image |
| Trigger Mode | Software trigger, hardware trigger (differential encoder) |
| Laser Safety Class | Class 3B |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1) |
| Power Supply | 24 VDC |
| Dimension | 140 mm × 98 mm × 51 mm (5.5" × 3.9" × 2.0") |
| Weight | Approx. 850 g (1.9 lb.) |
| Ingress Protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client Software | 3DMVS, VM3D, or third-party software |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
| Laser Wavelength | 405 nm |
| Power Consumption 2 | Typ. 15.2 W @ 24 VDC |
