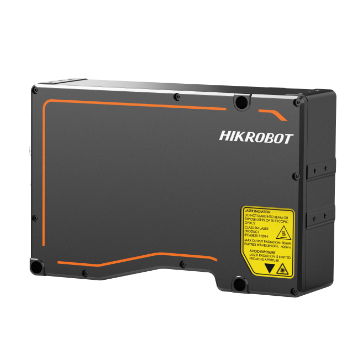

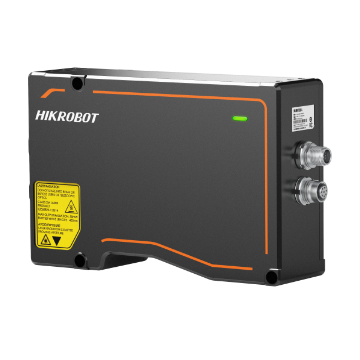

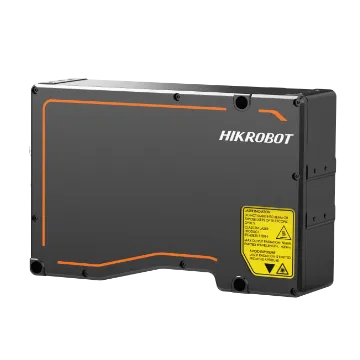

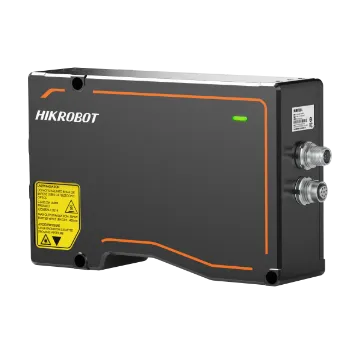

3D Camera DP2470-03P V2.0, ref. distance 565 mm, Z-range 670 mm
Built-in high-accuracy algorithm and accuracy is up to submicron level.
- Built-in high-accuracy algorithm reaches submicron precision.
- High-frame-rate sensor scans at up to 23.9 kHz.
- Offers multiple exposure modes for robust imaging.
- Multi-frame integration builds complete profiles.
- Multiple filter modes deliver stable data.
- ROI selection and auto-setup ease operation.
Camera Solutions
3D Camera DP2470-03P V2.0, ref. distance 565 mm, Z-range 670 mm is a 3D sensor from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-DP2470-03P V2.0. Key data: reference distance 565 mm, measurement range z axis 670 mm. Typical use is height, volume and profile measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
High-frame-rate sensor scans at up to 23.9 kHz. Offers multiple exposure modes for robust imaging. Multi-frame integration builds complete profiles. Multiple filter modes deliver stable data. ROI selection and auto-setup ease operation.
Product Highlights
Built-in high-accuracy algorithm reaches submicron precision. — High-frame-rate sensor scans at up to 23.9 kHz. — Offers multiple exposure modes for robust imaging. — Multi-frame integration builds complete profiles. — Multiple filter modes deliver stable data. — ROI selection and auto-setup ease operation.
Specifications
| Product Model | MV-DP2470-03P V2.0 |
|---|---|
| Type | 3D Camera DP2470-03P V2.0, ref. distance 565 mm, Z-range 670 mm |
| Data Points Profile | 3200 |
| Reference Distance | 565 mm |
| Measurement Range Z Axis | 670 mm |
| Measurement Range X Axis | 142 mm @ near field of view 315 mm @ reference distance 488 mm @ far field of view |
| Resolution Z Axis | 10.39 μm to 169.79 μm |
| Repeatability Z Axis | 4.45 μm @ data that sensor tests gauge block on optical platform* |
| Linearity Z Axis Of Mr | 0.01 |
| Profile Data Interval | 43.9 μm to 177.4 μm |
| Scan Frame Rate | 1.7 kHz to 23.9 kHz (high frame rate mode) |
| Data Output | Profile data, depth image, brightness image |
| Trigger Mode | Software trigger, hardware trigger (differential encoder) |
| Laser Safety Class | Class 3R |
| Wavelength | 650 nm |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1) |
| Power Consumption | Typ. 15.2 W @ 24 VDC |
| Power Supply | 24 VDC |
| Dimension | 185.5 mm × 125.5 mm × 59 mm (7.3" × 4.9" × 2.3") |
| Weight | Approx. 1450 g (3.2 lb.) |
| Ingress Protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client Software | 3DMVS, VM3D, or third-party software |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
