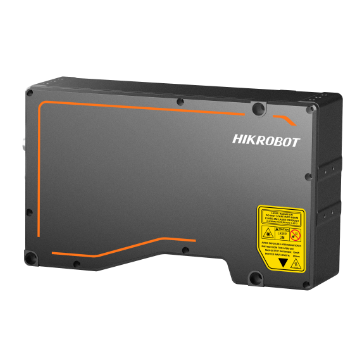

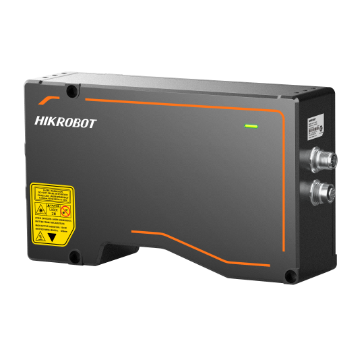

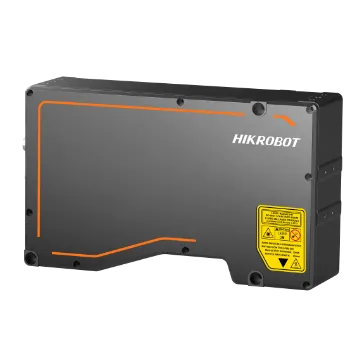

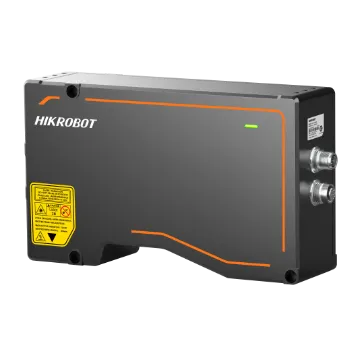

3D Camera DP3580-01P, ref. distance 585 mm, Z-range 580 mm
Built-in high-accuracy algorithm and accuracy is up to submicron level.
- Built-in high-accuracy algorithm reaches submicron precision.
- High-frame-rate sensor scans at up to 46.7 kHz.
- Offers multiple exposure modes for robust imaging.
- Multi-frame integration builds complete profiles.
- Multiple filter modes deliver stable data.
- ROI selection and auto-setup ease operation.
Camera Solutions
3D Camera DP3580-01P, ref. distance 585 mm, Z-range 580 mm is a 3D sensor from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-DP3580-01P. Key data: reference distance 585 mm, measurement range z axis 580 mm. Typical use is height, volume and profile measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
High-frame-rate sensor scans at up to 46.7 kHz. Offers multiple exposure modes for robust imaging. Multi-frame integration builds complete profiles. Multiple filter modes deliver stable data. ROI selection and auto-setup ease operation.
Product Highlights
Built-in high-accuracy algorithm reaches submicron precision. — High-frame-rate sensor scans at up to 46.7 kHz. — Offers multiple exposure modes for robust imaging. — Multi-frame integration builds complete profiles. — Multiple filter modes deliver stable data. — ROI selection and auto-setup ease operation.
Specifications
| Product Model | MV-DP3580-01P |
|---|---|
| Type | 3D Camera DP3580-01P, ref. distance 585 mm, Z-range 580 mm |
| Data Points Profile | 3200 |
| Reference Distance | 585 mm |
| Measurement Range Z Axis | 580 mm |
| Measurement Range X Axis | 165 mm @ near field of view 306 mm @ reference distance 447 mm @ far field of view |
| Resolution Z Axis | 12.07 μm to 102.94 μm |
| Repeatability Z Axis | 4.47 μm @ data that sensor tests gauge block on optical platform |
| Linearity Z Axis Of Mr | 0.01 |
| Profile Data Interval | 50.1 μm to 146.8 μm |
| Scan Frame Rate | 1.3 kHz (within max. measurement range), max. 19 kHz (in ROI mode) |
| Data Output | Depth image, profile data, brightness image |
| Trigger Mode | Software trigger, hardware trigger (differential encoder) |
| Laser Safety Class | Class 3B |
| Wavelength | 405 nm |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1 |
| Power Consumption | Typ. 13.8 W @ 24 VDC |
| Power Supply | 24 VDC |
| Dimension | 210.5 mm × 125.5 mm × 59 mm (8.3" × 4.9" × 2.3") |
| Weight | Approx. 1550 g (3.4 lb.) |
| Ingress Protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client Software | 3DMVS, VM3D, or third-party 3D software |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
