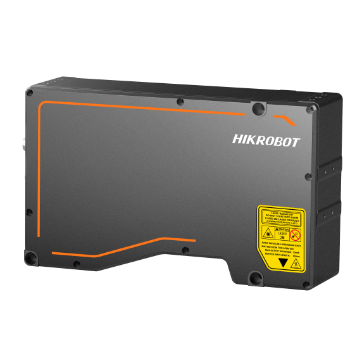

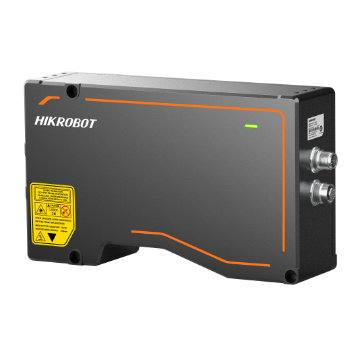

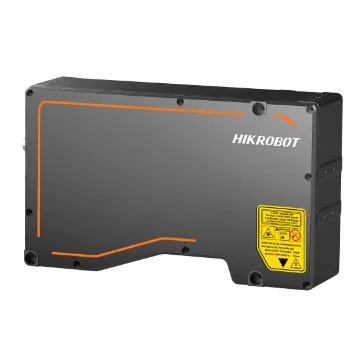

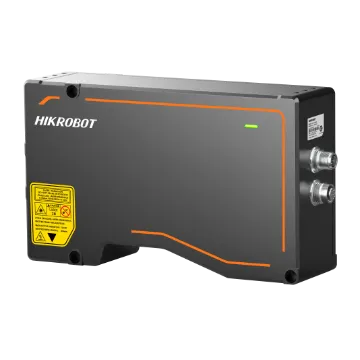

3D Camera DP3300-03P V2.0, ref. distance 300 mm, Z-range 210 mm
Built-in high-accuracy algorithm and accuracy is up to submicron level.
- Built-in high-accuracy algorithm reaches submicron precision.
- High-frame-rate chip scans at up to 46.7 kHz.
- Offers multiple exposure modes for robust imaging.
- Multi-frame integration provides complete contours.
- Multiple filter modes deliver stable data.
- ROI selection and auto-setup ease operation.
Camera Solutions
3D Camera DP3300-03P V2.0, ref. distance 300 mm, Z-range 210 mm is a 3D sensor from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-DP3300-03P V2.0. Key data: reference distance 300 mm, measurement range z axis 210 mm. Typical use is height, volume and profile measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
High-frame-rate chip scans at up to 46.7 kHz. Offers multiple exposure modes for robust imaging. Multi-frame integration provides complete contours. Multiple filter modes deliver stable data. ROI selection and auto-setup ease operation.
Product Highlights
Built-in high-accuracy algorithm reaches submicron precision. — High-frame-rate chip scans at up to 46.7 kHz. — Offers multiple exposure modes for robust imaging. — Multi-frame integration provides complete contours. — Multiple filter modes deliver stable data. — ROI selection and auto-setup ease operation.
Specifications
| Product Model | MV-DP3300-03P V2.0 |
|---|---|
| Type | 3D Camera DP3300-03P V2.0, ref. distance 300 mm, Z-range 210 mm |
| Data Points Profile | 3200 |
| Reference Distance | 300 mm |
| Measurement Range Z Axis | 210 mm |
| Measurement Range X Axis | 130 mm @ near field of view 183 mm @ reference distance 236 mm @ far field of view |
| Resolution Z Axis | 9.36 μm to 26.27 μm |
| Repeatability Z Axis | 2.20 μm @ data that sensor tests gauge block on optical platform |
| Linearity Z Axis Of Mr | 0.01 |
| Profile Data Interval | 40.5 μm to 79.2 μm |
| Scan Frame Rate | 3.4 kHz to 46.7 kHz (high frame rate mode) |
| Data Output | Depth image, profile data, brightness image |
| Trigger Mode | Software trigger, hardware trigger (differential encoder) |
| Laser Safety Class | Class 3R |
| Wavelength | 650 nm |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1) |
| Power Consumption | Typ. 17.2 W @ 24 VDC |
| Power Supply | 24 VDC |
| Dimension | 210.5 mm × 125.5 mm × 59 mm (8.3" × 4.9" × 2.3") |
| Weight | Approx. 1550 g (3.4 lb.) |
| Ingress Protection | IP67 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client Software | 3DMVS, VM3D, or third-party 3D software |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
