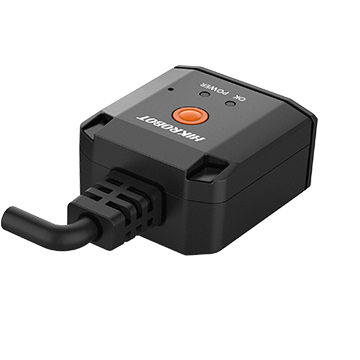

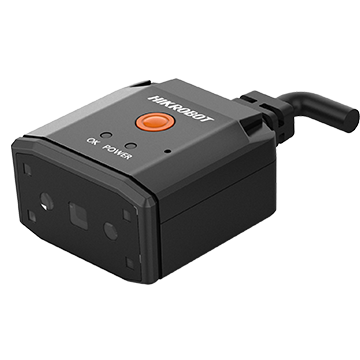

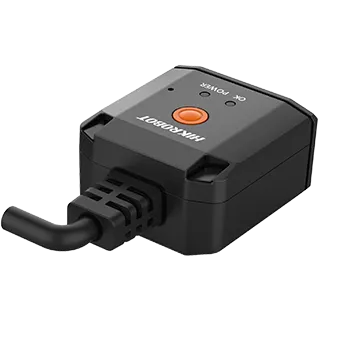

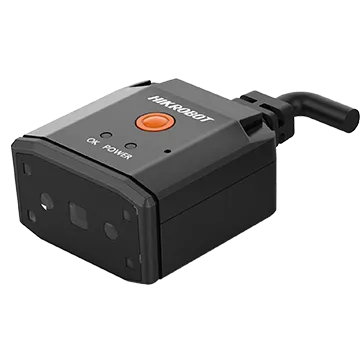

MV-ID2013EMI-05-WBN-U

Name: MV-ID2013EMI-05-WBN-U
Brand: HIKROBOT
SKU: MV-ID2013EMI-05-WBN-U

Compact design and small in size.

Send inquiry

Download datasheet (PDF)

Highlights

Compact and small-footprint design.
Includes multiple I/O interfaces and a plug-in power connector.
An LED aiming light helps line up codes.
A buzzer and indicator signal device status.
One-click parameter setup keeps operation simple.
Built-in light-source control allows flexible configuration.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-ID2013EMI-05-WBN-U Category: Fixed Code Reader

MV-ID2013EMI-05-WBN-U is a fixed-mount code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ID2013EMI-05-WBN-U. Key data: max reading speed 30 codes/sec, resolution 1024 × 1280, data interface USB 2.0, ingress protection IP54. Typical use is track-and-trace on production and logistics lines. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Includes multiple I/O interfaces and a plug-in power connector. An LED aiming light helps line up codes. A buzzer and indicator signal device status. One-click parameter setup keeps operation simple. Built-in light-source control allows flexible configuration.

MV-ID2013EMI-05-WBN-U (MV-ID2013EMI-05-WBN-U) at a glance: 1024 × 1280 resolution, 4.63 mm lens, Code 39 (5 mil): 75 mm to 215 mm depth of field, up to 50 fps, USB 2.0 interface, 45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0") housing and weighs 68.5 g (0.2 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Compact and small-footprint design. — Includes multiple I/O interfaces and a plug-in power connector. — An LED aiming light helps line up codes. — A buzzer and indicator signal device status. — One-click parameter setup keeps operation simple. — Built-in light-source control allows flexible configuration.

Specifications

Product Model	MV-ID2013EMI-05-WBN-U
Type	MV-ID2013EMI-05-WBN-U
Symbologies	1D codes: Code 39, Code 93, Code 128, EAN8, EAN13, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, AZTEC, HanXin Stacked codes: PDF417
Max Frame Rate	50 fps
Max Reading Speed	30 codes/sec
Sensor Type	CMOS, global shutter
Pixel Size	2.7 μm × 2.7 μm
Sensor Size	1/4"
Resolution	1024 × 1280
Exposure Time	60 μs to 6000 μs
Gain	1 dB to 28 dB
Communication Protocol	SmartSDK, USB (HID, CDC)
Depth Of Field	Code 39 (5 mil): 75 mm to 215 mm Code 128 (10 mil): 50 mm to 400 mm EAN 13 (13 mil): 60 mm to 420 mm QR Code (15 mil): 40 mm to 290 mm Data Matrix (10 mil): 50 mm to 240 mm
Data Interface	USB 2.0
Digital I/O	DB15 connector provides data transmission. Supports device triggering and restarting via pressing button on side.
Power Supply	5 VDC (Recommended: USB 3.0 provides power supply)
Max Power Consumption	Avg.: 2.2 W @ 5 VDC; max.: 4.5 W @ 5 VDC
Focal Length	4.63 mm
Lens Mount	M5.8-mount
Ambient Illumination	0 lux to 10000 lux
Light Source	White
Aiming System	Green LED
Indicator	Power indicator (POWER), status indicator (OK/NG)
Dimension	45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0")
Weight	Approx. 68.5 g (0.2 lb.)
Ingress Protection	IP54
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	IDMVS
Certification	CE, RoHS, KC
Mono	Mono
