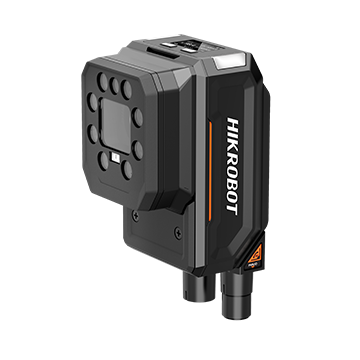

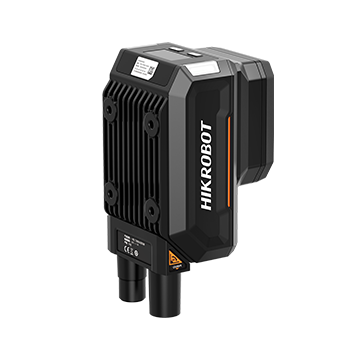

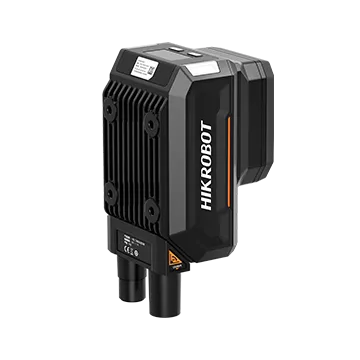

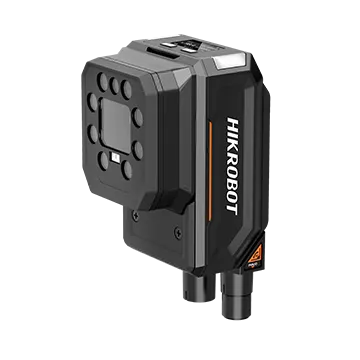

Industrial Code Reader, 5 MP, 16 mm
Adopts built-in deep learning algorithm to read codes with good robustness.
Camera Solutions
Beschreibung
Built-in touchscreen lets you view statistics and adjust parameters on screen. Indicators on multiple sides show device status. Rotatable cable design eases mounting. Controllable light source adapts its output to the workpiece material. I/O interfaces carry input and output signals. High-precision sensors determine the installation position. A wide range of accessories, including multi-colour and wafer light sources, extend code-reading capability and scene adaptability. HDR mode delivers high-contrast images. Multiple lens-mount options: C-Mount, mechanical-focus, and liquid-focus lenses. Multi-colour light source (red/green/blue/white) with switchable output.
Product Highlights
A built-in deep-learning algorithm reads codes robustly. — Built-in touchscreen lets you view statistics and adjust parameters on screen. — Indicators on multiple sides show device status. — Rotatable cable design eases mounting. — Controllable light source adapts its output to the workpiece material. — I/O interfaces carry input and output signals. — High-precision sensors determine the installation position. — A wide range of accessories, including multi-colour and wafer light sources, extend code-reading capability and scene adaptability. — HDR mode delivers high-contrast images. — Multiple lens-mount options: C-Mount, mechanical-focus, and liquid-focus lenses. — The device with multi-color light source supports red/green/blue/white light source, and you can switch the light source.
Specifications
| Product Model | MV-ID5050XM-16M-RBN |
|---|---|
| Type | Industrial Code Reader, 5 MP, 16 mm |
| Symbologies | 1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin 2D stacked codes: PDF417, MicroPDF417 |
| Max Frame Rate | 92 fps |
| Max Reading Speed | 120 codes/sec |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/1.45" |
| Resolution | 2432 × 2048 |
| Exposure Time | 38 μs to 3 ms |
| Gain | 0 dB to 37 dB |
| Mono Color | Mono |
| Communication Protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, Fins, UDP |
| Data Interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. Supports device triggering via pressing on touchscreen. |
| Power Supply | 24 ± 10% VDC |
| Focal Length | 16 mm |
| Lens Mount | M12-mount, mechanical focus supported |
| Light Source | Red light by default. White/blue/IR light is optional. |
| Indicator | Multi-directional device body indicator |
| Dimension | Straight angle: 112.3 mm × 54 mm × 60.2 mm (4.4" × 2.1" × 2.4") Right angle: 88.7 mm × 54 mm × 82.5 mm (3.5" × 2.1" × 3.2") |
| Weight | Approx. 405 g (0.9 lb.) |
| Ingress Protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | IDMVS |
| Certification | CE, RoHS, KC |
| Power Consumption | Avg.: 11 W @ 24 VDC (light source enabled) Max.: 36 W @ 24 VDC (light source enabled) |
| Lens Cap | Half polarization lens cap by default. Transparent and full polarization caps are optional. |
| Vibration Resistance | Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock Resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Shell Material | Metal |
