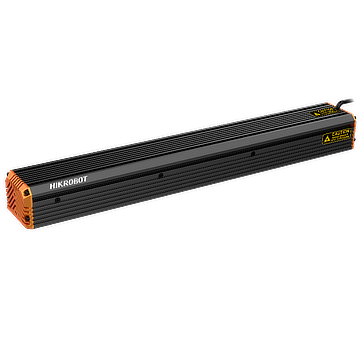

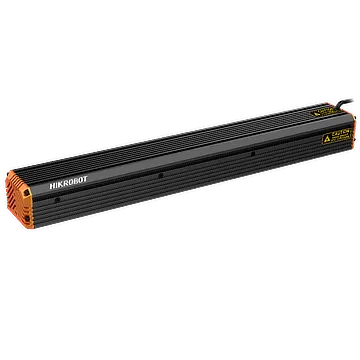

Bar Light MV-LLDS-H-300-40-R
The irradiation direction and angle can be adjusted freely.
Highlights
- Beam direction and angle adjust freely.
- Mounts from multiple sides for installation flexibility.
- Uses premium LEDs for bright, stable, consistent illumination.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Bar Light MV-LLDS-H-300-40-R is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LLDS-H-300-40-R. Key data: emitting area dimension 276 mm × 31.6 mm, color Red, power 18 W. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Mounts from multiple sides for installation flexibility. Uses premium LEDs for bright, stable, consistent illumination.
Bar Light MV-LLDS-H-300-40-R (MV-LLDS-H-300-40-R) at a glance: Red light, 625 nm wavelength, 18 W power, 276 mm × 31.6 mm emitting area, 288 mm × 40 mm × 30 mm outer dimensions, SMR-03V-B connector, 1 m cable and weighs 0.57 kg. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.
Product Highlights
Beam direction and angle adjust freely. — Mounts from multiple sides for installation flexibility. — Uses premium LEDs for bright, stable, consistent illumination.
Specifications
| Product Model | MV-LLDS-H-300-40-R |
|---|---|
| Type | MV-LLDS-H-300-40-R |
| Color | Red |
| Best Working Distance | 30 mm to 500 mm |
| Wavelength | 625 nm |
| Color Temperature | W: 6000K to 7500K |
| Power | 18 W |
| Connector Type | SMR-03V-B |
| Dimension | 288 mm × 40 mm × 30 mm |
| LED Rows | 6 |
| Weight | 0.57 kg |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | PMMA |
| Emitting Area Dimension | 276 mm × 31.6 mm |
| Safety Class | No danger |
| Safety Distance | / |
