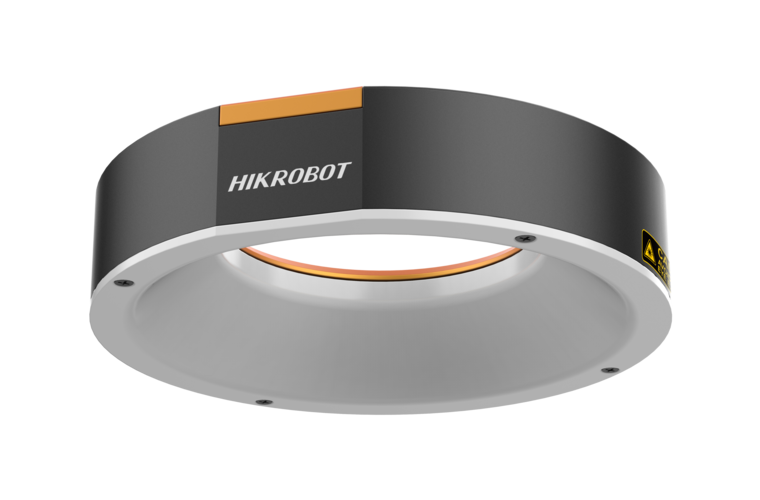

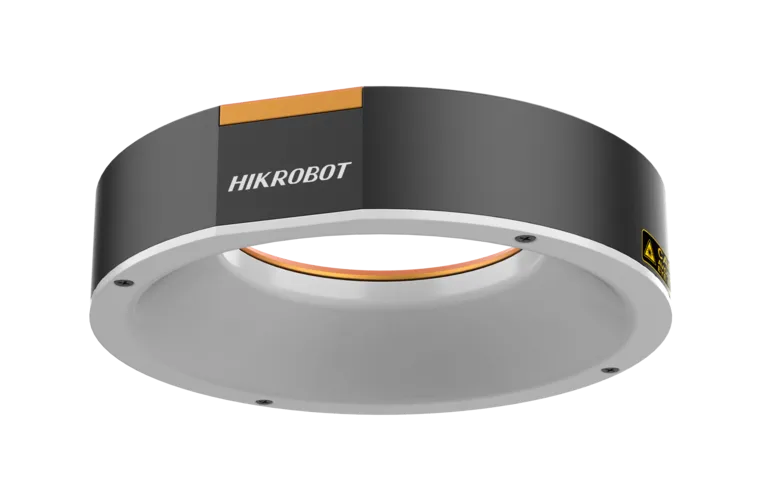

Multi-Angle Ring Light MV-LRSS-H-160-W
Provides high uniformity illumination.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Available in various outer-diameter sizes.
Product Highlights
High-uniformity illumination. — Available in various outer-diameter sizes.
Specifications
| Product Model | MV-LRSS-H-160-W |
|---|---|
| Type | MV-LRSS-H-160-W |
| Color | White |
| Center Illuminance | ≥18000 Lux@WD=100 mm |
| Best Working Distance | 30~80 mm |
| Wavelength | / |
| Color Temperature | 6000 ~ 7000K |
| Power | 17.4 W |
| Connector Type | SMR-03V-B |
| Dimension | Φ160 mm × 18 mm |
| Bore Dimension | Φ116 mm |
| Emitting Area Length | Φ146 mm |
| LED Rows | 1 |
| Weight | 298 g |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | PMMA |
