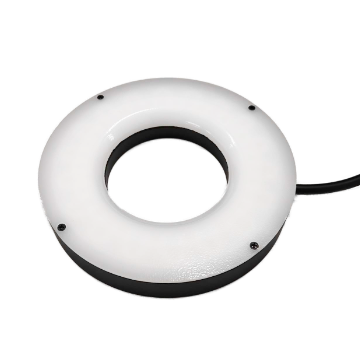

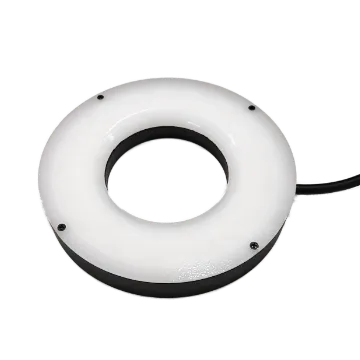

Ring Light MV-LRDS-H-180-90-R2
Adopts high-density LED array design.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Available in a range of sizes and beam angles. Compact housing with efficient heat dissipation. Includes a diffuser plate for more uniform lighting.
Product Highlights
Built around a high-density LED array. — Available in a range of sizes and beam angles. — Compact housing with efficient heat dissipation. — Includes a diffuser plate for more uniform lighting.
Specifications
| Product Model | MV-LRDS-H-180-90-R2 |
|---|---|
| Type | MV-LRDS-H-180-90-R2 |
| Color | Red |
| Center Illuminance | ≥9000 Lux@WD=100 mm |
| Best Working Distance | 140 ~ 160 mm |
| Wavelength | 630 nm |
| Color Temperature | / |
| Power | 29 W |
| Connector Type | SMR-03V-B |
| Dimension | Φ180 mm × 18 mm |
| Bore Dimension | Φ100 mm |
| Emitting Area Length | Φ167 mm |
| LED Rows | 6 |
| Weight | 550 g |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | PMMA |
| Irradiation Angle | 90° |
| Outer Dimension | Φ180 mm |
