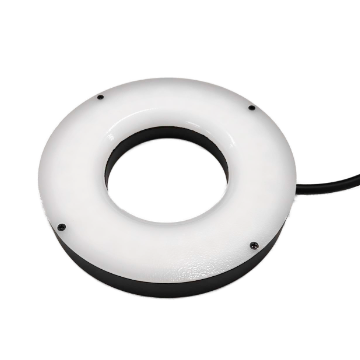

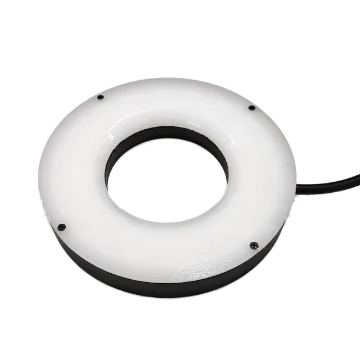

Ring Light MV-LRDS-H-73-90-B2
Adopts high-density LED array design.
Highlights
- Built around a high-density LED array.
- Available in a range of sizes and beam angles.
- Compact housing with efficient heat dissipation.
- Includes a diffuser plate for more uniform lighting.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Ring Light MV-LRDS-H-73-90-B2 is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LRDS-H-73-90-B2. Key data: color Blue, power 5 W. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Available in a range of sizes and beam angles. Compact housing with efficient heat dissipation. Includes a diffuser plate for more uniform lighting.
Ring Light MV-LRDS-H-73-90-B2 (MV-LRDS-H-73-90-B2) at a glance: Blue light, 460 nm wavelength, 5 W power, Φ73 mm × 16 mm outer dimensions, SMR-03V-B connector, 1 m cable and weighs 100 g. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.
Product Highlights
Built around a high-density LED array. — Available in a range of sizes and beam angles. — Compact housing with efficient heat dissipation. — Includes a diffuser plate for more uniform lighting.
Specifications
| Product Model | MV-LRDS-H-73-90-B2 |
|---|---|
| Type | MV-LRDS-H-73-90-B2 |
| Color | Blue |
| Center Illuminance | ≥1250 Lux@WD=100 mm |
| Best Working Distance | 60 ~ 80 mm |
| Wavelength | 460 nm |
| Color Temperature | / |
| Power | 5 W |
| Connector Type | SMR-03V-B |
| Dimension | Φ73 mm × 16 mm |
| Bore Dimension | Φ36 mm |
| Emitting Area Length | Φ65.5 mm |
| LED Rows | 2 |
| Weight | 100 g |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | PMMA |
| Irradiation Angle | 90° |
| Outer Dimension | Φ73 mm |
