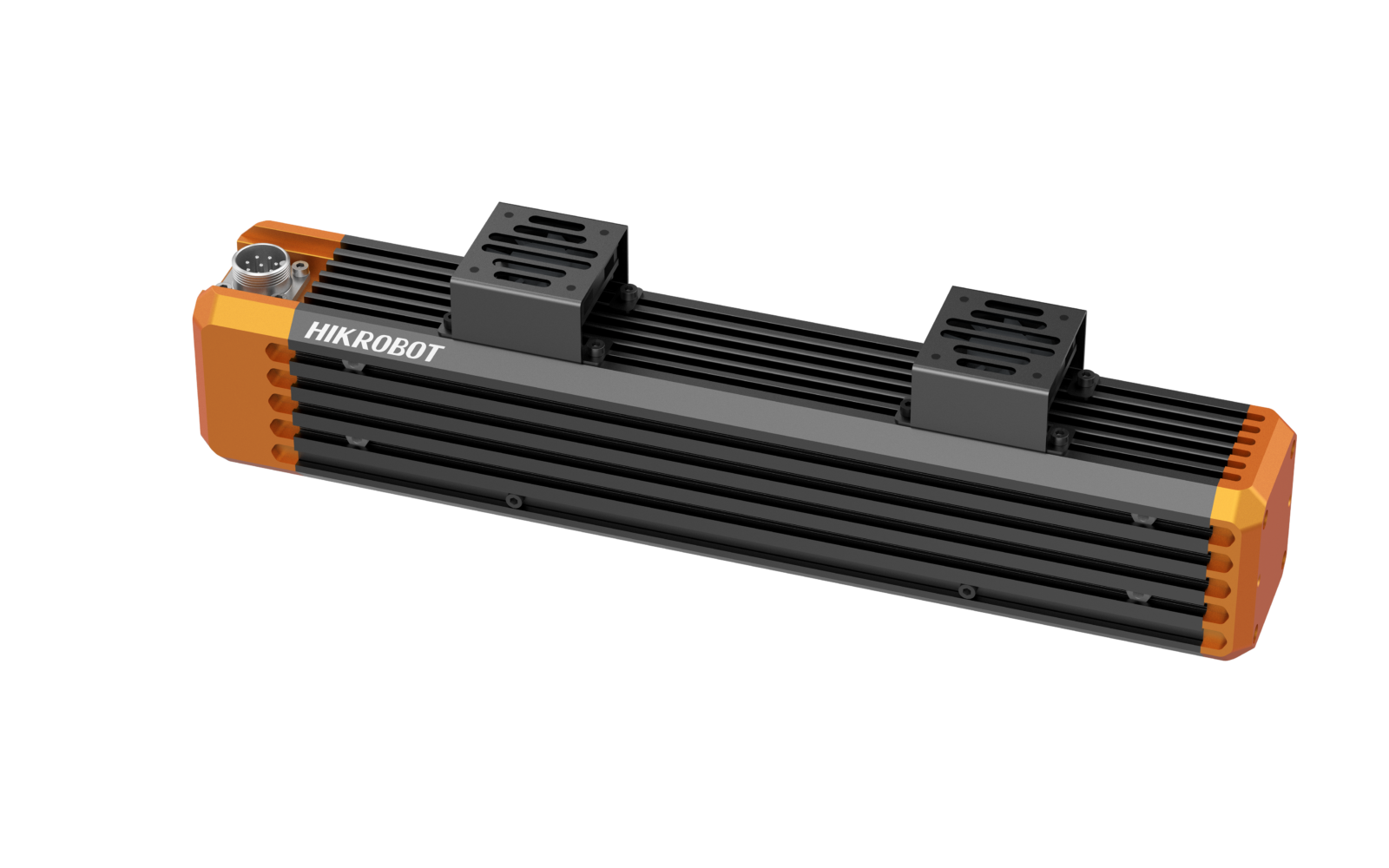

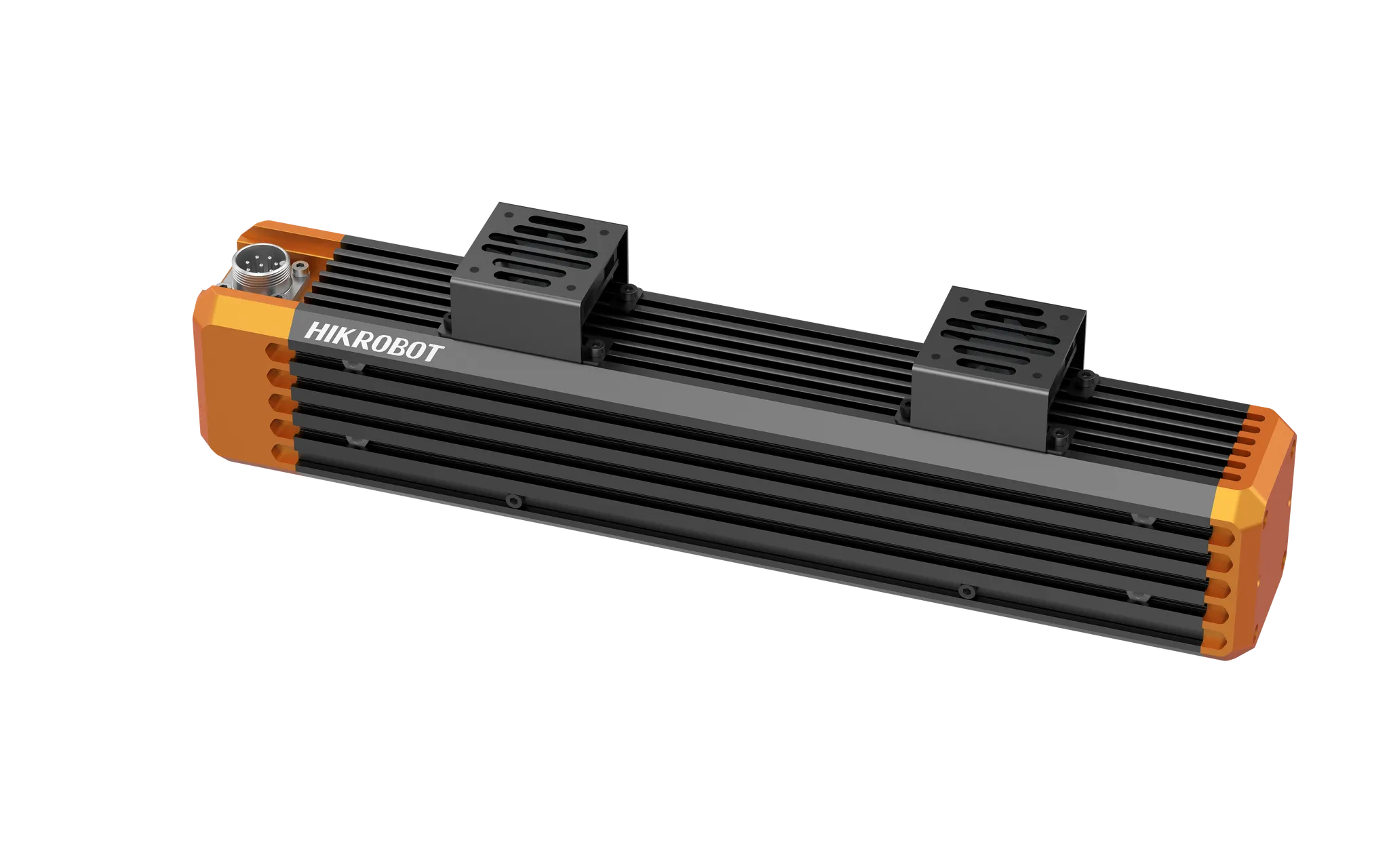

Line Light MV-LTDS-H-700-W
Provides high-power LED lamp beads combined with a highly focusing structure to achieve the illuminance of up to 1000K lux on the surface of light source.
- High-power LED array with tight-focus optics achieves up to 1000 klux at the light-source surface.
- An enclosure cooling fan extends light-source life.
- Multi-side nut slots allow flexible installation.
Camera Solutions
Line Light MV-LTDS-H-700-W is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LTDS-H-700-W. Key data: emitting area dimension 700 mm × 17 mm, color White, other customizable. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
An enclosure cooling fan extends light-source life. Multi-side nut slots allow flexible installation.
Product Highlights
High-power LED array with tight-focus optics achieves up to 1000 klux at the light-source surface. — An enclosure cooling fan extends light-source life. — Multi-side nut slots allow flexible installation.
Specifications
| Product Model | MV-LTDS-H-700-W |
|---|---|
| Type | MV-LTDS-H-700-W |
| Color | White, other customizable |
| Center Illuminance | ≥ 1000K lux @ WD = 50 mm |
| Color Temperature | 6000K to 7000K |
| Connector Type | 19M-8H |
| Dimension | 750 mm × 58 mm × 90.5 mm |
| LED Rows | 1 |
| Weight | 4.16 kg |
| Cable Length | Additional options |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Emitting Area Dimension | 700 mm × 17 mm |
| Power Consumption | 294 W |
