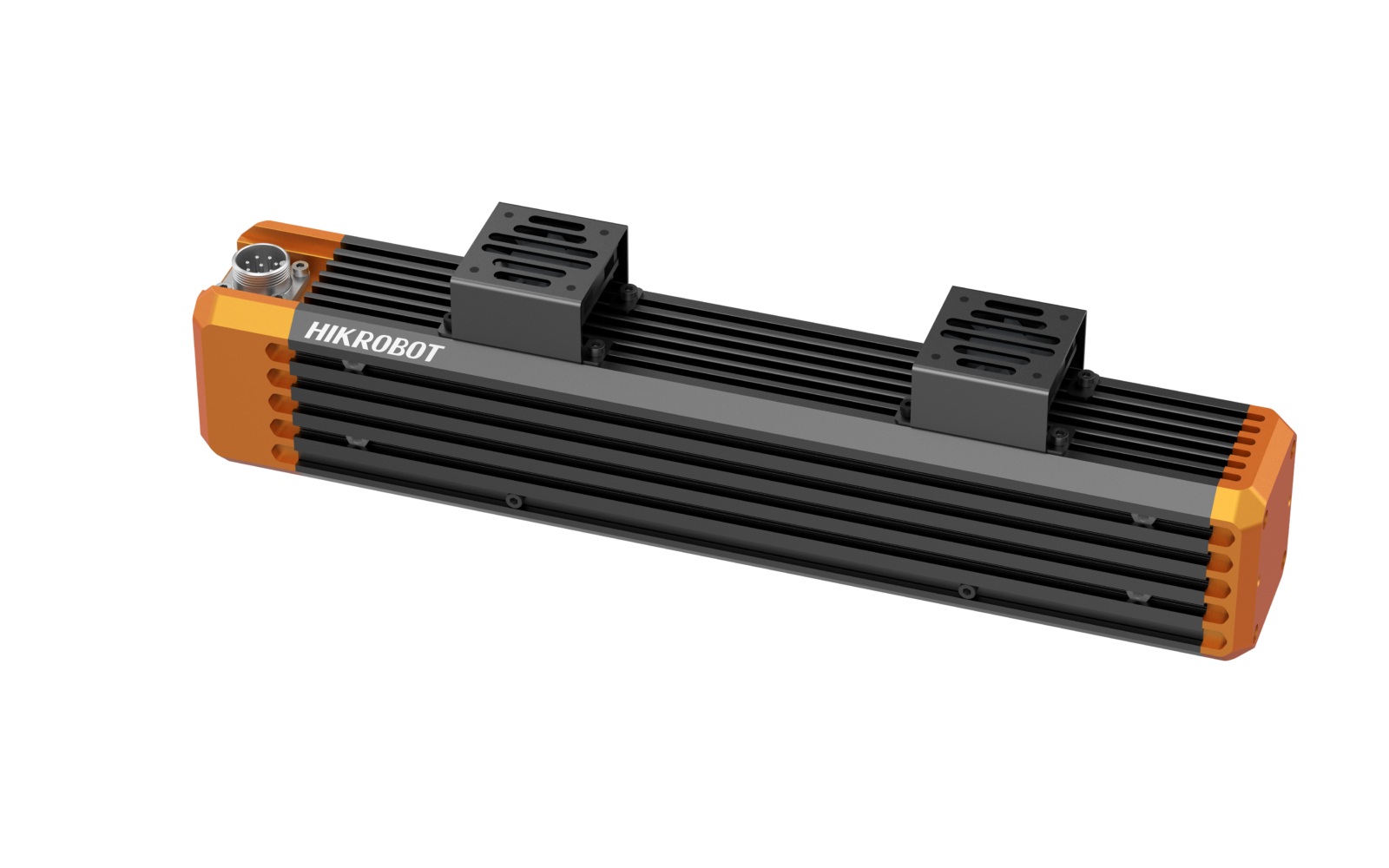

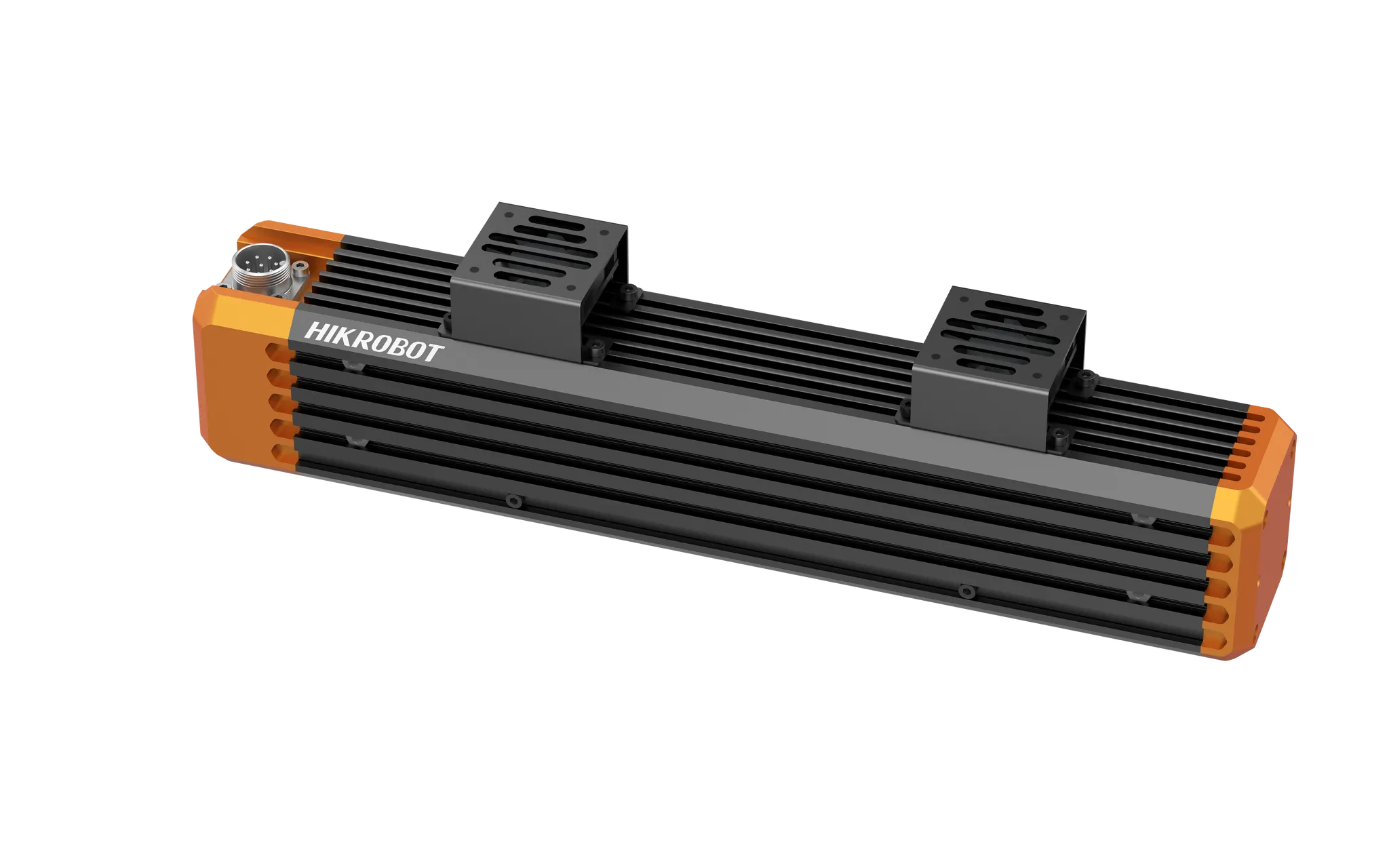

Line Light MV-LTDS-H-800-W
Provides high-power LED lamp beads combined with a highly focusing structure to achieve the illuminance of up to 1000K lux on the surface of light source.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
An enclosure cooling fan extends light-source life. Multi-side nut slots allow flexible installation.
Product Highlights
High-power LED array with tight-focus optics achieves up to 1000 klux at the light-source surface. — An enclosure cooling fan extends light-source life. — Multi-side nut slots allow flexible installation.
Specifications
| Product Model | MV-LTDS-H-800-W |
|---|---|
| Type | MV-LTDS-H-800-W |
| Color | White, other customizable |
| Center Illuminance | ≥ 1000K lux @ WD = 50 mm |
| Color Temperature | 6000K to 7000K |
| Connector Type | 19M-8H |
| Dimension | 850 mm × 58 mm × 90.5 mm |
| LED Rows | 1 |
| Weight | 4.68 kg |
| Cable Length | Additional options |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Emitting Area Dimension | 800 mm × 17 mm |
| Power Consumption | 336 W |
