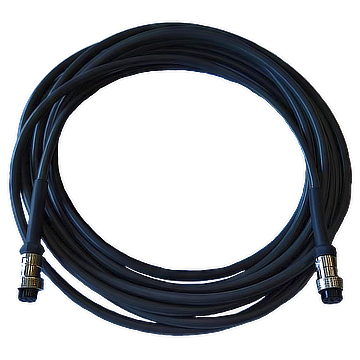

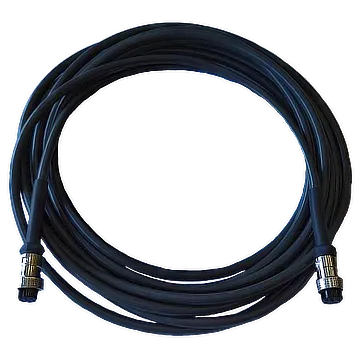

MV-LW-H-001-1-19M8A
Provides high-quality cable(s) for drag chain use scenarios.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
MV-LW-H-0**-1-19M8A extension cables pair with MV-LTDS-H line-scan lights. Available in various lengths for different installation distances; note that voltage drop increases with distance.
Product Highlights
High-quality drag-chain cables available. — MV-LW-H-0**-1-19M8A extension cables pair with MV-LTDS-H line-scan lights. — Available in various lengths for different installation distances; note that voltage drop increases with distance.
Specifications
| Product Model | MV-LW-H-001-1-19M8A |
|---|---|
| Type | MV-LW-H-001-1-19M8A |
| Temperature | Working temperature: 0 °C to 80 °C (32 °F to 176 °F) Storage temperature: –20 °C to 80 °C (–4 °F to 176 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Channel | 1 |
| Ingress Protection | IP55 (under correct installation) |
| Certification | RoHS 2.0 |
| End A Connector | 19M-8A |
| End B Connector | 19M-8A |
| Length | 1 m |
| Cable Diameter | Φ8.75 mm |
| Cable Jacket | PVC |
| Max 90 Bending Cycles | 2 million times |
| Min Bending Radius | Cable: 105 mm; Cable plus connector tail: 130 mm |
| Connector Durability | 500 times |
| Flame Resistance Rating | VW-1 |
| Insulation | ≥ 10 MΩ/KM |
| Withstand Voltage Capability | 300 V |
