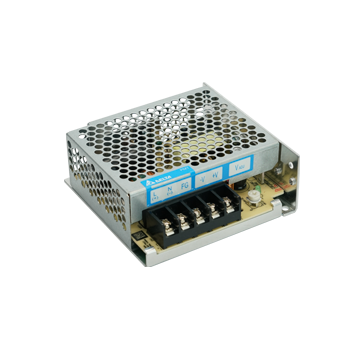

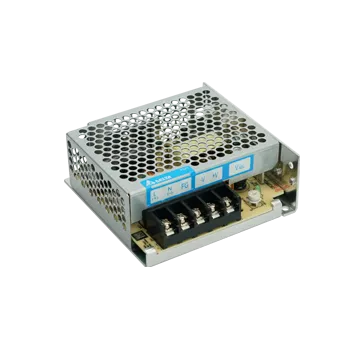

Power Supply_12V50W
The industrial power supply adopts terminal blocks as connectors, and can be used to power the device. Multiple specifications are available.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Product Highlights
Industrial power supply with terminal-block connectors; available in multiple specifications.
Specifications
| Product Model | LRS-50-12 |
|---|---|
| Type | Power Supply_12V50W |
| End A Connector | Terminal block (220 VAC Input) |
| End B Connector | Terminal block |
| Applicable Scenario | Static |
| Working Temperature | –10 °C to 70 °C (14 °F to 158 °F) (For temperatures above 50 °C, the output load decreases by 2.5% for every degree increase in temperature.) |
| Certification | CE,UL,CCC,NRCan,EAC |
| Packaging | Individual package |
| Input Voltage Range | 90 VAC ~ 264 VAC |
| Input Ac Current | 1.1 A @ 115 VAC 0.7 A @ 230 VAC |
| Output Power | 50 W max |
| Output Voltage | 12 V |
| Output Current | 0 A ~ 4.17 A |
| Over Current Protection | > 120% of rated current, hiccup mode, non-latching (auto-recovery) |
| Over Voltage Protection | Overvoltage protection range: 13.8 V to 16.2 V Protected mode: Turn off the output voltage, restart and restore. |
| MTBF | 700,000 h (Standard: Telcordia SR-332) |
