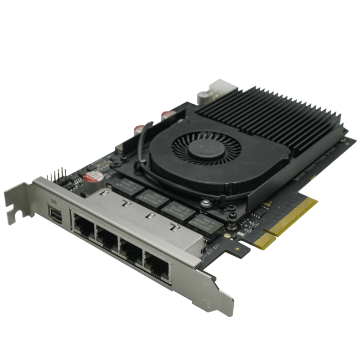

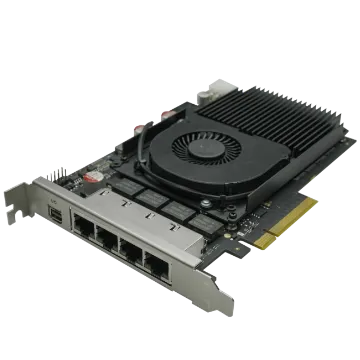

Quad 10GigE Frame Grabbers
Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
PCIe Gen3 ×8 interface with up to 40 Gbps bus bandwidth. On-card pre-processing reduces CPU load. Supports packet retransmission and event control. Multiple I/O connectors handle input and output. Includes an SDK for custom development. Complies with the GenICam standard.
Product Highlights
Supports GigE Vision V2.0 protocol with each channel at up to 10 Gbps. — PCIe Gen3 ×8 interface with up to 40 Gbps bus bandwidth. — On-card pre-processing reduces CPU load. — Supports packet retransmission and event control. — Multiple I/O connectors handle input and output. — Includes an SDK for custom development. — Complies with the GenICam standard.
Specifications
| Product Model | MV-GT1104P |
|---|---|
| Type | Quad 10GigE Frame Grabbers |
| Certification | CE, KC, RoHS |
| Interface | RJ45 × 4, supports PoE |
| On Board Memory | 4 GB DDR4-RAM |
| Interconnect | PCI-E gen3 × 8 |
| Delivery Bandwidth | 7000 MB/s (max. transmission bandwidth) 6750 MB/s (sustained transmission bandwidth) |
| Standard | GigE Vision V2.0 |
| Camera Type Supported | GigE industrial camera, 10 GigE industrial camera, and 2.5 GigE industrial camera |
| Camera Quantity Supported | 4 at most (total bandwidth up to 40 Gbps) |
| Camera Connection Speed | 10 Gbps |
| Stream | 4 |
| Stream Indicator | 4 pairs |
| Pixel Format | Mono 8/10/10p/12/12p/16 Bayer 8/10/10p/12/12p YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8 |
| I/O Type | Configurable input/output × 6, compatible with single-ended/differential, and supports cascading of multiple frame grabbers I/O on bracket: Line 0/1/2/3 supports 3.3 VDC to 24 VDC input, and 3.3 VDC output, N-terminal reference voltage is adjustable simultaneously I/O on PCB: Line 4/5 supports 3.3 VDC to 24 VDC input and 3.3 VDC output |
| Connector | I/O on bracket: Mini-DP, female, 20-pin I/O on PCB: 9-pin header (2.54 mm pitch, 2 x 5, 10 pin blind holes) |
| Power Consumption | Typ. 28.5 W |
| Dimension | 181 mm × 126.3 mm × 22.4 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client Software | MVS |
| Operating System | Windows 7/10/11 |
| Bus Indicator | 1 |
