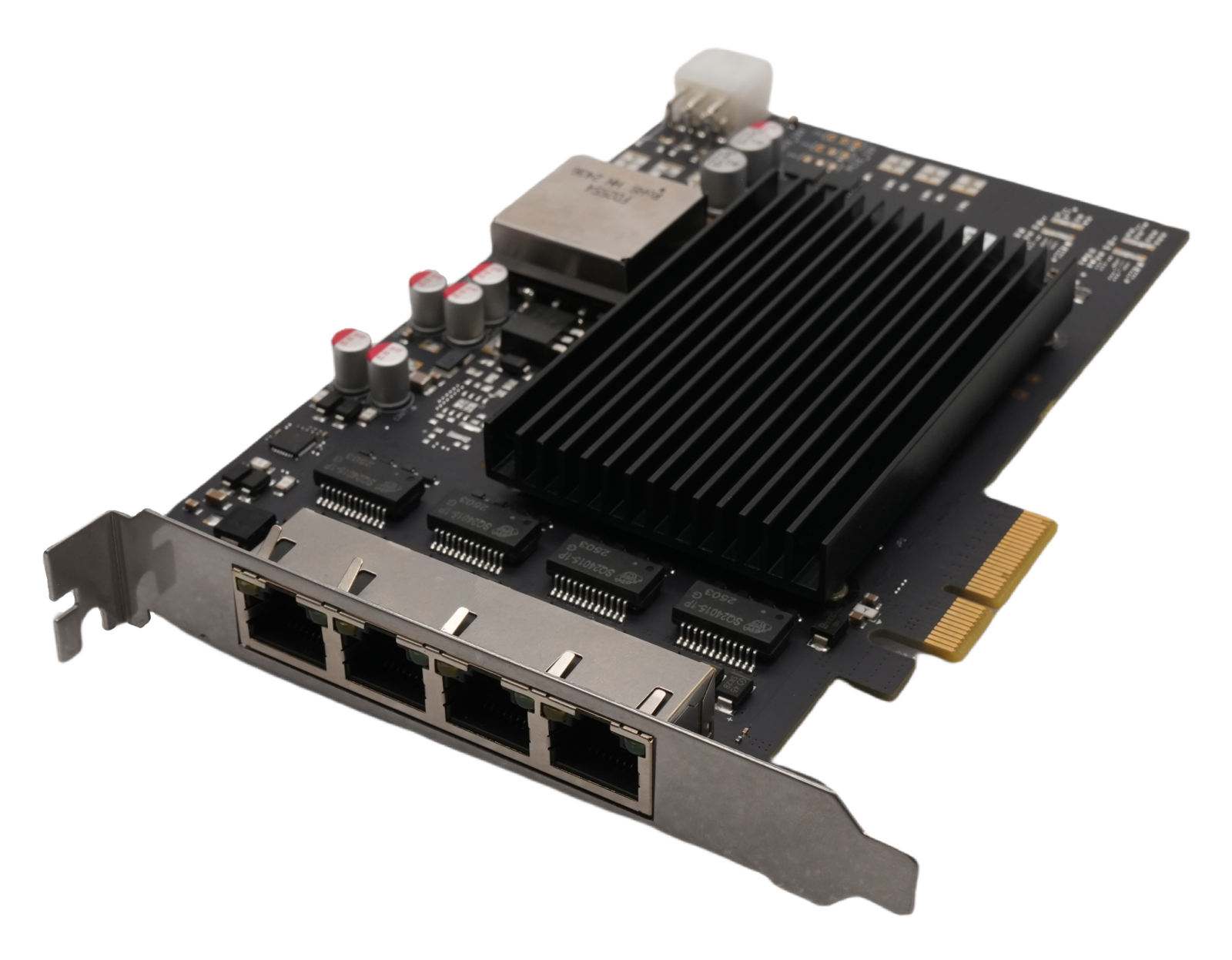

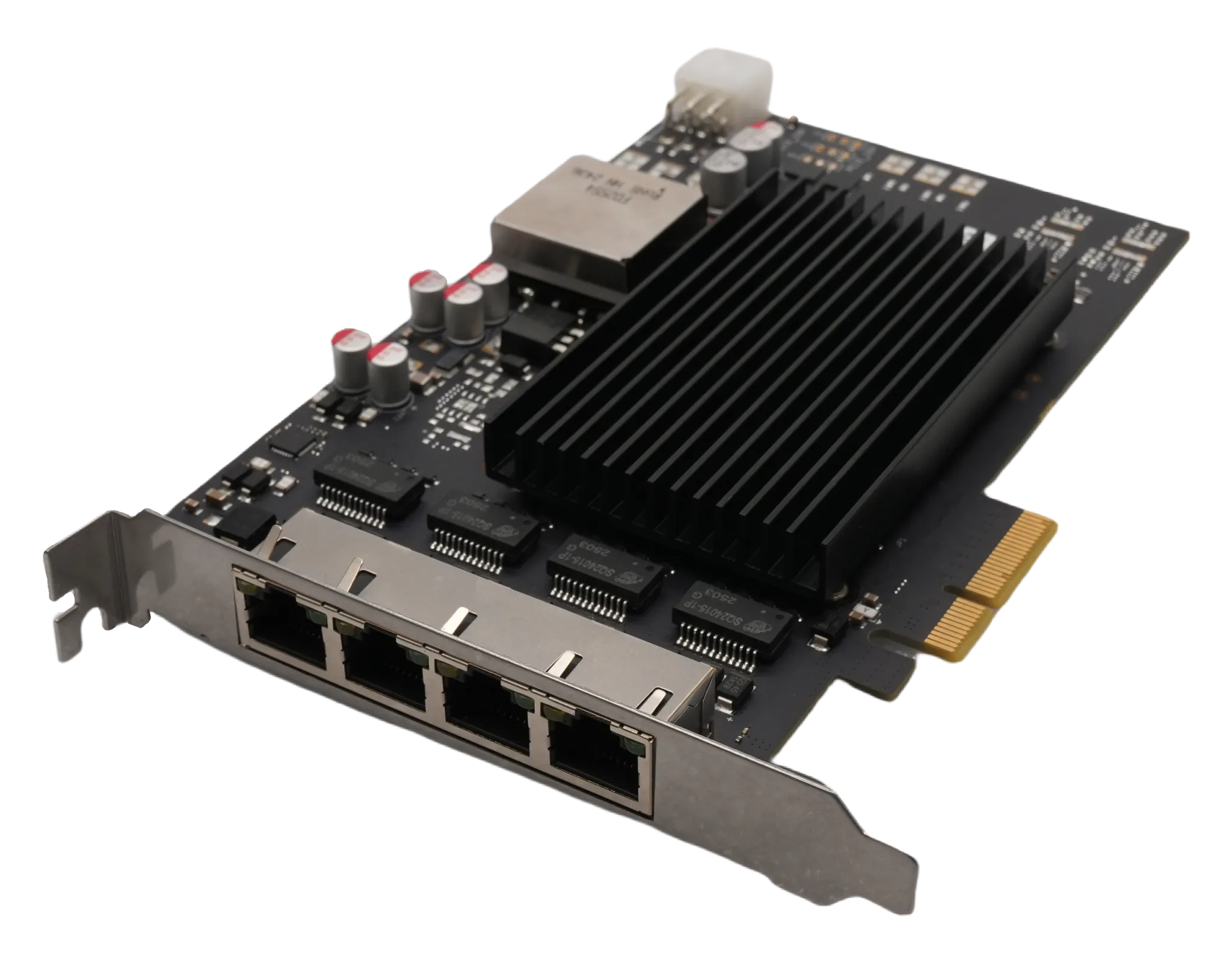

Quad 2.5G Ethernet Adaptor, POE
Supports IEEE 802.3 protocol.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
PCI-E Gen2 ×4 bus interface. Multiple independent 2.5 GigE PoE ports. Supports 10/100/1000/2500 Mbps network rates. Complies with IEEE 802.3af; each connector delivers up to 15.4 W. Jumbo frames up to 9 KB supported. Fits 3U and 4U chassis.
Product Highlights
Complies with the IEEE 802.3 standard. — PCI-E Gen2 ×4 bus interface. — Multiple independent 2.5 GigE PoE ports. — Supports 10/100/1000/2500 Mbps network rates. — Complies with IEEE 802.3af; each connector delivers up to 15.4 W. — Jumbo frames up to 9 KB supported. — Fits 3U and 4U chassis.
Specifications
| Product Model | MV-GE4004P |
|---|---|
| Type | Quad 2.5G Ethernet Adaptor, POE |
| Certification | CE, RoHS, KC |
| Interface | RJ45 × 2 RJ45 × 4 |
| Interconnect | PCI-E gen2 × 4 |
| Delivery Bandwidth | 2000 MB/s (max. transmission bandwidth) |
| Standard | IEEE 802.3 |
| Camera Type Supported | GigE industrial camera, 2.5 GigE industrial camera |
| Camera Quantity Supported | 2 at most 4 at most |
| Camera Connection Speed | 10/100/1000/2500 Mbps |
| Stream | 2 4 |
| Power Consumption | 4 W (without POE), 6.1 W (without POE) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Operating System | Windows 7/10/11, Ubuntu18.04 to 24.04 on 64-bit Linux |
| Weight | Approx. 202 g (0.4 lb.) Approx. 210 g (0.5 lb.) |
