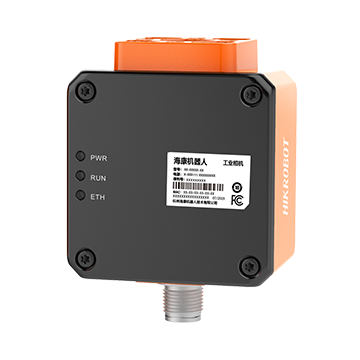

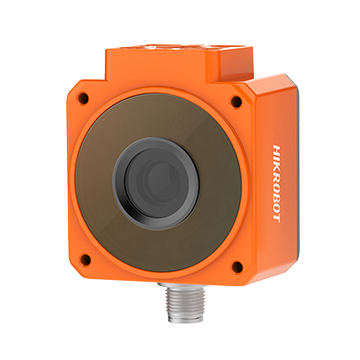

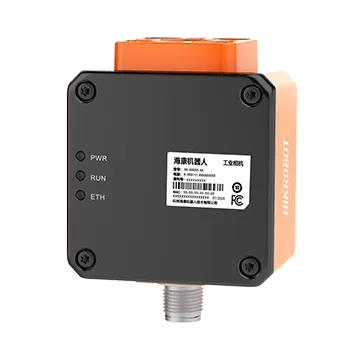

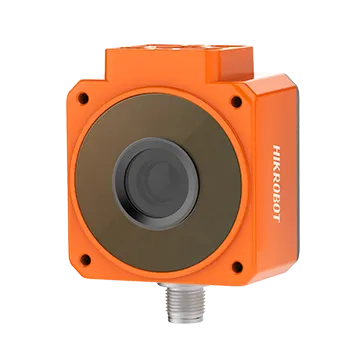

SC2000A AGV Guide Sensor，0.5MP，Color，M12-3mm focal length，focus 100mm
Built-in ribbon localization algorithm to effectively localize ribbon.
- Built-in ribbon localisation algorithm for precise ribbon location.
- Built-in algorithm reads 2D code tapes and array codes.
- Reads reliably even with spots, defects, or low contrast.
- A CMOS sensor delivers high-quality images.
- Multiple indicators display status for easy commissioning.
- M12 lens mount for a large field of view.
- Optimised optical design provides uniform illumination and handles strong reflections.
Camera Solutions
SC2000A AGV Guide Sensor, 0.5MP, Color, M12-3mm focal length, focus 100mm is a smart camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-SC2005AC-03WBN. Key data: resolution 800 × 600, max frame rate 96 fps, data interface Fast Ethernet (100 Mbit/sec), RS-485. Typical use is stand-alone inspection and identification directly at the line. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Built-in algorithm reads 2D code tapes and array codes. Reads reliably even with spots, defects, or low contrast. A CMOS sensor delivers high-quality images. Multiple indicators display status for easy commissioning. M12 lens mount for a large field of view. Optimised optical design provides uniform illumination and handles strong reflections.
Product Highlights
Built-in ribbon localisation algorithm for precise ribbon location. — Built-in algorithm reads 2D code tapes and array codes. — Reads reliably even with spots, defects, or low contrast. — A CMOS sensor delivers high-quality images. — Multiple indicators display status for easy commissioning. — M12 lens mount for a large field of view. — Optimised optical design provides uniform illumination and handles strong reflections.
Specifications
| Product Model | MV-SC2005AC-03WBN |
|---|---|
| Type | SC2000A AGV Guide Sensor，0.5MP，Color，M12-3mm focal length，focus 100mm |
| Communication Protocol | SmartSDK, UDP, Serial, Modbus RTU, PROFINET, EthernetIP |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 4.8 μm × 4.8 μm |
| Sensor Size | 1/3.6" |
| Resolution | 800 × 600 |
| Max Frame Rate | 96 fps |
| Gain | 1 dB to 330 dB |
| Exposure Time | 20 μs to 9000 μs |
| Pixel Format | RGB |
| Mono Color | Color |
| Data Interface | Fast Ethernet (100 Mbit/sec), RS-485 |
| Digital I/O | 12-pin M12 connector provides power supply and RS-485 × 1 |
| Power Supply | 24 VDC |
| Focal Length | 3.4 mm |
| Working Distance | 100 mm ± 5 mm |
| Dimension | 68 mm × 60 mm × 42.2 mm (2.7" × 2.4" × 1.7") |
| Weight | Approx. 200 g (0.4 lb.) |
| Ingress Protection | IP65 (with proper installation of waterproof lens cap) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 10% RH to 90% RH (no condensation) |
| Client Software | IDMVS |
| Certification | CE, RoHS |
| Symbologies | 2-dimensional codes: DM-12, DM-14 |
| Max Reading Speed | 83 codes/sec |
| Max Running Speed | 3 m/sec (it is the AGV's max. running speed) |
| Max Power Consumption | 18 W @ 24 VDC (self light source enabled) 3 W @ 24 VDC (self light source disabled) |
| Displacement Accuracy | 0.1 mm |
| Angle Accuracy | 0.1° |
| Field Of View | 86.9° |
| Field Of View Range | 114 mm × 85 mm |
