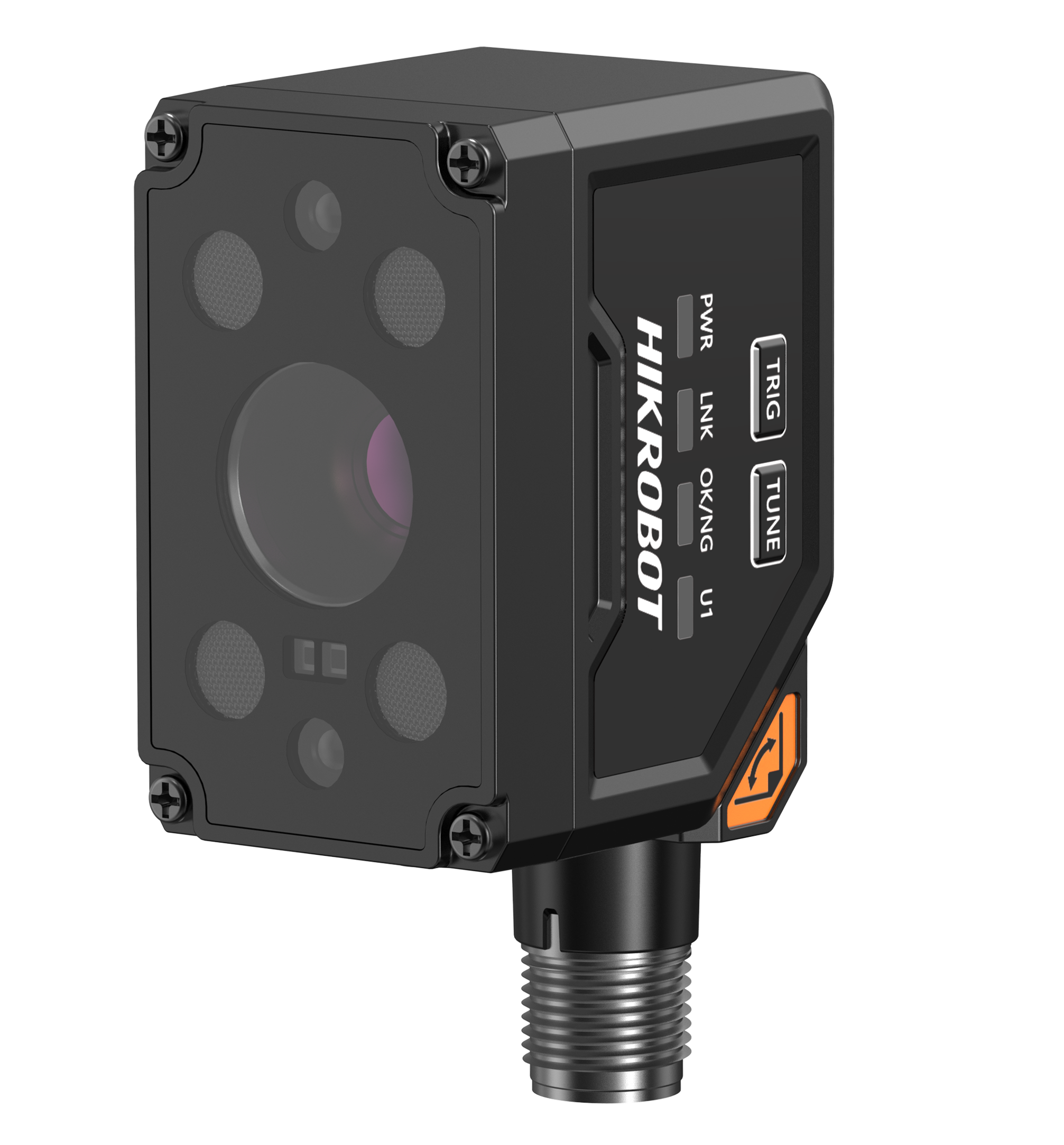

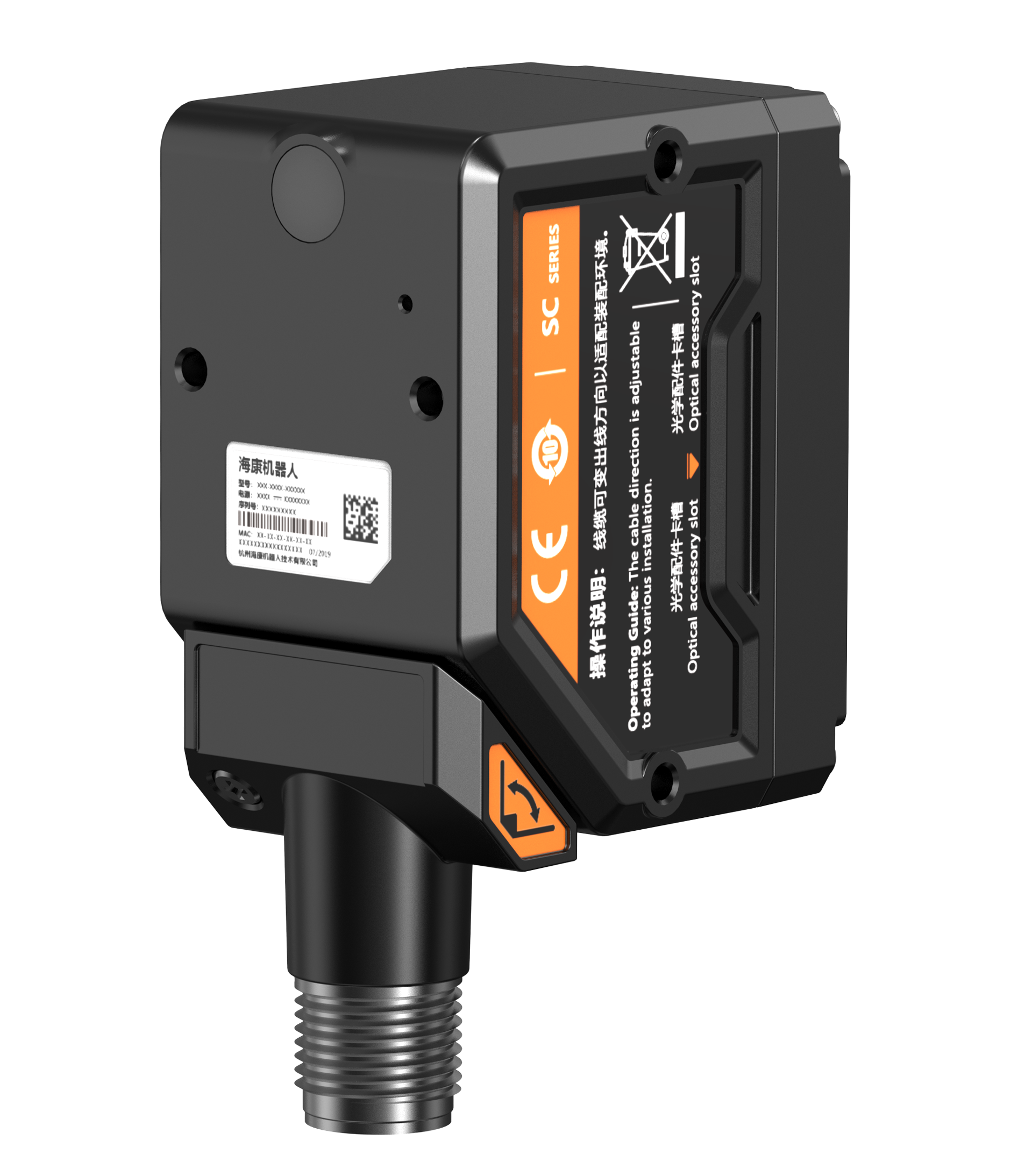

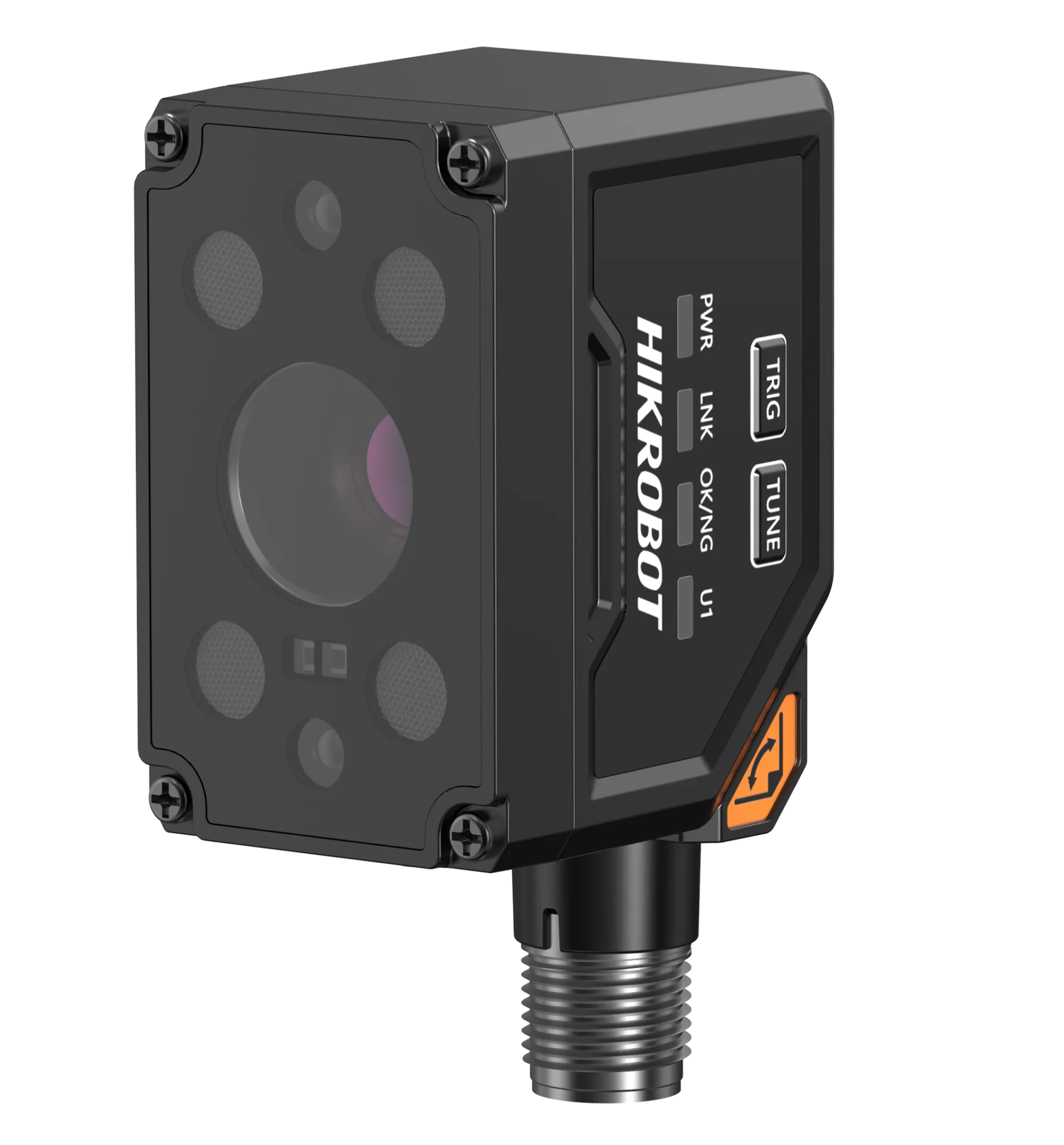

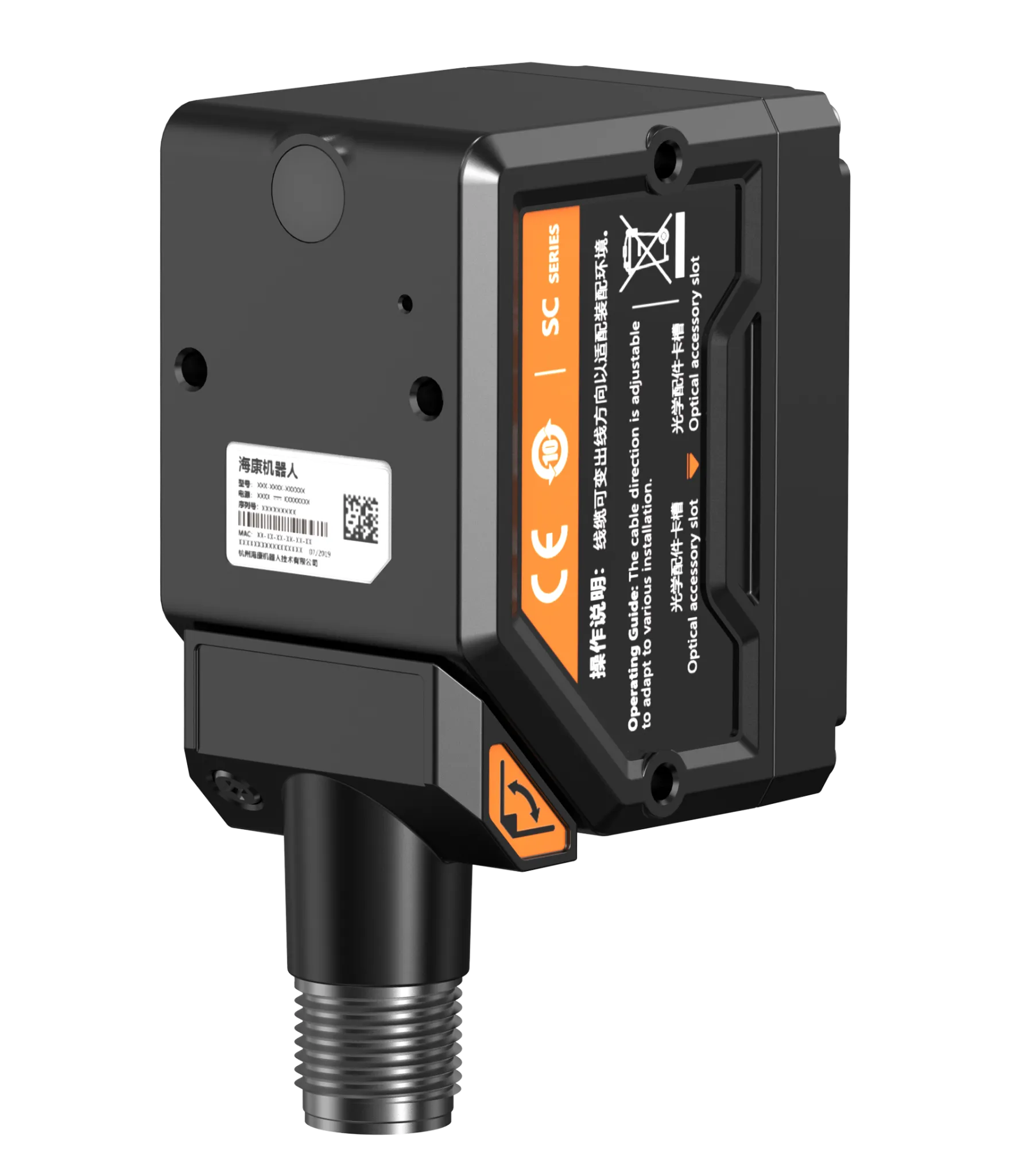

SC2000X series vision sensor，1.3MP，Mono，12mm focal length

Name: SC2000X series vision sensor, 1.3MP, Mono, 12mm focal length
Brand: HIKROBOT
SKU: MV-SC2013XM-12M-WBN

Adopts embedded hardware platform for high-speed image processing.

Send inquiry

Download datasheet (PDF)

Highlights

An embedded hardware platform drives high-speed image processing.
Built-in positioning and measurement algorithms handle counting, presence, measurement, and recognition.
Multiple I/O interfaces carry input and output signals.
Several indicators display device status.
An integrated light source keeps brightness uniform across the field.
Speaks multiple protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, and EtherNet/IP.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-SC2013XM-12M-WBN Category: Smart Camera

SC2000X series vision sensor, 1.3MP, Mono, 12mm focal length is a smart camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-SC2013XM-12M-WBN. Key data: resolution 1280 × 1024, max frame rate 55 fps, data interface Fast Ethernet (100 Mbit/s). Typical use is stand-alone inspection and identification directly at the line. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Built-in positioning and measurement algorithms handle counting, presence, measurement, and recognition. Multiple I/O interfaces carry input and output signals. Several indicators display device status. An integrated light source keeps brightness uniform across the field. Speaks multiple protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, and EtherNet/IP.

SC2000X series vision sensor，1.3MP，Mono，12mm focal length (MV-SC2013XM-12M-WBN) at a glance: 1280 × 1024 resolution, CMOS, global shutter sensor, 1/4" sensor format, up to 55 fps, Mono output, Fast Ethernet (100 Mbit/s) interface, RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP protocols and Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9" × 1.2" × housing. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

An embedded hardware platform drives high-speed image processing. — Built-in positioning and measurement algorithms handle counting, presence, measurement, and recognition. — Multiple I/O interfaces carry input and output signals. — Several indicators display device status. — An integrated light source keeps brightness uniform across the field. — Speaks multiple protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, and EtherNet/IP.

Specifications

Product Model	MV-SC2013XM-12M-WBN
Type	SC2000X series vision sensor，1.3MP，Mono，12mm focal length
Vision Tool	Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness analysis, L2L angle, diameter measurement, line angle Existence: Existence detection, anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, line existence Count: Learning-based count, spot count, edge count, contour count, pattern count Recognition: Multi-object count, category recognition, code recognition, OCR Logic: Calculator, if module, logic judge, condition judge, string comparison, combination judge, format output Defect detection: Anomaly detection Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture
Solution Capacity	Supports solution importing and exporting, up to 16 solutions and 40 modules can be stored.
Communication Protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Sensor Type	CMOS, global shutter
Pixel Size	2.7 μm × 2.7 μm
Sensor Size	1/4"
Resolution	1280 × 1024
Max Frame Rate	55 fps
Gain	0 dB to 29 dB (analog gain)
Exposure Time	35 μs to 100 ms
Pixel Format	Mono 8
Mono Color	Mono
Data Interface	Fast Ethernet (100 Mbit/s)
Digital I/O	17-pin M12 connector provides power and I/O, including isolated input (Line 0/1) × 2, isolated output (Line 2/3) × 2, RS-232 × 1 Supports device triggering via pressing side button.
Power Supply	24 VDC
Power Consumption	Avg.: 5 W @ 24 VDC (light source enabled) Max.: 12 W @ 24 VDC (light source enabled)
Lens Mount	M12-mount, mechanical autofocus supported
Focal Length	12 mm
Lens Cap	Transparent lens cap by default. Half-polarized and fully-polarized caps are optional.
Light Source	White light by default. Red, blue, IR, UV, and two-color (red/blue) lights are optional.
Aiming System	2 green LED lights
Indicator	Power indicator (PWR), network indicator (LNK), result indicator (OK/NG), user-defined indicator (U1)
Dimension	Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9" × 1.2" × 1.6") Right angle: 51.5 mm × 31.5 mm × 61 mm (2.0" × 1.2" × 2.4")
Weight	118 g (0.3 lb.)
Ingress Protection	IP65
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration Resistance	Meets standard IEC 60068-2-6:2007. Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock Resistance	Meets standard IEC 60068-2-27:2008. Device only: 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Client Software	SCMVS
Certification	CE, KC
