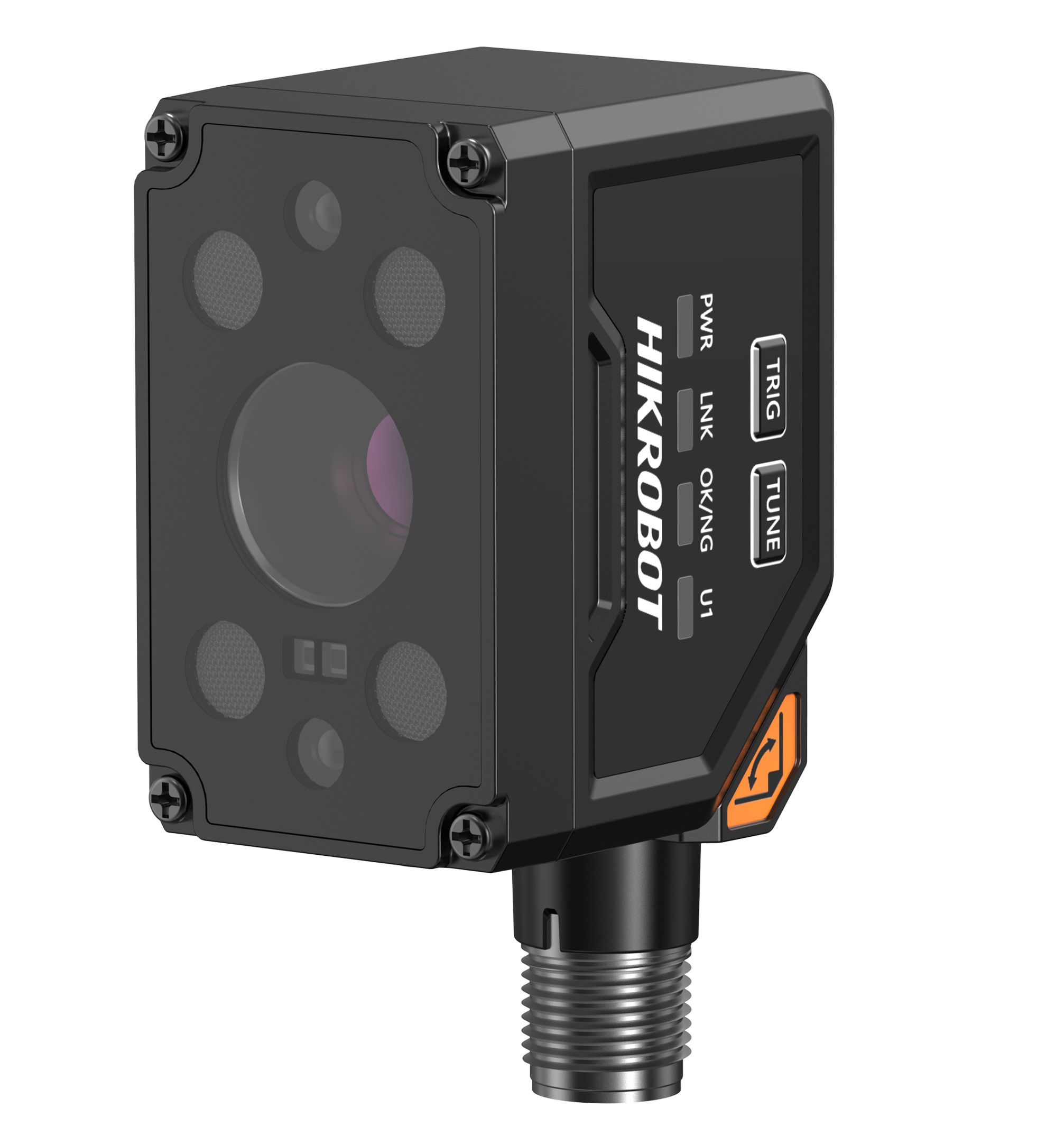

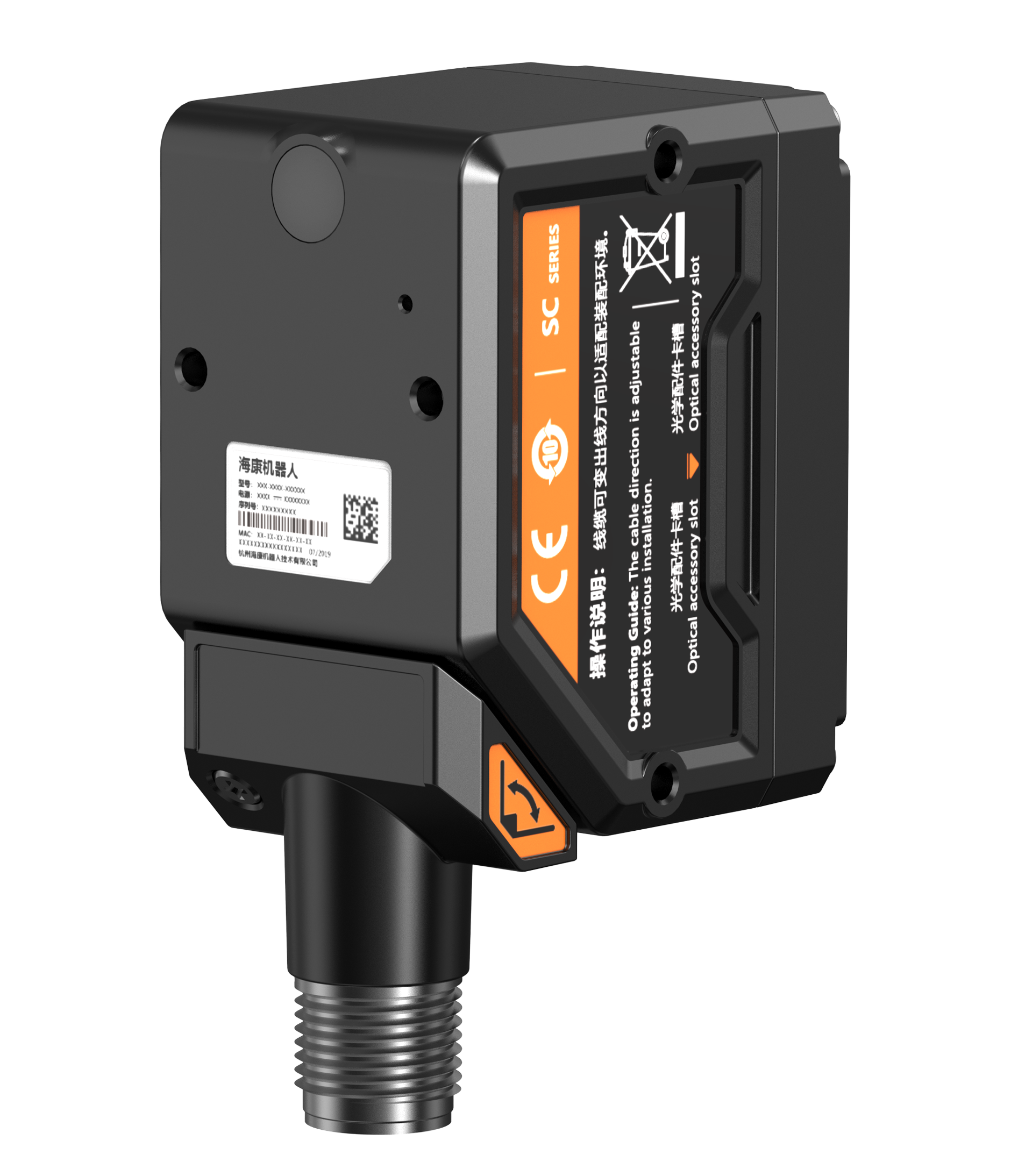

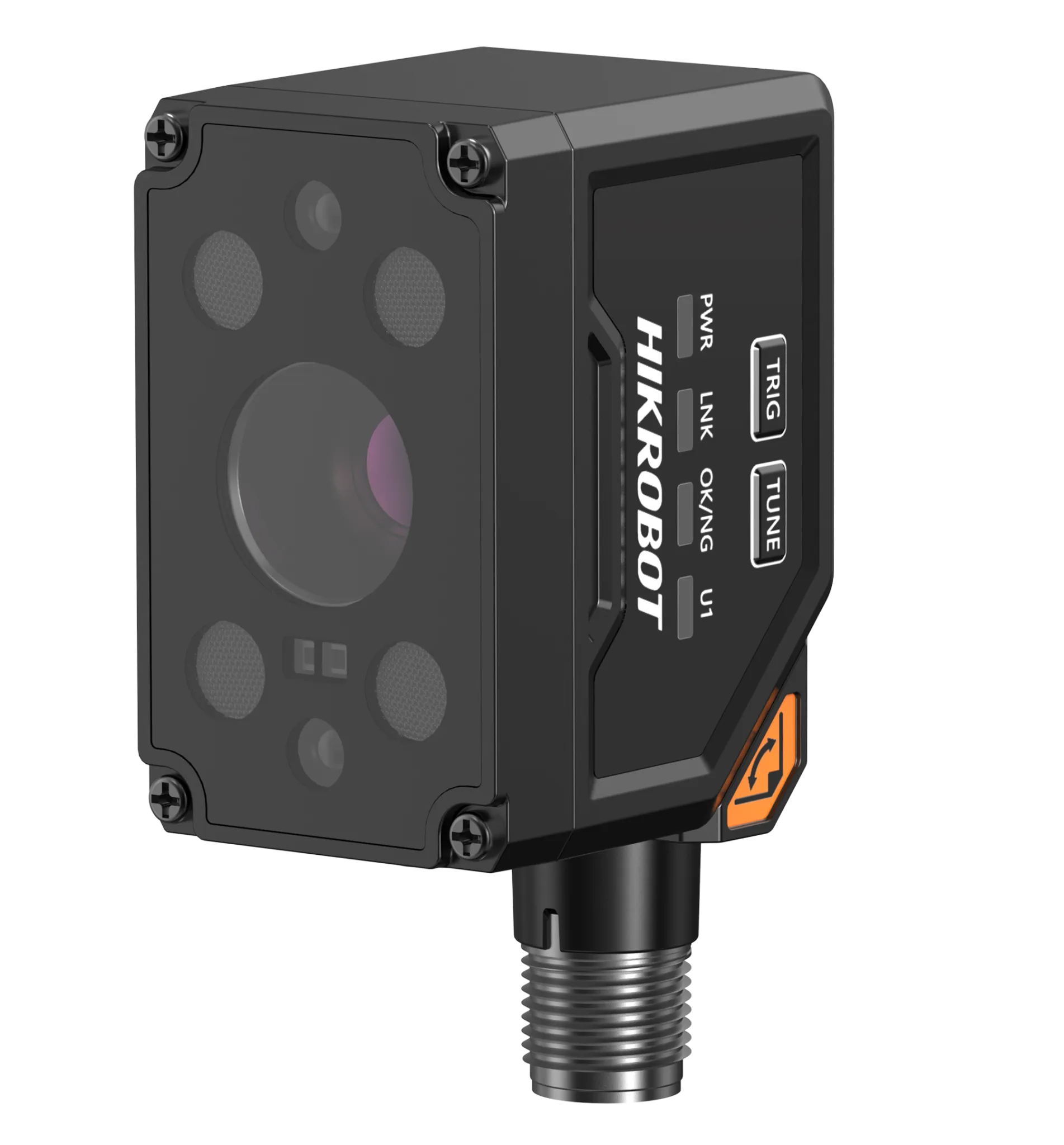

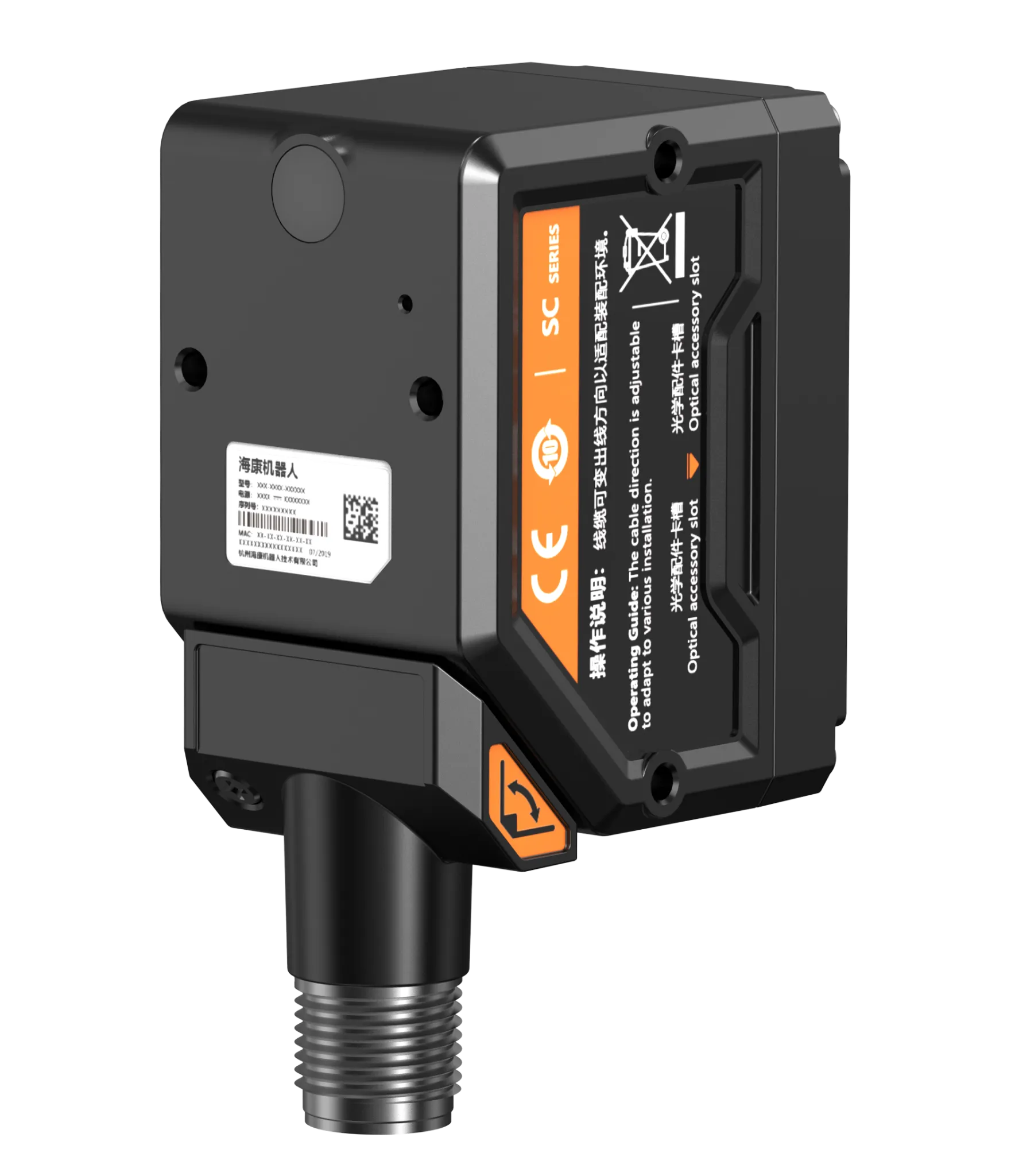

SC2000X series vision sensor，2.4MP，Mono，12mm focal length
Adopts embedded hardware platform for high-speed image processing.
Camera Solutions
Beschreibung
Built-in positioning and measurement algorithms handle counting, presence, measurement, and recognition. Multiple I/O interfaces carry input and output signals. Several indicators display device status. An integrated light source keeps brightness uniform across the field. Speaks multiple protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, and EtherNet/IP.
Product Highlights
An embedded hardware platform drives high-speed image processing. — Built-in positioning and measurement algorithms handle counting, presence, measurement, and recognition. — Multiple I/O interfaces carry input and output signals. — Several indicators display device status. — An integrated light source keeps brightness uniform across the field. — Speaks multiple protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, and EtherNet/IP.
Specifications
| Product Model | MV-SC2023XM-12M-WBN |
|---|---|
| Type | SC2000X series vision sensor，2.4MP，Mono，12mm focal length |
| Vision Tool | Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness analysis, L2L angle, diameter measurement, line angle Existence: Existence detection, anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, line existence Count: Learning-based count, spot count, edge count, contour count, pattern count Recognition: Multi-object count, category recognition, code recognition, OCR Logic: Calculator, if module, logic judge, condition judge, string comparison, combination judge, format output Defect detection: Anomaly detection Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture |
| Solution Capacity | Supports solution importing and exporting, up to 16 solutions and 40 modules can be stored. |
| Communication Protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 2.2 μm × 2.2 μm |
| Sensor Size | 1/3.52" |
| Resolution | 1920 × 1280 |
| Max Frame Rate | 75 fps |
| Gain | 0 dB to 48 dB |
| Exposure Time | 36 μs to 100 ms |
| Pixel Format | Mono 8 |
| Mono Color | Mono |
| Data Interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including isolated input (Line 0/1) × 2, isolated output (Line 2/3) × 2, RS-232 × 1 Supports device triggering via pressing side button. |
| Power Supply | 24 VDC |
| Power Consumption | Avg.: 5 W @ 24 VDC (light source enabled) Max.: 12 W @ 24 VDC (light source enabled) |
| Lens Mount | M12-mount, mechanical autofocus supported |
| Focal Length | 12 mm |
| Lens Cap | Transparent lens cap by default. Half-polarized and fully-polarized caps are optional. |
| Light Source | White light by default. Red, blue, IR, UV, and two-color (red/blue) lights are optional. |
| Aiming System | 2 green LED lights |
| Indicator | Power indicator (PWR), network indicator (LNK), result indicator (OK/NG), user-defined indicator (U1) |
| Dimension | Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9" × 1.2" × 1.6") Right angle: 51.5 mm × 31.5 mm × 61 mm (2.0" × 1.2" × 2.4") |
| Weight | 118 g (0.3 lb.) |
| Ingress Protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration Resistance | Meets standard IEC 60068-2-6:2007. Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock Resistance | Meets standard IEC 60068-2-27:2008. Device only: 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client Software | SCMVS |
| Certification | CE, KC |
