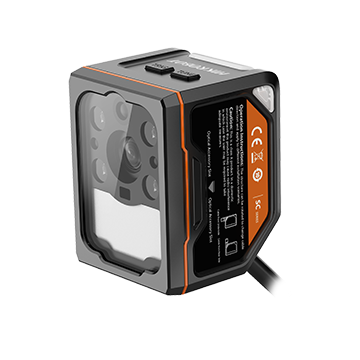

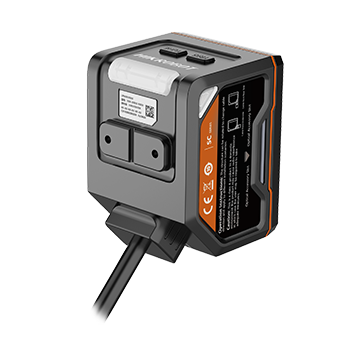

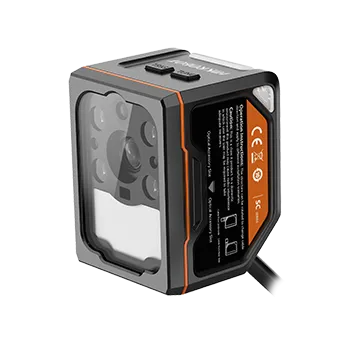

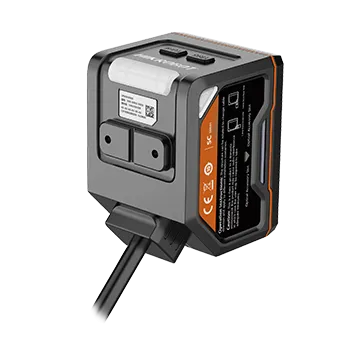

SC3000X series vision sensor，5MP，Mono，08mm focal length，One Cable
Adopts embedded hardware platform to realize high-speed image processing.
Camera Solutions
Beschreibung
Built-in algorithms handle high-precision positioning, measurement, and recognition for counting, defect detection, presence, and location tasks. Multiple IO interfaces carry input and output signals. Multi-angle visual indicator shows device status in real time for easy commissioning and maintenance. Offers polarized, diffused, and clear optical options to adapt to different environments. Speaks RS-232, TCP, UDP, FTP, Modbus, PROFINET, and EtherNet/IP.
Product Highlights
An embedded hardware platform drives high-speed image processing. — Built-in algorithms handle high-precision positioning, measurement, and recognition for counting, defect detection, presence, and location tasks. — Multiple IO interfaces carry input and output signals. — Multi-angle visual indicator shows device status in real time for easy commissioning and maintenance. — Offers polarized, diffused, and clear optical options to adapt to different environments. — Speaks RS-232, TCP, UDP, FTP, Modbus, PROFINET, and EtherNet/IP.
Specifications
| Product Model | MV-SC3050XM-08M-WBN-S |
|---|---|
| Type | SC3000X series vision sensor，5MP，Mono，08mm focal length，One Cable |
| Vision Tool | Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, line angle Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection Count: Spot count, edge count, contour count, pattern count, learning-based count Recognition: Multi-object count, code recognition, category recognition, classification registration, object registration, OCR, learning-based OCR, character horizontal stripe detection Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture Deep learning: DL classification, DL object detection Defect detection: Anomaly detection Industry tools: OCR and defect detection |
| Solution Capacity | Supports importing and exporting project, up to 32 projects can be stored |
| Communication Protocol | RS-232, TCP, UDP, FTP, PROFINET, ModBus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/1.45" |
| Resolution | 2432 × 2048 |
| Max Frame Rate | 40 fps |
| Gain | 0 dB to 15 dB |
| Exposure Time | 6 μs to 1 sec |
| Pixel Format | Mono 8 |
| Mono Color | Mono |
| Data Interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including opto-isolated input (LINE 0/1/2) × 3, opto-isolated output (LINE 3/4/5) × 3, and RS-232 × 1 Supports triggering device via pressing top trigger button |
| Power Supply | 24 VDC |
| Lens Mount | M12-mount, mechanical autofocus supported |
| Focal Length | 8 mm |
| Lens Cap | Polarized + diffuser + full-transparent lens cap |
| Light Source | White spot light source. Red/blue/IR point light source is optional |
| Aiming System | 1 LED |
| Indicator | Multi-angle visual indicator |
| Dimension | 43 mm × 57 mm × 45.9 mm (1.7" × 2.2" × 1.8") |
| Weight | Approx. 200 g (0.4 lb.) |
| Ingress Protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration Resistance | Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock Resistance | Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client Software | SCMVS |
| Certification | CE, KC |
| Power Consumption 2 | Avg. 7 W @ 24 VDC (light source enabled) Max. 22 W @ 24 VDC (light source enabled) |
