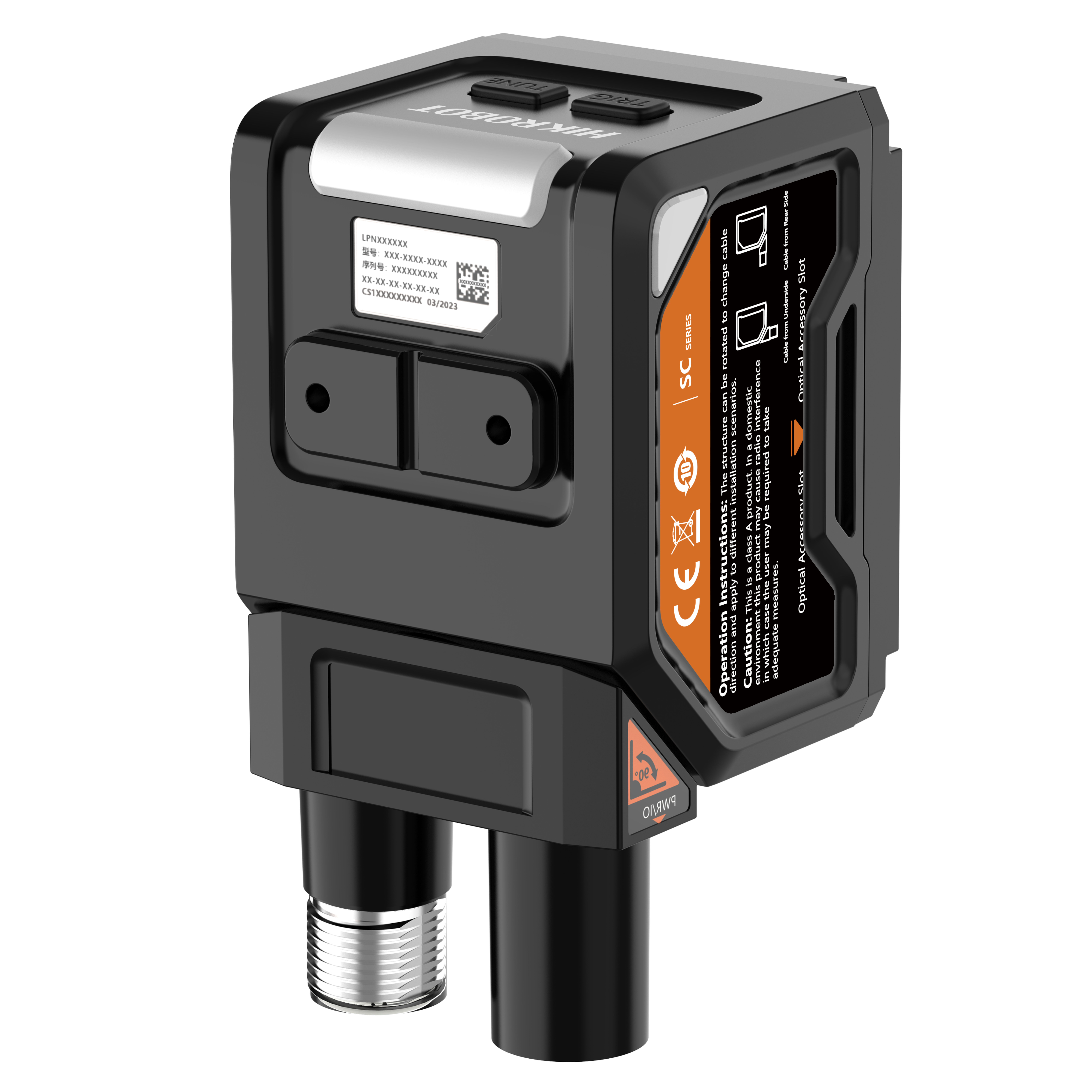

SC3000X series vision sensor，6MP，Mono，08mm focal length
Adopts embedded hardware platform to realize high-speed image processing.
Camera Solutions
Beschreibung
High-precision built-in algorithms handle positioning, measurement, recognition, counting, defect detection, and presence checks. Communicates over RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP, and more. Multiple IO interfaces carry input and output signals. A 360° indicator shows device status in real time for easy debugging and maintenance. Rotatable cable tail suits tight spaces. Polarised and fully transparent optical lighting adapts well to varied environments. IP67 sealing stands up to harsh industrial environments.
Product Highlights
An embedded hardware platform drives high-speed image processing. — High-precision built-in algorithms handle positioning, measurement, recognition, counting, defect detection, and presence checks. — Communicates over RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP, and more. — Multiple IO interfaces carry input and output signals. — A 360° indicator shows device status in real time for easy debugging and maintenance. — Rotatable cable tail suits tight spaces. — Polarised and fully transparent optical lighting adapts well to varied environments. — IP67 sealing stands up to harsh industrial environments.
Specifications
| Product Model | MV-SC3060XM-08M-WBN |
|---|---|
| Type | SC3000X series vision sensor，6MP，Mono，08mm focal length |
| Vision Tool | Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, line angle Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection Count: Spot count, edge count, contour count, pattern count, learning-based count Recognition: Multi-object count, code recognition, category recognition, classification registration, object registration, OCR, learning-based OCR, character horizontal stripe detection Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture Deep learning: DL classification, DL object detection Defect detection: Anomaly detection Industry tools: OCR and defect detection |
| Solution Capacity | Supports importing and exporting solutions, up to 32 solutions can be stored. |
| Communication Protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor Type | CMOS, rolling shutter |
| Pixel Size | 2 μm × 2 μm |
| Sensor Size | 1/2.4" |
| Resolution | 3200 × 1920 |
| Max Frame Rate | 20 fps |
| Gain | 0 dB to 33 dB |
| Exposure Time | 540 μs to 200 ms |
| Pixel Format | Mono 8 |
| Mono Color | Mono |
| Data Interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including isolated input (Line 0/1/2) × 3, isolated output (Line 3/4/5) × 3, RS-232 × 1 Supports device triggering via pressing top trigger button |
| Power Supply | 12 VDC to 24 VDC |
| Lens Mount | M12-mount, mechanical focus supported |
| Focal Length | 8 mm |
| Lens Cap | Half-polarized lens cap by default. Transparent or fully-polarized lens cap is optional. |
| Light Source | Focused white light by default. Red, blue, IR, or UV light is optional. |
| Aiming System | 2 LEDs |
| Indicator | 360° visual indicator |
| Dimension | Straight angle: 80.1 mm × 43 mm × 43.5 mm (3.2" × 1.7" × 1.7") Right angle: 58.5 mm × 43 mm × 64.6 mm (2.3" × 1.7" × 2.5") |
| Weight | Approx. 190 g (0.4 lb.) |
| Ingress Protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration Resistance | Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock Resistance | Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client Software | SCMVS |
| Certification | CE, KC |
| Power Consumption 2 | Avg.: 6.6 W @ 24 VDC (light source enabled) Max.: 22 W @ 24 VDC (light source enabled) |
