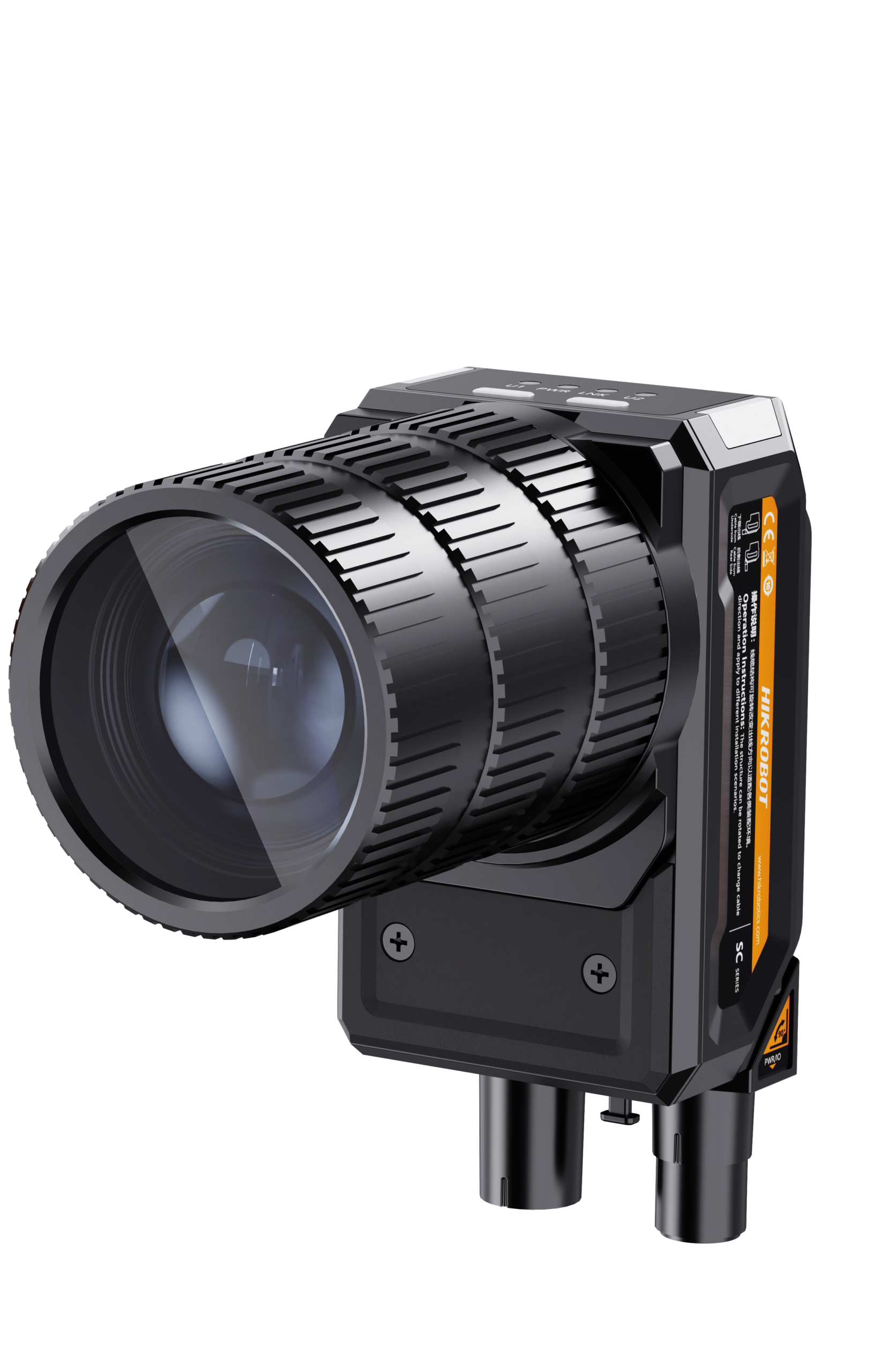

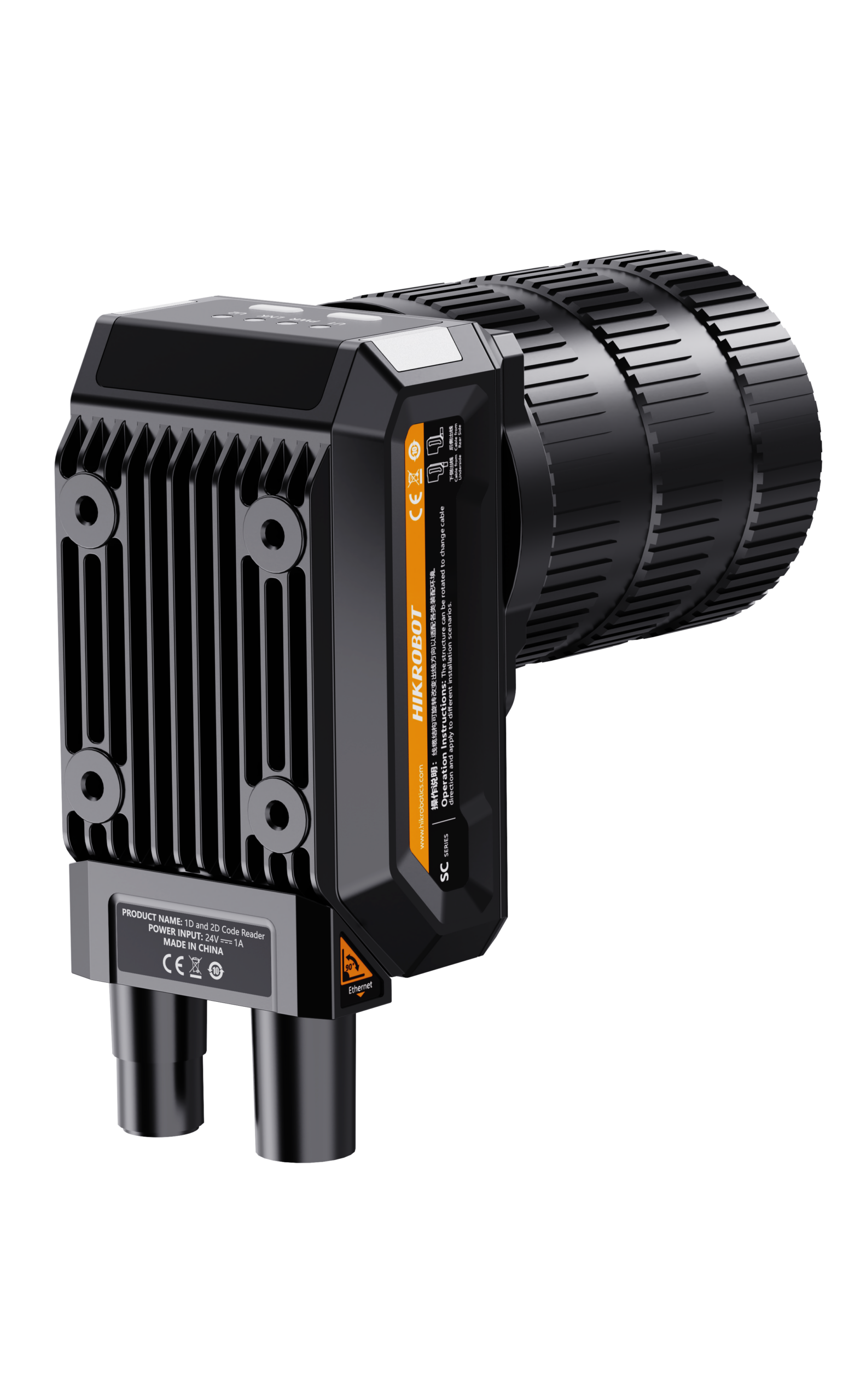

SC5000X series Smart Camera，10MP，Color, C-Mount
Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc.
- AI deep learning handles OCR, object recognition, defect detection, and more.
- Integrates VM functions with a library of over 140 algorithms.
- Multiple I/O interfaces handle a range of input and output signals.
- Supports a range of communication protocols.
- Status indicators simplify debugging and maintenance.
- Rated IP67 against dust and water.
Camera Solutions
SC5000X series Smart Camera, 10MP, Color, C-Mount is a smart camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-SC5100XC-00C-NNN. Key data: resolution 4096 × 2816, max frame rate 10 fps, data interface Gigabit Ethernet (1000 Mbit/s), memory 8 GB. Typical use is stand-alone inspection and identification directly at the line. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Integrates VM functions with a library of over 140 algorithms. Multiple I/O interfaces handle a range of input and output signals. Supports a range of communication protocols. Status indicators simplify debugging and maintenance. Rated IP67 against dust and water.
Product Highlights
AI deep learning handles OCR, object recognition, defect detection, and more. — Integrates VM functions with a library of over 140 algorithms. — Multiple I/O interfaces handle a range of input and output signals. — Supports a range of communication protocols. — Status indicators simplify debugging and maintenance. — Rated IP67 against dust and water.
Specifications
| Product Model | MV-SC5100XC-00C-NNN |
|---|---|
| Type | SC5000X series Smart Camera，10MP，Color, C-Mount |
| Communication Protocol | TCP, UDP, Modbus, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc. |
| Sensor Type | CMOS, rolling shutter |
| Pixel Size | 2 μm × 2 μm |
| Sensor Size | 1/1.8" |
| Resolution | 4096 × 2816 |
| Max Frame Rate | 10 fps |
| Gain | 0 dB to 37 dB |
| Exposure Time | 33 μs to 150 ms |
| Pixel Format | Mono 8, RGB 8 |
| Mono Color | Color |
| Data Interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input × 3 (Line 0/1/2), opto-isolated output × 3 (Line 3/4/5), RS-232 × 1 |
| Power Supply | 24 VDC |
| Power Consumption | Avg. 10 W @ 24 VDC Max. 14.4 W @ 24 VDC |
| Lens Mount | C-mount |
| Lens Cap | Transparent lens cap |
| Light Source | Not included |
| Indicator | Power indicator (PWR), network indicator (LNK), and user-defined indicator (U1/U2) |
| Dimension | Straight angle: 112.3 mm × 54 mm × 110 mm (4.4" × 2.1" × 4.3") Right angle: 88.7 mm × 54 mm × 110 mm (3.5" × 2.1" × 4.3") |
| Weight | Approx. 370 g (0.8 lb.) |
| Ingress Protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration Resistance | Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)* |
| Shock Resistance | Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)* |
| Certification | CE, KC |
| Function Module | Vision Master Platform (include deep learning module) |
| Memory | 8 GB |
| Storage | 64 GB |
