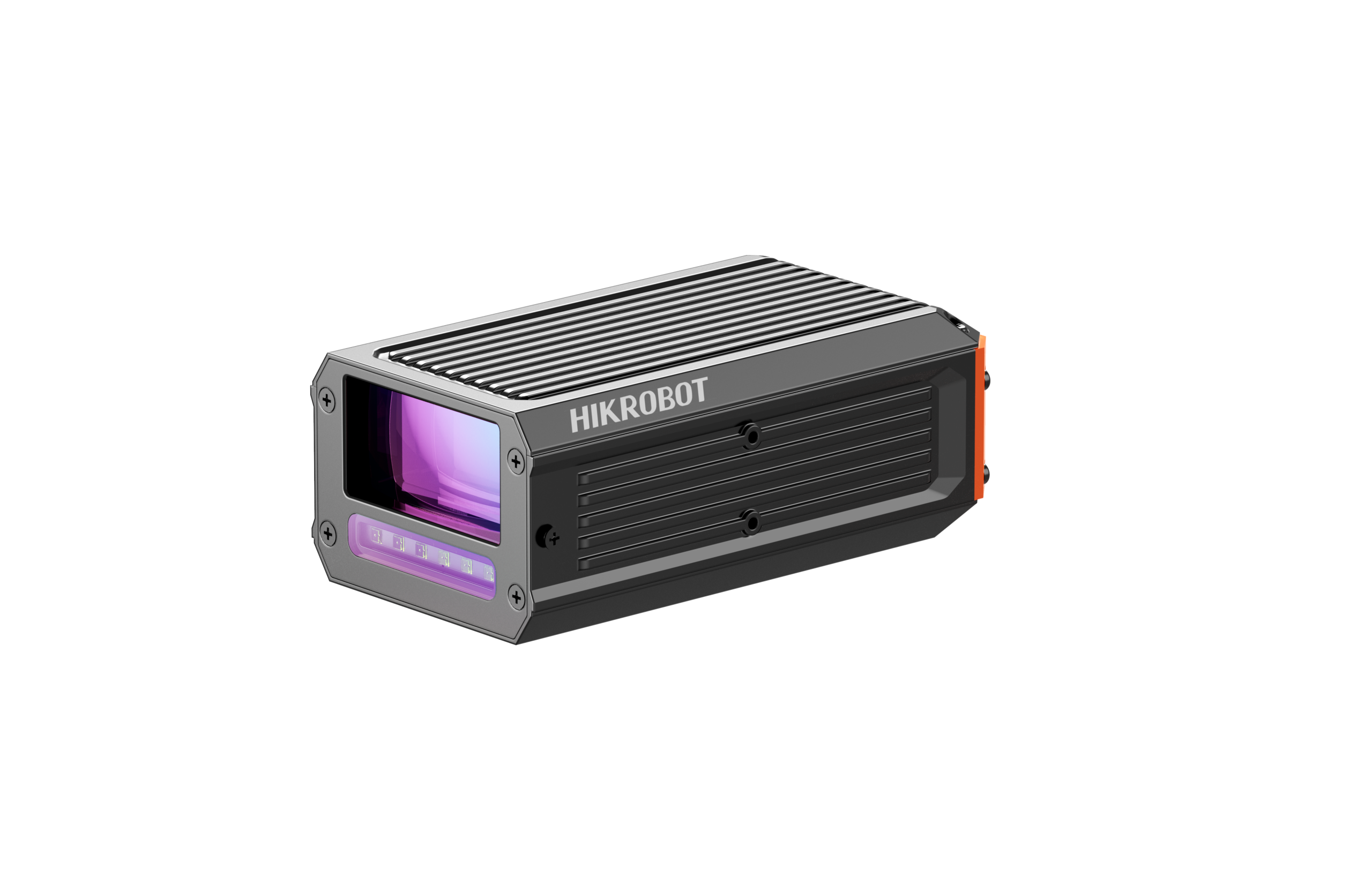

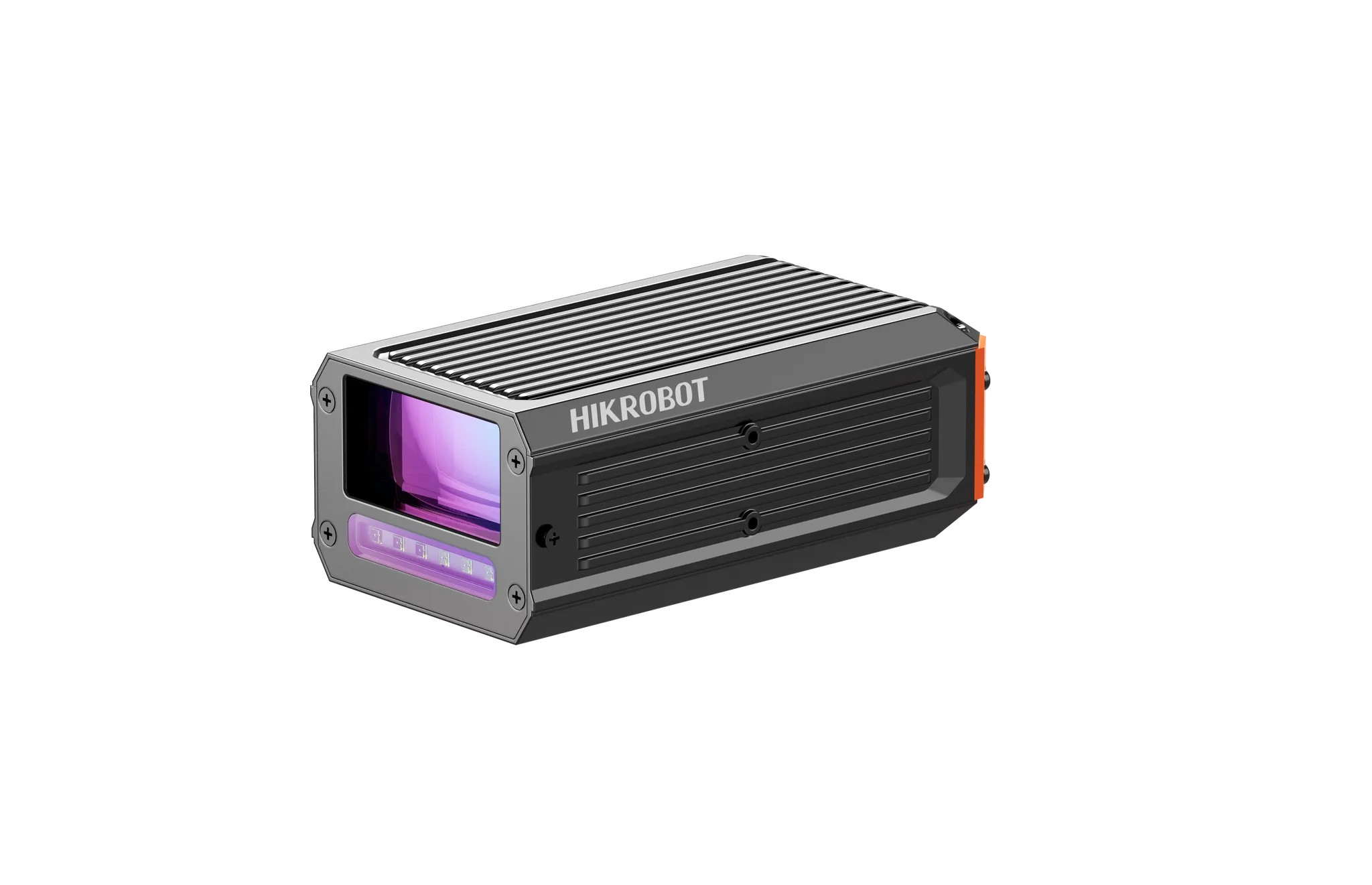

SC6500P Wafer ID Reader，Mono，Combined IR light source
Adopts AI algorithm to recognize wafer ID information.
- AI algorithm reads wafer ID information.
- Advanced optical imaging with multiple lighting methods.
- Integrates VM functions with a library of over 140 algorithms.
- A high-performance CPU delivers fast, efficient processing.
- Supports a range of communication protocols.
- Status indicators simplify debugging and maintenance.
Camera Solutions
SC6500P Wafer ID Reader, Mono, Combined IR light source is a smart camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-SC6500P-AI-WID-IBN. Key data: resolution 1408 × 576, max frame rate 120 fps, data interface Gigabit Ethernet (1000 Mbit/s), memory 8 GB. Typical use is stand-alone inspection and identification directly at the line. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Advanced optical imaging with multiple lighting methods. Integrates VM functions with a library of over 140 algorithms. A high-performance CPU delivers fast, efficient processing. Supports a range of communication protocols. Status indicators simplify debugging and maintenance.
Product Highlights
AI algorithm reads wafer ID information. — Advanced optical imaging with multiple lighting methods. — Integrates VM functions with a library of over 140 algorithms. — A high-performance CPU delivers fast, efficient processing. — Supports a range of communication protocols. — Status indicators simplify debugging and maintenance.
Specifications
| Product Model | MV-SC6500P-AI-WID-IBN |
|---|---|
| Type | SC6500P Wafer ID Reader，Mono，Combined IR light source |
| Communication Protocol | TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc. |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/3.4" |
| Resolution | 1408 × 576 |
| Max Frame Rate | 120 fps |
| Gain | 0 dB to 37 dB |
| Exposure Time | 25 μs to 1 sec |
| Pixel Format | Mono 8 |
| Mono Color | Mono |
| Data Interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including non-isolated input × 1, non-isolated output × 1, and RS-232 × 1 |
| Power Supply | 24 VDC |
| Power Consumption | Avg. 11.5 W @ 24 VDC Max. 18 W @ 24 VDC |
| Lens Mount | M12-mount |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (SYS) |
| Dimension | 127 mm × 69 mm × 49 mm (5" × 2.7" × 1.9") |
| Weight | Approx. 829 g (1.8 lb.) |
| Ingress Protection | IP40 |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration Resistance | Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock Resistance | Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Certification | CE, KC |
| Function Module | Vision Master Platform (include deep learning module) and SCClient |
| Memory | 8 GB |
| Storage | 64 GB |
| Algorithm Capability | SEMI OCR character, data matrix code, QR code, and barcode |
| LED | NIR light |
| Lighting Method | Multiple lighting methods (bright field lighting and dark field lighting) |
| Illumination Intensity | Configure in software |
| Focus Mode | Auto |
| Installation Height | 40 mm to 50 mm (recommended) |
| Field Of View Range 2 | 38 mm × 15 mm |
| Depth Of Field | ± 5 mm |
