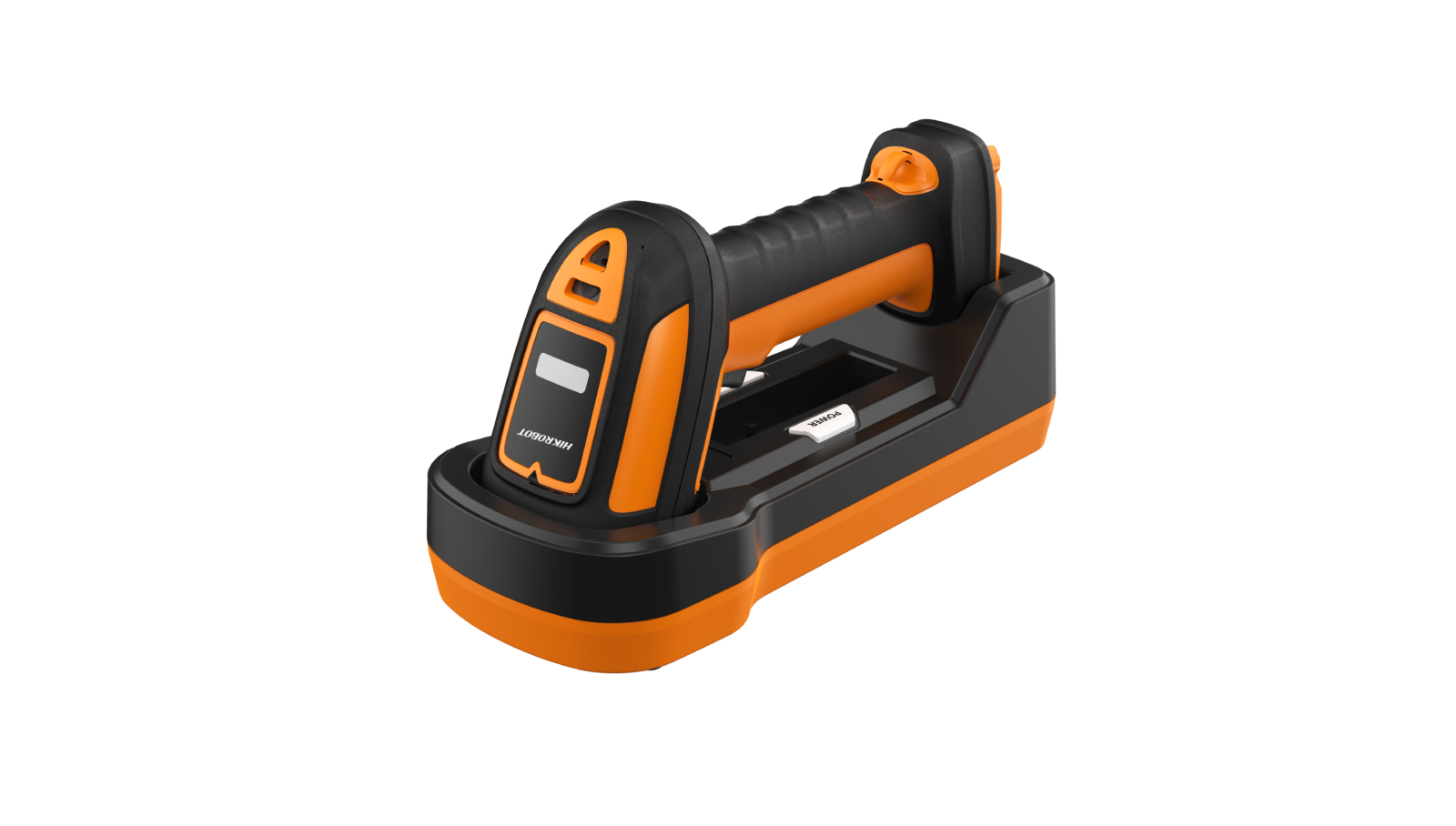

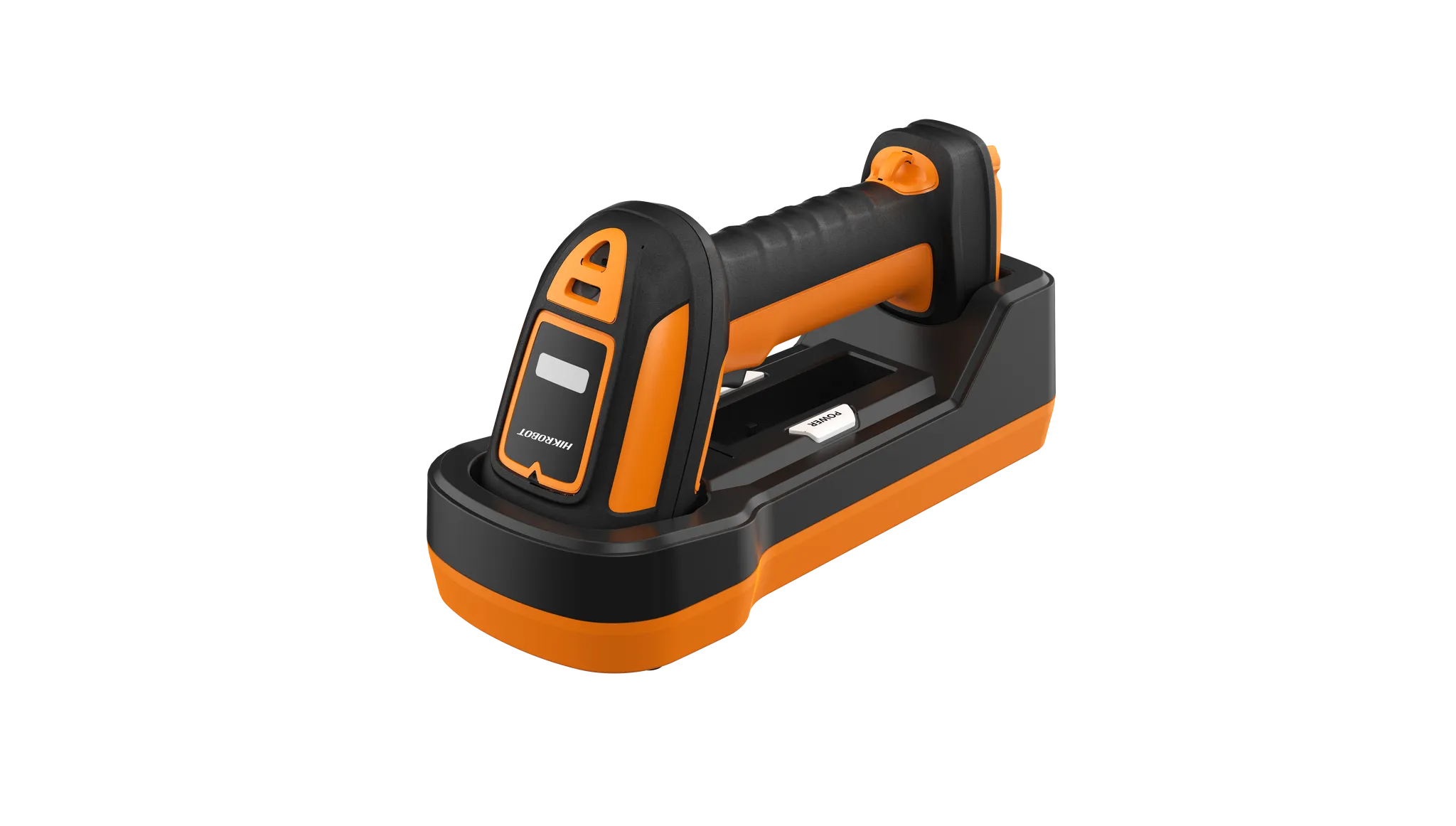

Ultra-Rugged Wireless Handheld Code Reader（USB）

Name: Ultra-Rugged Wireless Handheld Code Reader (USB)
Brand: HIKROBOT
SKU: MV-IDH7000B/10ER/12RN/US

Built-in code reading algorithm for decoding different types of 1D and 2D codes.

Send inquiry

Download datasheet (PDF)

Highlights

A built-in algorithm decodes a range of 1D and 2D codes.
Reads reliably even with spots, defects, or low contrast.
Bluetooth 5.0 enables convenient wireless operation.
Smart bases allow parameter setup and device management through the IDMVS client software.
A 3150 mAh battery delivers long operating time.
Its illumination system offers both direct and diffuse-reflection lighting.
Rated IP65 and survives a 2.0 m drop.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-IDH7000B/10ER/12RN/US Category: Handheld Code Reader

Ultra-Rugged Wireless Handheld Code Reader（USB） is a handheld code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-IDH7000B/10ER/12RN/US. Key data: min accuracy 10 mil, communication mode Bluetooth BT 5.0, BLE, ingress protection IP40, battery 3150 mAh. Typical use is manual scanning in production, warehouse and service. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Reads reliably even with spots, defects, or low contrast. Bluetooth 5.0 enables convenient wireless operation. Smart bases allow parameter setup and device management through the IDMVS client software. A 3150 mAh battery delivers long operating time. Its illumination system offers both direct and diffuse-reflection lighting. Rated IP65 and survives a 2.0 m drop.

Ultra-Rugged Wireless Handheld Code Reader（USB） (MV-IDH7000B/10ER/12RN/US) at a glance: 1280 × 800 resolution, IP40 protection and weighs 410 g (0.9 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

A built-in algorithm decodes a range of 1D and 2D codes. — Reads reliably even with spots, defects, or low contrast. — Bluetooth 5.0 enables convenient wireless operation. — Smart bases allow parameter setup and device management through the IDMVS client software. — A 3150 mAh battery delivers long operating time. — Its illumination system offers both direct and diffuse-reflection lighting. — Rated IP65 and survives a 2.0 m drop.

Specifications

Product Model	MV-IDH7000B/10ER/12RN/US
Type	Ultra-Rugged Wireless Handheld Code Reader（USB）
Symbologies	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin Stacked code: PDF417
Min Accuracy	10 mil
Sensor Type	CMOS
Resolution	1280 × 800
Depth Of Field	Code 39 (10 mil): 540 mm to 1200 mm Code 39 (20 mil): * mm to 2800 mm2 Code 39 (50 mil): * mm to 5200 mm2 Code 39 (100 mil): * to 6800 mm2 Code 128 (10 mil): 650 mm to 1000 mm Code 128 (20 mil): * mm to 2800 mm2 Code 128 (100 mil): * mm to 6800 mm2 Data Matrix (50 mil): * mm to 4000 mm2 QR Code (20 mil): 600 mm to 1600 mm QR Code (33 mil): 250 mm to 2600 mm QR Code (100 mil): * to 6500 mm2
Field Of View	Horizontal 18°, vertical 10°
Detection Angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol Contrast	20%
Communication Protocol	SmartSDK, USB (HID/CDC), Bluetooth
Data Interface	USB 2.0, RS-232, DC terminal3
Power Supply	USB: 5 VDC DC terminal: 12 VDC
Current Consumption	USB 2.0: 1.5 A (max.), 0.14 A (during standby) DC terminal: 0.7 A (max.), 0.06 A (during standby)
Focal Length	12 mm
Ambient Illumination	0 lux to 100000 lux
Light Source	Direct lighting: white LED Diffused reflection lighting: red LED
Aiming System	Point laser aiming
Prompt	LED indicator, buzzer, vibrator
Dimension	73.4 mm × 104 mm × 215.2 mm (2.9" × 4.1" × 8.5")
Weight	Approx. 410 g (0.9 lb.)
Ingress Protection	IP40
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity	20% RH to 95% RH (no condensation)
Laser Safety Class	Laser 2
Wavelength	650 nm
Pulse Width	8 ms
Maximum Power	1 mW
Client Software	IDMVS
Certification	CE, KC
Communication Mode	Bluetooth BT 5.0, BLE
Wireless Range	100 m (open range)
Battery	3150 mAh
Charging Time	Adapter: 4 h, USB: 8 h
Endurance	13 h (interval scanning, once in 2 seconds)
Drop Height	2.0 m
