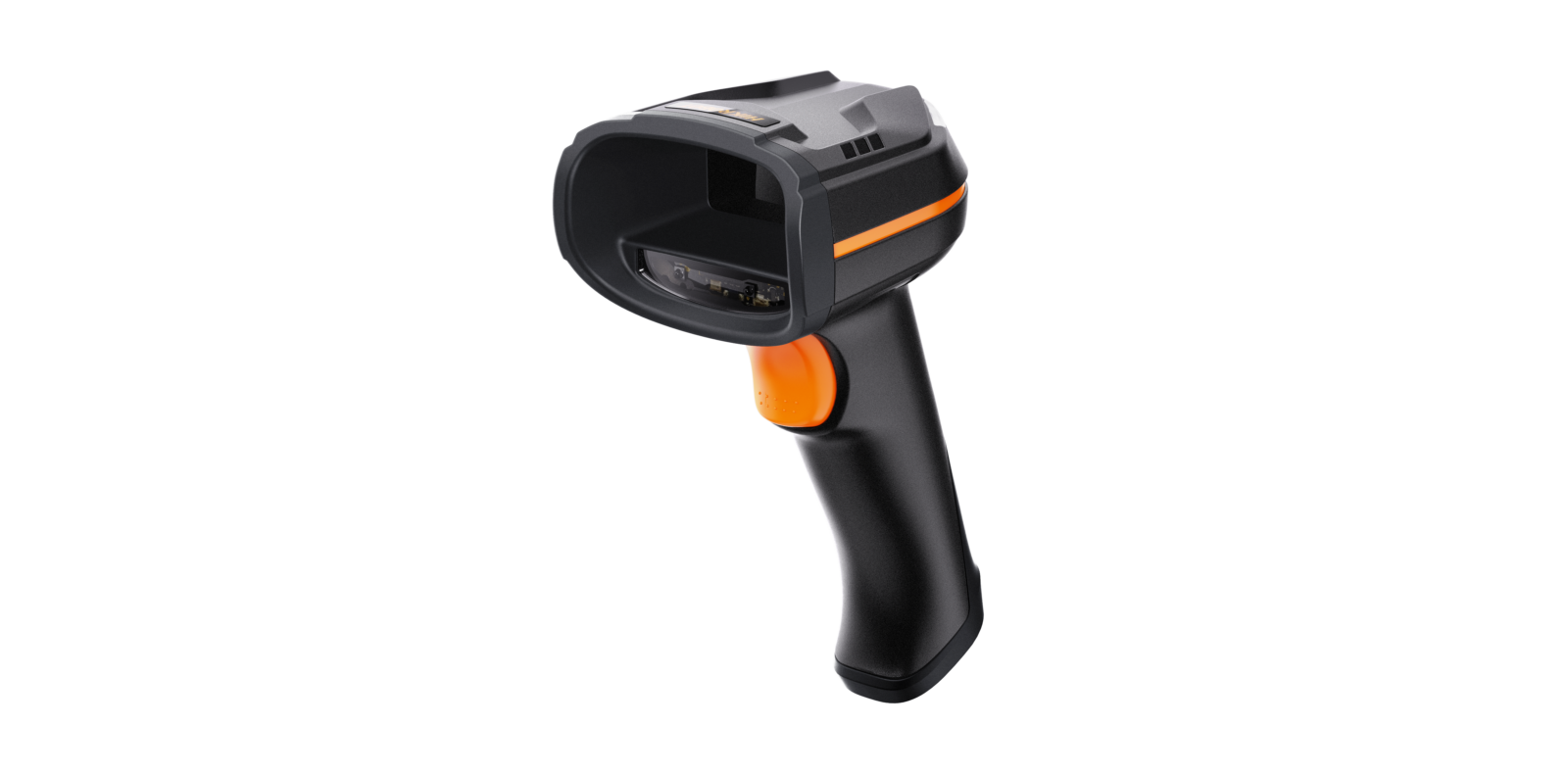

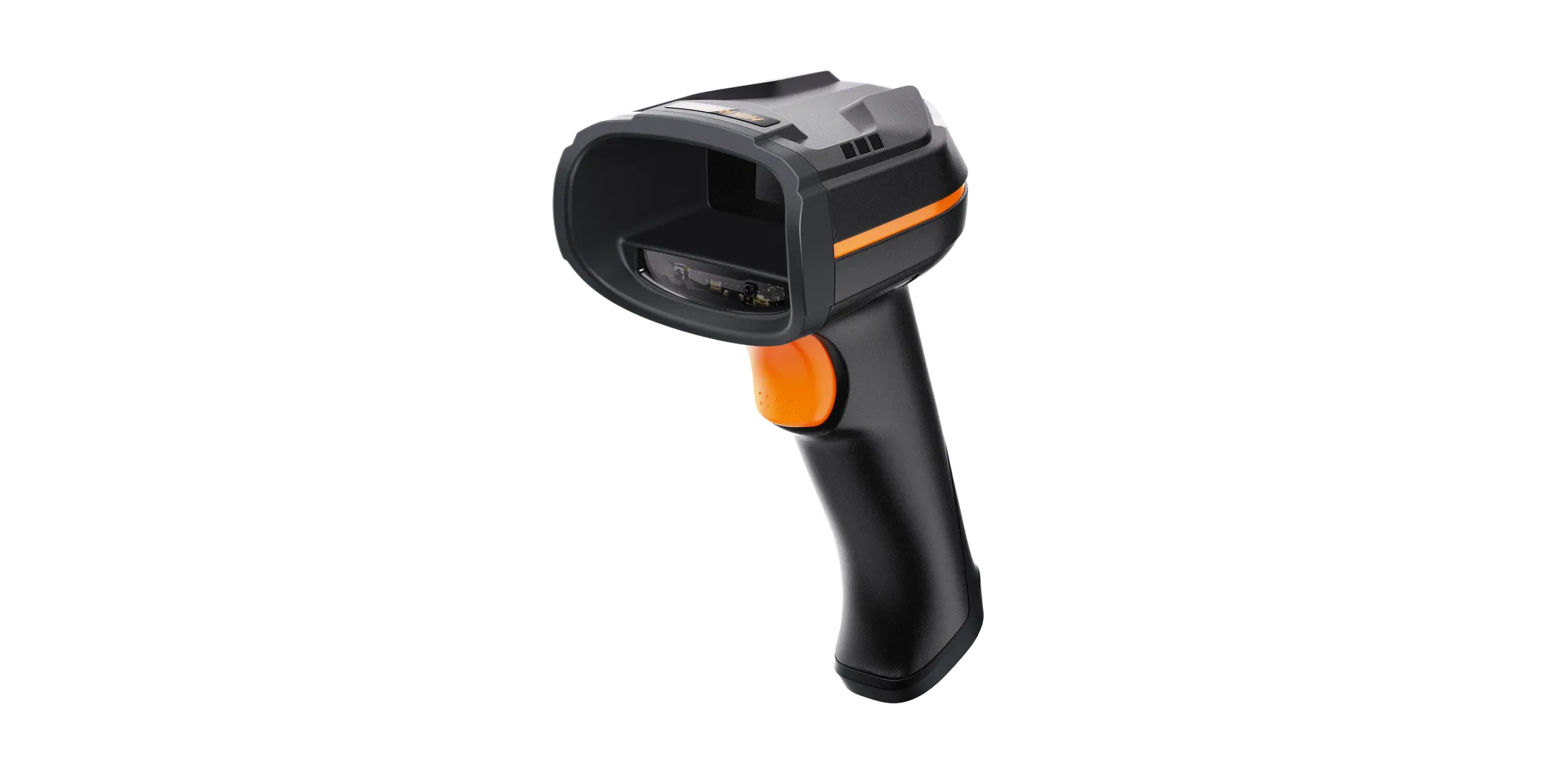

Wireless Handheld Code Reader （No IBASE）
Built-in code reading algorithm for decoding different types of 1D and 2D codes.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Reads reliably even with spots, defects, or low contrast. Continuous and batch reading modes raise throughput. Bluetooth 5.0 enables convenient wireless operation. Smart bases allow parameter setup and device management through the IDMVS client software.
Product Highlights
A built-in algorithm decodes a range of 1D and 2D codes. — Reads reliably even with spots, defects, or low contrast. — Continuous and batch reading modes raise throughput. — Bluetooth 5.0 enables convenient wireless operation. — Smart bases allow parameter setup and device management through the IDMVS client software.
Specifications
| Product Model | MV-IDH3000B/13SR/05RN |
|---|---|
| Type | Wireless Handheld Code Reader （No IBASE） |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, GS1-DM, GS1-QR, Han Xin Stacked code: PDF417 |
| Min Accuracy | 4 mil |
| Sensor Type | CMOS |
| Resolution | 1280 × 1024 |
| Depth Of Field | Code 39 (5 mil): 40 mm to 160 mm Code 128 (10 mil): 10 mm to 400 mm Data Matrix (10 mil): 30 mm to 200 mm QR Code (15 mil): 15 mm to 280 mm QR Code (20 mil): 20 mm to 370 mm |
| Field Of View | Horizontal 40°, vertical 34° |
| Detection Angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol Contrast | 20% |
| Communication Protocol | Network-interface device: SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial (RS-232), Bluetooth USB-interface device: SmartSDK, USB (HID/CDC), Bluetooth, Serial (RS-232) |
| Data Interface | Network-interface device: Fast Ethernet (100 Mbit/s), RS-232, DC terminal USB-interface device: USB 2.0, USB 3.0, RS-232, DC terminal1 |
| Power Supply | Network-interface device: 12 VDC to 24 VDC USB-interface device: USB: 5 VDC, DC terminal: 12 VDC to 24VDC |
| Current Consumption | Network-interface device: 0.7 A (max.), 0.06 A (during standby) USB-interface device: USB 2.0: 1.5 A (max.), 0.14 A (during standby); DC terminal: 0.7 A (max.), 0.06 A (during standby) |
| Focal Length | 4.7 mm |
| Ambient Illumination | 0 lux to 100000 lux |
| Light Source | Red LED |
| Aiming System | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3") |
| Weight | Approx. 180 g (0.4 lb.) |
| Ingress Protection | IP40 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Laser Safety Class | Laser 2 |
| Wavelength | 650 nm |
| Pulse Width | 8 ms |
| Maximum Power | 1 mW |
| Client Software | IDMVS |
| Certification | CE, KC |
| Communication Mode | Bluetooth BT 5.0, BLE |
| Wireless Range | 100 m (open range) |
| Battery | 3150 mAh |
| Charging Time | Network-interface device: 4 h USB-interface device: USB: 8.5 h |
| Endurance | 13 h (interval scanning, once in 2 seconds) |
| Drop Height | Dropping: 1.8 m, 50 times Rolling: 0.5 m, 1200 times |
| Static Electricity Resistant | ± 16 kV (air discharge), ± 8 kV (contact discharge) |
