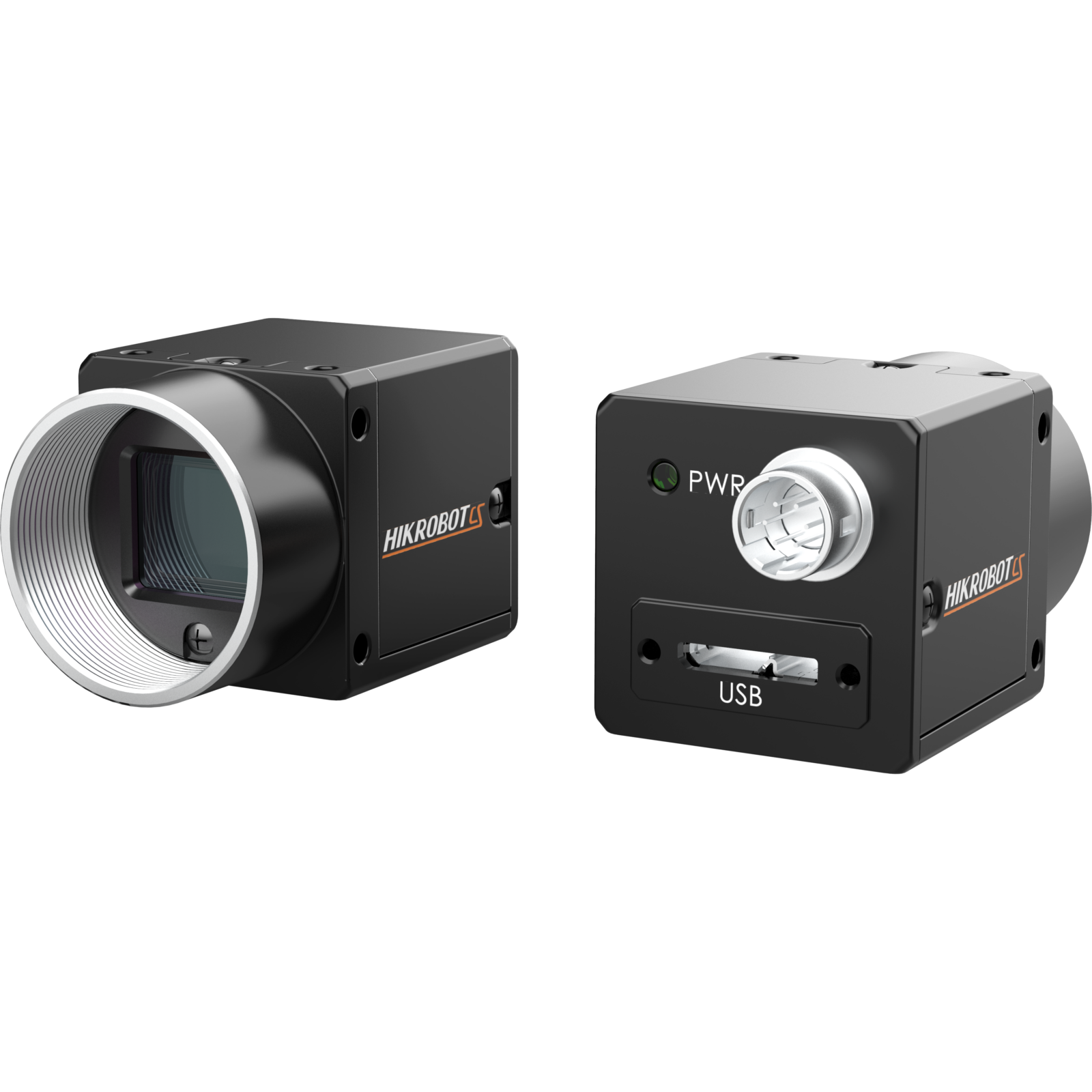

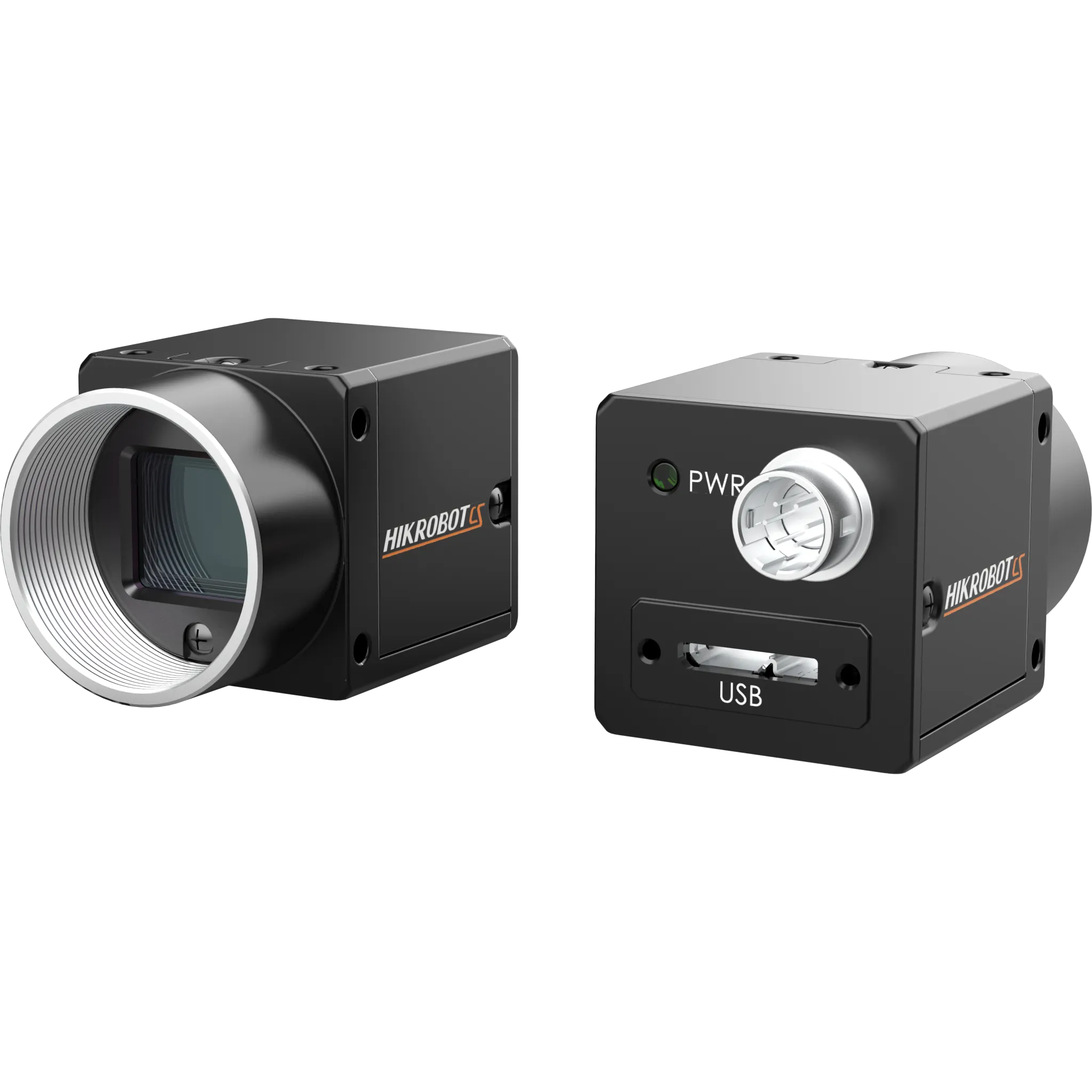

Area Scan Camera, 1.6MP, USB3.0, IMX273, 2nd Gen., Color
Adopts brand new design to reduce power consumption.
- Redesigned for lower power consumption.
- Supports Sequencer, contrast ratio, white balance, and gamma correction.
- Supports hardware trigger, software trigger, and free-run modes.
- Compact body with panel mounting holes on four sides for flexible setup.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 1.6MP, USB3.0, IMX273, 2nd Gen., Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CS016-10UC. Key data: resolution 1440 × 1080, sensor type CMOS, global shutter, max frame rate 249.1 fps @1440 × 1080 Bayer RG 8, data interface USB3.0, compatible with USB2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 1.6MP, GigE, IMX296, Color (MV-CS016-10GC)
- Area Scan Camera, 1.6MP, GigE, IMX296, Mono (MV-CS016-10GM)
- Area Scan Camera, 1.6MP, USB3.0, V5, Color (MV-CS016-10UC V5)
- Area Scan Camera, 1.6MP, USB3.0, IMX273, 2nd Gen., Mono (MV-CS016-10UM)
- Area Scan Camera, 1.6MP, USB3.0, V5, Mono (MV-CS016-10UM V5)
- Area Scan Camera, 1.6MP, GigE, IMX273, 2nd Generation (MV-CS016-11GM)
Description
Supports Sequencer, contrast ratio, white balance, and gamma correction. Supports hardware trigger, software trigger, and free-run modes. Compact body with panel mounting holes on four sides for flexible setup. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Redesigned for lower power consumption. — Supports Sequencer, contrast ratio, white balance, and gamma correction. — Supports hardware trigger, software trigger, and free-run modes. — Compact body with panel mounting holes on four sides for flexible setup. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CS016-10UC |
|---|---|
| Type | Area Scan Camera, 1.6MP, USB3.0, IMX273, 2nd Gen., Color |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX273 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/2.9" |
| Resolution | 1440 × 1080 |
| Max Frame Rate | 249.1 fps @1440 × 1080 Bayer RG 8 |
| Dynamic Range | 71.1 dB |
| SNR | 40 dB |
| Gain | 0 dB to 17 dB |
| Exposure Time | UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 12 VDC to 24 VDC, supports USB3.0 power supply |
| Lens Mount | C-Mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.18 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Mono | Color |
| Power Consumption 2 | Typ. 3.3 W@5 VDC (USB3.0 provides power supply) |
