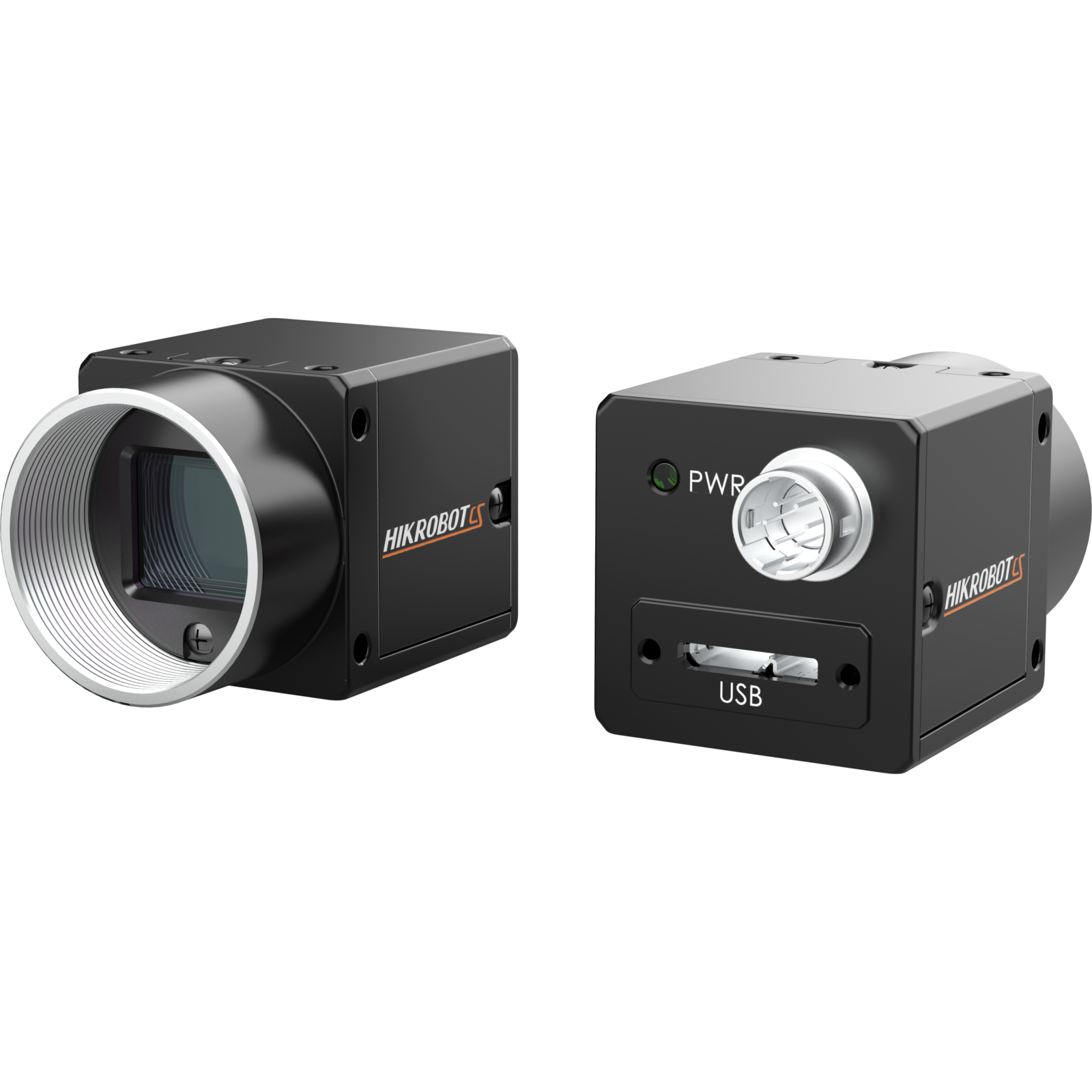

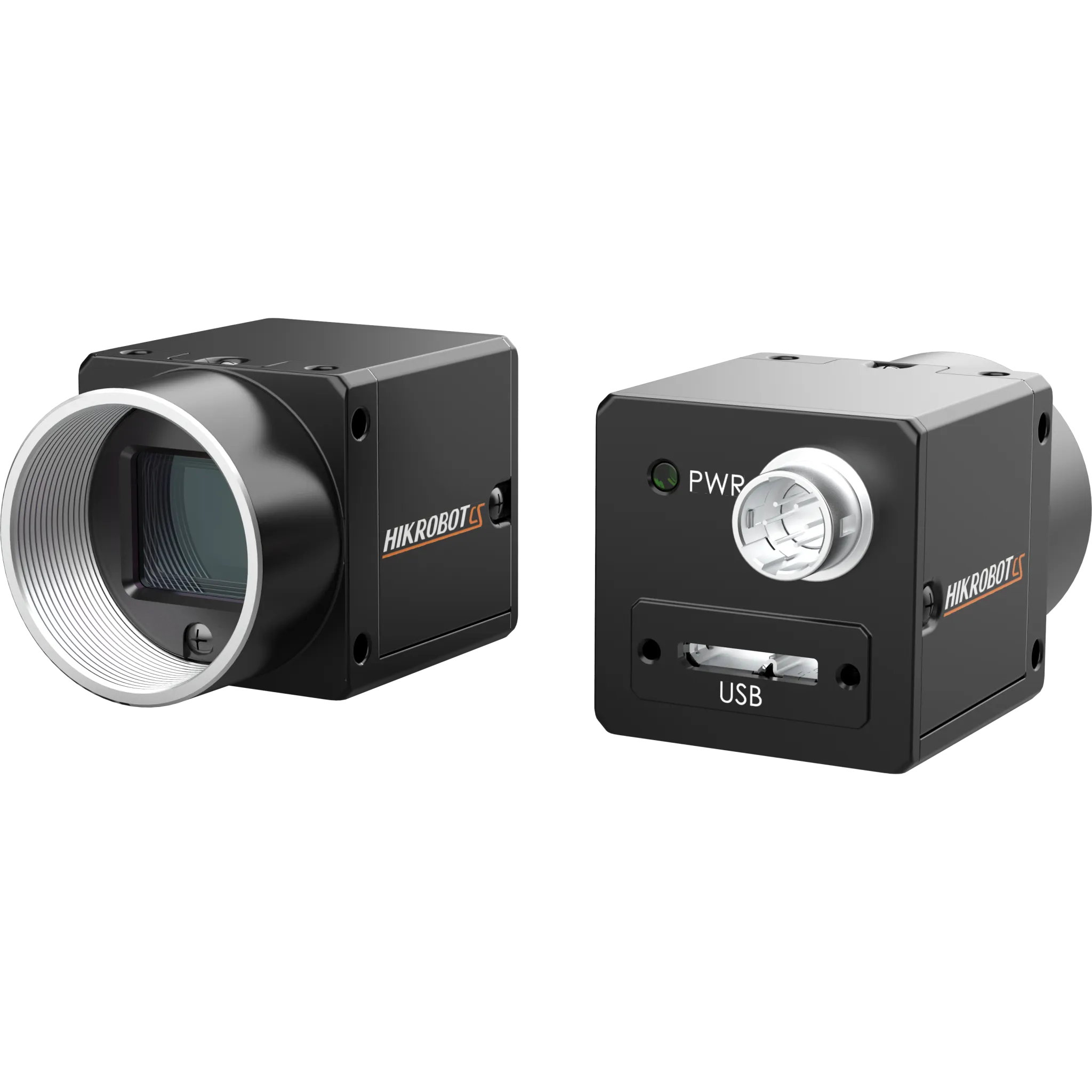

Area Scan Camera, 1.6MP, USB3.0, V5, Mono
Adopts brand new design to reduce power consumption.
- Redesigned for lower power consumption.
- Supports Sequencer, contrast ratio, white balance, and gamma correction.
- Supports hardware trigger, software trigger, and free-run modes.
- Compact body with panel mounting holes on four sides for flexible setup.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 1.6MP, USB3.0, V5, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CS016-10UM V5. Key data: resolution 1440 × 1080, sensor type CMOS, global shutter, max frame rate 249.1 fps @ 1440 × 1080 Mono 8, data interface USB3.0, compatible with USB2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 1.6MP, GigE, IMX296, Color (MV-CS016-10GC)
- Area Scan Camera, 1.6MP, GigE, IMX296, Mono (MV-CS016-10GM)
- Area Scan Camera, 1.6MP, USB3.0, IMX273, 2nd Gen., Color (MV-CS016-10UC)
- Area Scan Camera, 1.6MP, USB3.0, V5, Color (MV-CS016-10UC V5)
- Area Scan Camera, 1.6MP, USB3.0, IMX273, 2nd Gen., Mono (MV-CS016-10UM)
- Area Scan Camera, 1.6MP, GigE, IMX273, 2nd Generation (MV-CS016-11GM)
Description
Supports Sequencer, contrast ratio, white balance, and gamma correction. Supports hardware trigger, software trigger, and free-run modes. Compact body with panel mounting holes on four sides for flexible setup. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Redesigned for lower power consumption. — Supports Sequencer, contrast ratio, white balance, and gamma correction. — Supports hardware trigger, software trigger, and free-run modes. — Compact body with panel mounting holes on four sides for flexible setup. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CS016-10UM V5 |
|---|---|
| Type | Area Scan Camera, 1.6MP, USB3.0, V5, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX273 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/2.9" |
| Resolution | 1440 × 1080 |
| Max Frame Rate | 249.1 fps @ 1440 × 1080 Mono 8 |
| Dynamic Range | 70.8 dB |
| SNR | 39.8 dB |
| Gain | 0 dB to 17 dB |
| Exposure Time | UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.18 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3.0 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 1.7 W @ 5 VDC (USB3.0 provides power supply) |
| Quantum Efficiency | 60.00 % |
| Dark Noise | 2.1 e- @ 12 bit |
| Saturation Capacity | 9.5 ke- |
