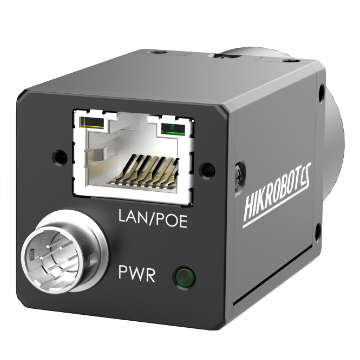

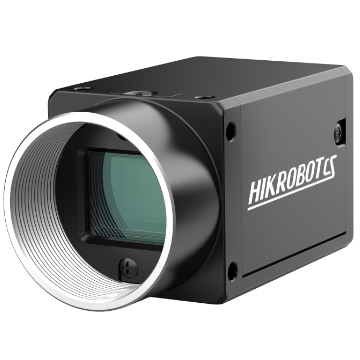

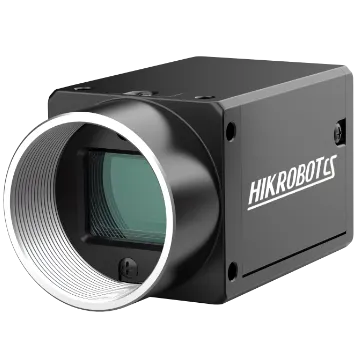

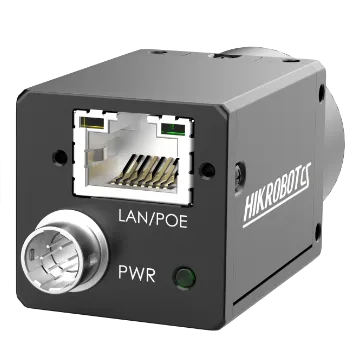

Area Scan Camera, 1.6MP, GigE, IMX273, 2nd Generation
Adopts brand new design to reduce power consumption.
- Redesigned for lower power consumption.
- Offers auto or manual gain, exposure, white balance, LUT, and gamma correction.
- Connects via GigE, with cable runs up to 100 m and no repeater required.
- Compact body with panel mounting holes on four sides for flexible setup.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Area Scan Camera, 1.6MP, GigE, IMX273, 2nd Generation is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CS016-11GM. Key data: resolution 1440 × 1080, sensor type CMOS, global shutter, max frame rate 78.2 fps @ 1440 × 1080 Mono 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 1.6MP, GigE, IMX296, Color (MV-CS016-10GC)
- Area Scan Camera, 1.6MP, GigE, IMX296, Mono (MV-CS016-10GM)
- Area Scan Camera, 1.6MP, USB3.0, IMX273, 2nd Gen., Color (MV-CS016-10UC)
- Area Scan Camera, 1.6MP, USB3.0, V5, Color (MV-CS016-10UC V5)
- Area Scan Camera, 1.6MP, USB3.0, IMX273, 2nd Gen., Mono (MV-CS016-10UM)
- Area Scan Camera, 1.6MP, USB3.0, V5, Mono (MV-CS016-10UM V5)
Description
Offers auto or manual gain, exposure, white balance, LUT, and gamma correction. Connects via GigE, with cable runs up to 100 m and no repeater required. Compact body with panel mounting holes on four sides for flexible setup. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Redesigned for lower power consumption. — Offers auto or manual gain, exposure, white balance, LUT, and gamma correction. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Compact body with panel mounting holes on four sides for flexible setup. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CS016-11GM |
|---|---|
| Type | Area Scan Camera, 1.6MP, GigE, IMX273, 2nd Generation |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX273 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/2.9" |
| Resolution | 1440 × 1080 |
| Max Frame Rate | 78.2 fps @ 1440 × 1080 Mono 8 |
| Dynamic Range | 74 dB |
| SNR | 41 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 100 g (0.22 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Mono | Mono |
| Power Consumption 2 | Typ. 2.3 W @ 12 VDC |
