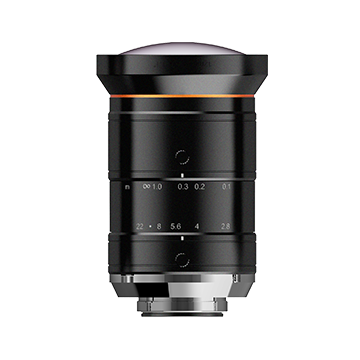

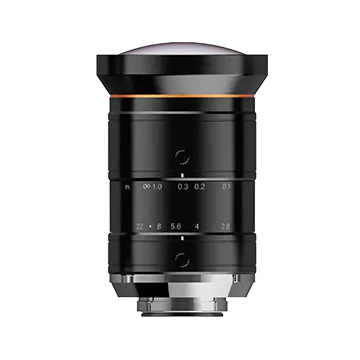

C-Mount Lens, 12mm, F2.8, 1.1″, 12MP
Ultra high resolution and consistency of image clarity
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Low distortion. High peripheral brightness ratio. Optical properties are maintained across different object distances.
Product Highlights
Ultra-high resolution with consistent image clarity. — Low distortion. — High peripheral brightness ratio. — Optical properties are maintained across different object distances.
Specifications
| Product Model | MVL-KF1228M-12MPE |
|---|---|
| Type | C-Mount Lens, 12mm, F2.8, 1.1″, 12MP |
| Focal Length | 12 mm |
| F Number | F2.8 to F22 |
| Image Size | Ø17.6 mm (1.1") |
| Distortion | 1.5% |
| Minimum Object Distance | 0.1 m |
| Field Of View | D (17.52 mm): 66.7° H (14.14 mm): 57° V (10.35 mm): 45° |
| Iris Control | Manual |
| Focus Control | Manual |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø48 mm × 71.32 mm (Ø1.9" x 2.8") |
| Weight | 245 g (0.5 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
