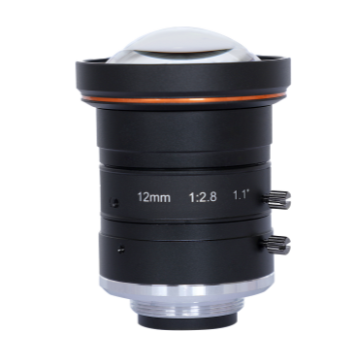

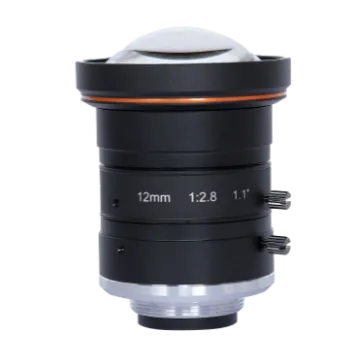

C-Mount Lens, 12mm, F2.8, 1.1″, 12MP
High resolution, high definition of the whole image
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Low distortion and high relative illumination. Maximum image circle of 1.1″. Ultra-short working distance with stable optical properties across object distances.
Product Highlights
High resolution with consistent full-image sharpness. — Low distortion and high relative illumination. — Maximum image circle of 1.1″. — Ultra-short working distance with stable optical properties across object distances.
Specifications
| Product Model | MVL-KF1228M-12MP |
|---|---|
| Type | C-Mount Lens, 12mm, F2.8, 1.1″, 12MP |
| Focal Length | 12 mm |
| F Number | F2.8 to F16 |
| Image Size | Ø17.6 mm |
| Minimum Object Distance | 0.1 m |
| Field Of View | D (17.52mm): 70.5° H (14.14mm): 59.8° V (10.35mm): 46.2° |
| Iris Control | Manual |
| Focus Control | Manual |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø47 mm × 56.99 mm (Ø1.9" × 2.2") |
| Weight | 186 g (0.4 lb.) |
| Temperature | –10°C to 50°C (14°F to 122°F) |
| Certification | RoHS 2.0 |
| Optical Distortion | –1.79% |
