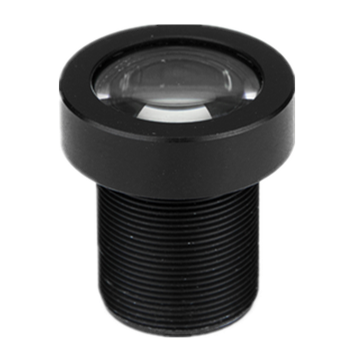

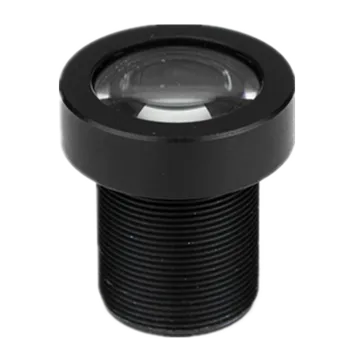

M12-Mount Lens, 12mm, F2.8, 1/1.8″, 5MP
Optimization design for machine vision
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
High resolution with consistent image clarity. Low distortion and high relative illumination. S-Mount (M12 × 0.5) for easy system integration.
Product Highlights
Optimised design for machine vision. — High resolution with consistent image clarity. — Low distortion and high relative illumination. — S-Mount (M12 × 0.5) for easy system integration.
Specifications
| Product Model | MVL-HF1228-05S |
|---|---|
| Type | M12-Mount Lens, 12mm, F2.8, 1/1.8″, 5MP |
| Focal Length | 12 mm |
| Mount | S-Mount |
| Dimension | Φ15.4 mm × 19.46 mm |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Field Of View 2 | D(8.86 mm):41° H(7.37 mm):34° V(4.91 mm):23° |
| F Number 2 | F2.8 |
| Image Size 2 | Φ9 mm(1/1.8'') |
| Working Distance Range 2 | 100 ~ 850 mm |
| Tv Distortion 2 | <0.2% |
| TTL | 25.4 ~ 26.9 mm |
